- Page 1 FACTORY AUTOMATION MANUAL DAD10-8P OPTICAL DATA COUPLER...
- Page 2 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
-
Page 3: Table Of Contents
DAD10-8P Optical data coupler Introduction ................4 Warranty ................... 4 Declaration of Conformity ............5 Safety ..................6 Symbols used ................... 6 General safety instructions ............... 6 Product description ..............7 Technical Description ............... 7 Action on light beam interruption: ............. 7 Switching off the transmitter: ............ -
Page 4: Introduction
Warranty Pepperl+Fuchs manufactures its hardware products according to recognized industrial standards. Pepperl+Fuchs guarantees its products to be free of defects in material and workmanship provided the products are used under the normal operating conditions specified by the manufacturer. The warranty applies only to the original owner and is not transferable. -
Page 5: Declaration Of Conformity
Pepperl+Fuchs shall in no event be liable for consequential damages, concrete and indirect damages, secondary damages or penalties, or lost profits, sales, or loss of data, even if Pepperl+Fuchs had been made aware of this possibility. -
Page 6: Safety
Use only recommended original accessories. If you are unable to eliminate malfunctions, take the device out of operation. Secure the device against accidental operation. Return the device to Pepperl+Fuchs for repair. Own interventions and modifications are potentially hazardous, and any guarantee and man- ufacturer's liability shall become void. -
Page 7: Product Description

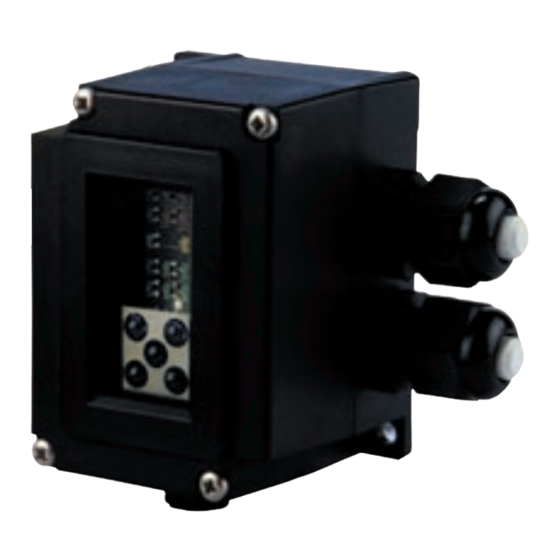

DAD10-8P Optical data coupler Product description Product description Features • Supply Voltage: 10-60 VDC • Range: 0 - 1,5 m. • Sensitivity control • Half Duplex Data transmission • Baud Rate: 2400 • 10 optocoupler inputs • 10 PNP-outputs. • Action of outputs by interrupting the beams is selectable •... -
Page 8: Appendix
DAD10-8P Optical data coupler Appendix In- and Outputs, receiving signals: The inputs of the DAD10-8P are isolated by optocoupler from the other switches. The status of data in- and output is displayed by various LEDs. A high level at the input is in- dicated by a red LED. -
Page 9: Sample Of Input Wiring/ Switchings
DAD10-8P Optical data coupler Appendix Interface type 8 bit parallel, bidirectional inputs: 8 optocoupler Outputs: 8 PNP, not short-circuit proof Output Output of the pre-fault indication 1 PNP (switches if there is sufficient stability control) Switching voltage max. 60 V DC max. -
Page 10: Functional Indications
DAD10-8P Optical data coupler Appendix Functional indications Diagrams DAD10-P Characteristic response curve Relative received light strength DAD10-P Offset Y [mm] Stability control 1000 Distance X [m] Distance X [m]... -
Page 11: Dimensions
DAD10-8P Optical data coupler Appendix Dimensions DAD 10-8P series (PG-screwings at the housing bottom Sensitivity adjuster Pg 9 11.7 20.1 DAD10-8P-SD (with 25-pin Sub-D-socket or connector) - Page 12 DAD10-8P Optical data coupler Appendix DAD10-8P-R (PG-screwings at the housing rear) Fixing angle for DAD10-8P; DAD10-8P-R; DAD10-8P-SD...
-
Page 13: Connection Diagram
DAD10-8P Optical data coupler Appendix Connection diagram Connector with clamps: Version DAD10-8P(/35) and ...-HD... SYNC Reception indicator D8OUT D7OUT D6OUT D5OUT D4OUT D3OUT D2OUT D1OUT n. c. 0VIN *) D8IN D7IN D6IN D5IN D4IN D3IN D2IN D1IN IN Master/Slave IN Enable *) Reference potential for data inputs Connector with 25pin Sub-D-socket or connector Version ...-SDS... -
Page 14: Article Description And Article Numbers To Ease Your Order
DAD10-8P Optical data coupler Appendix Article description and Article numbers to ease your order Article- Article Description Number Complete Device (Electronics + Cable Adapter) DAD10-8P 418610 DAD10-8P-SDB (with 25-pin Sub-D-Socket) 418611 DAD10-8P-R-2388 418612 (with 2 PG9-sealing glands at the housing rear and fixing angle) DAD10-8P-HD (for DIN rail mounting plus 25-pin Sub-D-Socket) 418613 DAD10-8P-R (with 2 PG9-sealing glands at the housing rear) - Page 15 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
