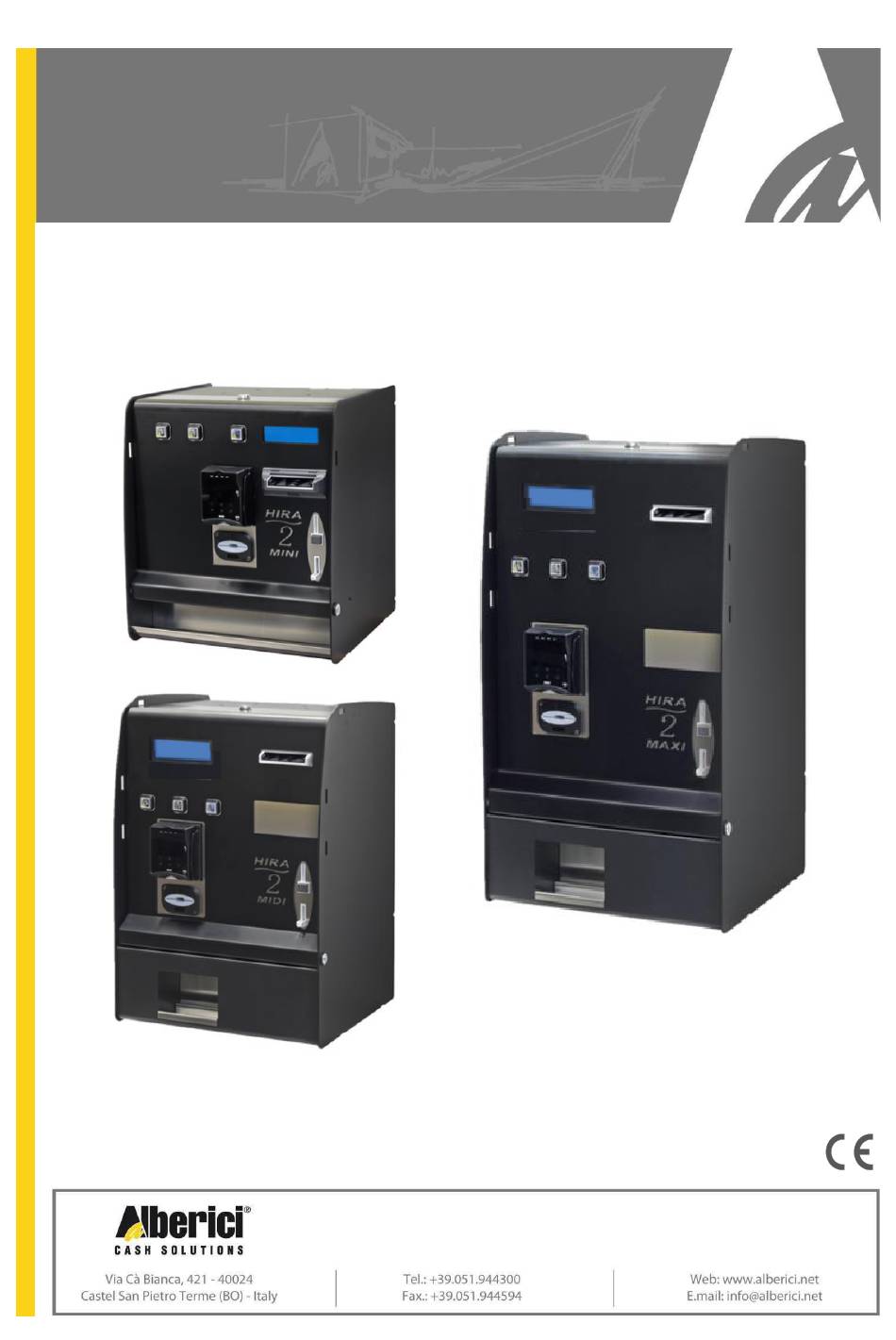

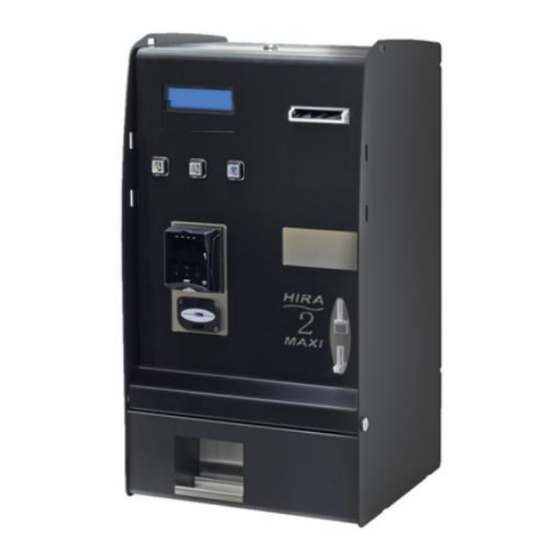

Hira 2 Mini, Midi, Maxi
Operator's Manual
Rev. 201 EN
HIRA 2
Operator's Manual
Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design
and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash
standard display
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hira 2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici Hira 2 Series

Summary of Contents for Alberici Hira 2 Series

  • Page 1 Hira 2 Mini, Midi, Maxi standard display Operator’s Manual Rev. 201 EN HIRA 2 Operator’s Manual Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...

  • Page 3: Table Of Contents

    CONTENTS Package content: .......................... 4 Components description ....................... 4 Product description ........................5 Warning ............................5 Installation ............................ 6 Operation ............................9 System configuration…………………………………………………………………………..11 Messages……………………………………………………………………………………….22 Cleaning of the Note Validator ....................24 11. Disposal of the product ....................... 25 12. Terms of Guarantee ........................25 13.

  • Page 4: Package Content

    Please read carefully this handbook, to obtain the most from your machine. 1. Package content The package contains: 1. the Alberici HIRA 2 / Hira 2 Maxi Change machine 2. 1 pair of keys 3. the power cable (see inside of money box) 4.

  • Page 5: Product Description

    Notice: Euro is the preset currency. If you require a different currency, please request your currency before placing your order. (*) The system requires that the B-to-B Alberici SIM card is inserted into the Hermes module SIM slot, and that a subscription is entered into the ARGO Portal, in order to control the machine via the Internet.

  • Page 6: Installation

    5. Installation PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING RELIABLE EXPANSION BOLTS. IT IS RECOMMENDED THAT YOU MAKE USE OF THE WALL-MOUNT SLAB (ref. HRP-021A-V06 for HIRA 2 Mini, HRM-AM15-V06 for HIRA 2 Midi, HRS-015A-V06 for HIRA 2 Maxi) .
  • Page 7 MOUNT SLABS HRS-015A-V06 for HIRA 2 Maxi Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the  12 wall by sturdy expansion bolts, through the 6 “X” ( 12 mm) holes. Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
  • Page 8 HRP-021A-V06 HIRA 2 M Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the wall by sturdy expansion  12 bolts, through the 6 “X” ( 12 mm) holes. Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...

  • Page 9: Operation

    6. Operation Three buttons are available: “1” and “2” (“SEL-“ and “SEL+” allow the User to choose the coin (or token) denomination he wants back as change; third button allows the user to choose the language he wants on the display (English, French, German, Italian and Dutch are available. Ask before placing order for other languages options).
  • Page 10 POS payments shall only allow to obtain tokens. If the machine is set for dispensing 6.2.2 POS: coins, POS operation will be automatically disabled. POS will be available only if the machine is equipped with single-coin Hopper; in machines equipped with multi-coin Hopper Discriminator the configuration menu shall make the POS option unavailable.
  • Page 11 PRINT ACCOUNTS: when the machine is connected to the printer, it is possible to get a strip reporting records of the accounts. Proceed as follows: Connect the OK pushbutton to the RGB3 socket of the machine main board. Insert Master (Black) Card/Key. Display shows “Account Records”: hold the greenlit (Language) pushbutton pressed until display shows “Partials in”...

  • Page 12: System Configuration

    7. System configuration 7.1 Default configuration The HIRA 2 Maxi is preset by default as follows (unless requested for different setup): Control Board Parameters Pay-out mode = AUTOMATIC Bonus = DISABLED Level sensors = DISABLED Hoppers no. 1 / 2 (*) = € 2.00 = ENABLED Hopper S11 Parameters Preset as no.
  • Page 13 MENU MAIN STRUCTURE CHANGEONE Promo EXIT SHOW PERIPHERAL MENU UNITS SHOW ACCOUNTS Notice: PIN is requested RESET access some sub-menu ACCOUNTS settings. PERIPHERAL UNITS SET UP EMPTY OUT HOPPER (*) only available with HopperOne, RESTORE DEFAULT and only if preset for: CONFIGURATION DISPENSING MODE TOKENS...
  • Page 14 7.3.2 S ERIPHERAL NITS This menu allows to check the state of the , for instance: PERIPHERAL UNITS HOPPER 1 NOTE VALIDATOR OIN ACCEPTOR EMPTY CONNECTED DISCONNECTED 7.3.3 S HOW ACCOUNTS This menu allows to check the total and the partial values of cashed and paid amounts. SHOW RESET ACCOUNTS...
  • Page 15 7.3.5 S ETTING THE PERIPHERAL UNITS This menu allows to set up the denominations accepted by the note validator and by the coin acceptor, as well as the value of the coins/tokens dispensed. It also permits to set the change mode as either automatic or manual, and to enable/disable the full/void sensors of the hoppers.
  • Page 16 7.3.5.A N ALIDATOR SETUP All the programmed note values get automatically enabled at the initial check. To modify this default condition, press OK to get to the first option (ex. 5 €) and highlight it, then press UP or state. Press OK to shift to the next option (ex. 10 €). DOWN to reverse its Set up <5 >...
  • Page 17 ETTING THE ABLE When the Pay-out Table is enabled, the Operator can configure 8 different combinations of change, each of them related to the amount introduced by the User. The LEVEL box can be set to a determined amount (typically, the accepted coin and note denominations), while the relevant HP1 and HP2 values can be set to: - number of pieces so that their calculation sums up to the amount set in the LEVEL box, if change in cash is handled;...
  • Page 18 LEVEL 4: By “OK”, confirm LEV5. By “+”, set Level 4 to 2,00€ and confirm. HP1 will automatically set to 2 pieces (2 x 1€). You can set the pay-out table so as dispense any of the following combinations: (A) 2x1€ coins, or (B) 1x1€...
  • Page 19 7.3.5.C (only if the ACS reader is built-in) ASHLESS If the unit is equipped with the ACS reader, it is possible to get access to useful functions: Master Card/Key Service Card/Key Operator Operation (black) for the (white) for the Card/Key owner manager (yellow)
  • Page 20 7.3.5.D GSM/GPRS When the GSM/GPRS kit is installed, it gets detected during self-configuration, and its parameters must be set up for operation. SMS functions will not be working on Hermes GPS/GSM module; remote control will then be managed only through the Argo Portal or through the Argo App. Insert name: Insert Name: LUCKY HALL...
  • Page 21 (*) By the buttons + and - , locate the letter/digit, and press the OK button to confirm your choice; the cursor will automatically move to the next character. There are 16 characters in the machine name, and 10 in the User Code. After confirming the last character, the name or the /code you have typed gets automatically saved.
  • Page 22 7.3.9 ANGUAGE SETUP LANGUAGE Seleziona lingua Choose language Waehlen Ihre Sprache SETUP ITALIANO ENGLISH DEUTSCH 7.3.10 ROMO It is possible to preset an advertisement on the display. Press OK: Digit text ----------------------- Press again OK, the pointer will highlight the first digit: by UP or DOWN, choose the character that you want to insert, then confirm by OK.
  • Page 23 7.3.12 ANUAL EFILL Refill can take place when unit is empty or not. Allows to record the amount introduced manually. MANUAL REFILL MANUAL REFILL SET UP SET UP MANUAL REFILL MANUAL REFILL Confirm?..Confirm?..(*) Shows “€” when set for coins €...

  • Page 24: Messages

    Messages 8.1 Messages on the display 8.1.1 Faulty operation: CHANGEONE The following warning: OUT OF SERVICE is accompanied by the system check. For instance, the following sliding warnings: ...COIN ACCEPTOR… TOR… …. HOPPE R N° 1… …. HOPPE PTOR …. ….
  • Page 25 8.2 Messages from the Note validator 8.2.1 BillyOne / OryOne Validator During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): no of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)

  • Page 26: Cleaning Of The Note Validator

    Cleaning the Note Validator WARNING! Do switch power off before opening the machine! 9.1 Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts.

  • Page 27: Disposal Of The Product

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
  • Page 29 ATTACHMENT: Spare parts List HIRA 2 Maxi...
  • Page 31 HIRA 2 Midi...
  • Page 34 HIRA 2 Mini...
  • Page 35 BillyOne...
  • Page 37 IRETTIVA IRETTIVA La ditta Alberici S.p.A., avente sede in via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO) – Italia, D I C H I A R A Che il sistema classificato nella famiglia di prodotto apparecchio elettrico d’uso domestico e similare –...
  • Page 38 Alberici S.P.A. Progettazione e produzione sistemi di pagamento, accessori per videogames e vending machines Via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO), Italia. Telefono:+39-(0)51-944300. – Fax:+39-(0)51-944594 – P.Iva:00627531205 – Url: E-mail: info@alberici.net http://www.alberici.net...
  • Page 43 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of continual improvement of its product.
  • Page 44 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
