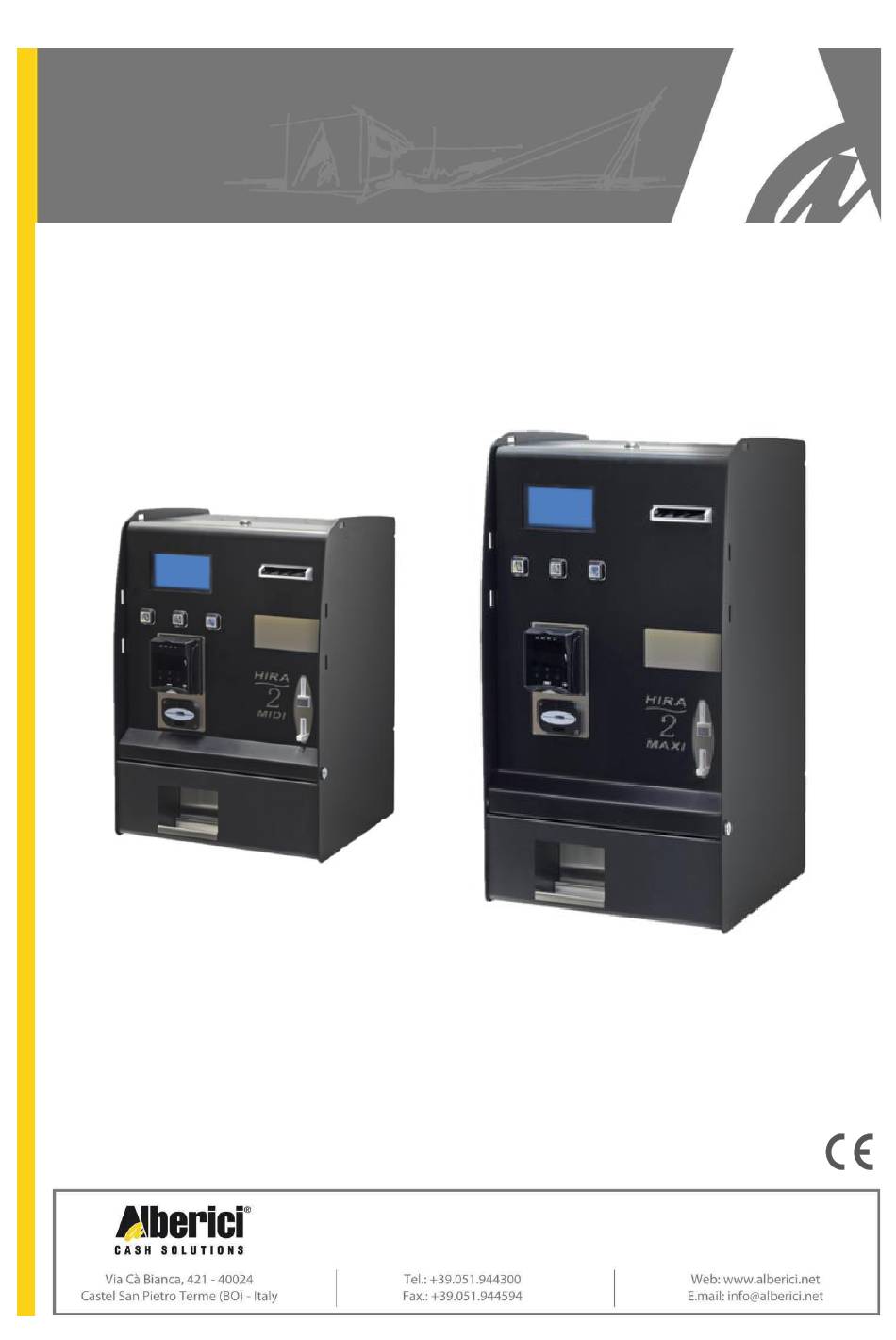

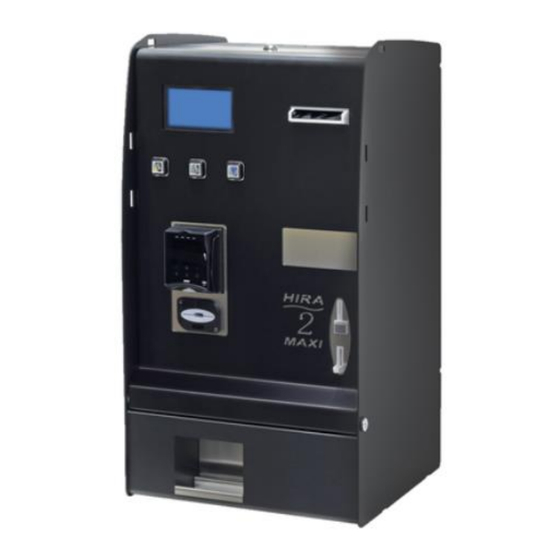

Hira 2 Midi, Maxi
Operator's Manual
Rev. 2.20 EN
5" display
HIRA 2 -
Operator's Manual
Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design
and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash
5" display
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIRA 2 Midi and is the answer not in the manual?

Questions and answers

Related Manuals for Alberici HIRA 2 Midi

Summary of Contents for Alberici HIRA 2 Midi

  • Page 1 Hira 2 Midi, Maxi 5” display Operator’s Manual Rev. 2.20 EN HIRA 2 - 5” display Operator’s Manual Progettazione e produzione di sistemi di pagamento e accessori per macchine Gaming, Vending e Car-Wash Design and manufacture of payment systems and accessories for the Industries of Gaming, Vending and CarWash...

  • Page 3: Table Of Contents

    CONTENTS Package content: ............................4 Components description ..........................4 Product description ............................ 5 Warning ..............................5 Installation ..............................6 Operation ..............................9 System configuration………………………………………………………………………..………………………9 Messages……………………………………………………………………………………………..…………….22 Cleaning of the Note Validator ......................... 24 11. Disposal of the product ..........................25 12. Terms of Guarantee ..........................25 13.

  • Page 4: Package Content

    Please read carefully this handbook, to obtain the most from your machine. 1. Package content The package contains: 1. the Alberici HIRA 2 Midi / Hira 2 Maxi Change machine 2. 1 pair of keys 3. the power cable (see inside of money box) 4.

  • Page 5: Product Description

    Notice: Euro is the preset currency. If you require a different currency, please request your currency before placing your order. (*) The system requires that the B-to-B Alberici SIM card is inserted into the Hermes module SIM slot, and that a subscription is entered into the ARGO Portal, in order to control the machine via the Internet.

  • Page 6: Installation

    PAY ATTENTION: IT IS ESSENTIAL TO FASTEN THE MACHINE TO A SOLID WALL BY USING RELIABLE EXPANSION BOLTS. IT IS RECOMMENDED THAT YOU MAKE USE OF THE DEDICATED WALL-MOUNT SLAB (ref. HRM-AM15-V06 for HIRA 2 Midi, HRS-015A-V06 for HIRA 2 Maxi) . Midi Maxi...
  • Page 7 MOUNT SLABS HRS-015A-V06 for HIRA 2 Maxi Prepare the tunnel for the power cable in the wall (corresponding to “Y” Hole in the slab). Fasten the slab to the wall by sturdy expansion bolts,  12 through the 6 “X” ( 12 mm) holes. Connect the cable to its socket behind the machine, and hang the latter on the 4 “W”...
  • Page 8 REPARATION FOR PAY ATTENTION FILL THE HOPPERS ONLY WHEN THE MACHINE IS OFF Open the door and locate extensions capacity on top of the hopper. Unlock the latch A (white slide) of the cover and slide the latter fully out towards the outside, until is positioned as a pilot chute: pour into the hopper the coins or tokens to be dispensed as change.

  • Page 9: Operation

    6. Operation Three buttons are available: “SELECT-”, “LANGUAGE/SELECT+”, and “CONFIRM” allow the User to make his choice when the unit is set to operate in MANUAL MODE. These buttons are lit up in blue colour when the unit is in stand-by.
  • Page 10 touch any “SEL” button as many times as necessary to obtain the desired amount. Then, confirm by the OK button. The display will show the first available combination of tokens preset by the Operator; press any “SEL” button to check for the other available combinations, until the one that best suits your needs is displayed: 1,00€...

  • Page 11: System Configuration

    touch any “SEL” button as many times as necessary to obtain the desired amount. SELECT AMOUNT OF PURCHASE SELECT AMOUNT OF PURCHASE SELECT AMOUNT OF PURCHASE “SEL“ 10,00€ 20,00€ “SEL“ 50,00€ CONFIRM TO COLLECT CONFIRM TO COLLECT CONFIRM TO COLLECT then, press the “OK”...
  • Page 12 7.3 Menu functions 7.3.1 S URF THE Locate the in-line 3 button-keys on the p.c. board rear side. Else, it is possible to temporarily connect the external keypad (K-P3N-000006) to the ‘Program’ socket in the rear side of the p.c. board. External programming keyboard (K-P3N-000006), as an alternative to the "OK", "+"...
  • Page 13 7.3.2 ENU STRUCTURE When switching to the menu, the following set of icons get diisplayed on the screen: MENU SHOW PERIPHERAL UNITS Use the “+” button-key to highlight the icon of the menu function you want to check: the description of the highlighted icon will appear at the bottom of the screen (e.g.
  • Page 14 7.3.5 ESET CCOUNTS By this function it is possible to completely reset the registered Accounts records (eiher totals or partials). To cancel the recorded totals it is necessary to enter the PIN code. The highlighted item appears on a white background: if you choose RESET PARTIALS, simply press OK to delete these data (the message PARTIAL ACCOUNTS RESET will briefly appear);...
  • Page 15 7.3.6 ETUP THE ACHINE The PERIPHERAL UNITS function allows to set which banknote and coin denominations must be accepted; if POS device is included, its operation can be enabled or disabled by this function. If the telemetry module is part of the machine, this sub-menu allows to configure the GSM-GPS fuction (see section 7.3.6.1D).
  • Page 16 7.3.6.1.B NABLE OINS By this function, the Operator can decide which coin denominations the machine must accept and which ones it must reject and immediately return to the User. The default coin denomination is 2 € for all 2 Hopper S11. If at least one Hopper AH4 (discriminator) is part of the machine, default denominations are 0,50 €...
  • Page 17 7.3.6.2 Set up Dispense Mode The DISPENSE MODE function allows to set the way the machine reacts to the introduction of money (i.e. change money immediately and automatically, or wait for the User to confirm after dropping the money in); it also allows to set the coin denominations that can be individually delivered by the 2 hoppers.
  • Page 18 By pressing the OK button, highlight the box that needs be changed, then press the “+” key or the “-“ key to respectively increase or decrease the value of the coin denomination to be paid out by the hopper. It is possible to set which hoppper must preferably pay out, i.e. when tokens are dispensed by e.g. HP1, and it is the interest of the Operator to sell as many tokens can be purchased by the money introduced.
  • Page 19 7.3.6.3 Setup the Pay-out Table When the Pay-out Table is enabled, the Operator can configure different combinations of change denominations related to the amount introduced by the User; different operating options can be preset, according to whether the DISPENSE MODE has been set for AUTOMATIC mode or for MANUAL mode. Press “+”/”-“...
  • Page 20 EXAMPLES of SETTINGS: taking as example that the values in the hoppers have been set to HP1=2€, HP2=1€, the Operator might set the change combinations to be dispensed as below: LEVEL 1,00 € 2,00 € 5,00 € 10,00 € 20,00 € 50,00 €...
  • Page 21 [ 7 levels available, each level allows 5 combinations] 7.3.6.3 B PAY-OUT TABLE IN MANUAL MODE Once the ENABLED mode has been confirmed by the OK button, the display shows the following pattern of 5 available combinations relevant to the first pay-in level: SETUP LEVEL 1 0,00...
  • Page 22 ……… When confirming the exit arrow icon (>) after Level 7, the system will save all the programmed settings. - If the Operator wants to make available only a limited number of combinations options (ex. only 3 options), he will leave 0 in all the boxes of the rows 4 and 5. - If the Operator wants to set only a limited number of levels (ex.
  • Page 23 Once the 4th character of the PIN has been confirmed, reset will be started. Then, the message RESTORED SETTINGS will appear briefly, while the machine exits DEFAULT CONFIGURATION the menu and returns to the stand-by condition: RESTORED WARNING: in case of reset to the default configuration, the PIN code will be reset to the default 0000 setting.

  • Page 24: Messages

    8. Messages 8.1 Messages from the OryOne Note Validator 8.1.1 F AULTY PERATION When all dispensers are empty, or when any critical HIRA 2 combination of working conditions prevents the unit to operate properly, the following message gets displayed: OUT OF SERVICE If the “OUT OF SERVICE”...
  • Page 25 8.2 Messages from the Vega-RC Note Validator 8.2.1 F AULTY PERATION During operation, the amount of consecutive red flashes produced by the entry slot indicates the possible malfunctions (see chart below): nr of red flashes Description Validator is open Jammed banknote Fraud attempt detected Adjust optic sensors Stacker full (OryOne Only)

  • Page 26: Cleaning Of The Note Validator

    9. Cleaning the Note Validator WARNING! Do switch power off before opening the machine! • Manual cleaning The ability of acceptance may decrease due to the accumulation of dust and cellulose dust released by banknotes during transit, or because of residues or sprays, which may spread on the detecting sensors and on transmission parts.

  • Page 27: Disposal Of The Product

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
  • Page 28 ATTACHMENT: Spare parts List HIRA 2 Maxi...
  • Page 30 HIRA 2 Midi...
  • Page 33 IRETTIVA IRETTIVA La ditta Alberici S.p.A., avente sede in via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO) – Italia, D I C H I A R A Che il sistema classificato nella famiglia di prodotto apparecchio elettrico d’uso domestico e similare –...
  • Page 34 Alberici S.P.A. Progettazione e produzione sistemi di pagamento, accessori per videogames e vending machines Via Ca’ Bianca, 421, 40024 Castel San Pietro Terme (BO), Italia. Telefono:+39-(0)51-944300. – Fax:+39-(0)51-944594 – P.Iva:00627531205 – Url: E-mail: info@alberici.net http://www.alberici.net...
  • Page 39 NOTICE Alberici S.p.A. reserves the right to make changes to the equipment described and to its technical specifications at any time and without notice, in pursuit of continual improvement of its product.
  • Page 40 Progettazione e produzione di sistemi di pagamento, accessori per videogames e macchine vending Design and manufacture of payment systems, accessories for videogames and vending machines Via Ca’ Bianca 421 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY...
