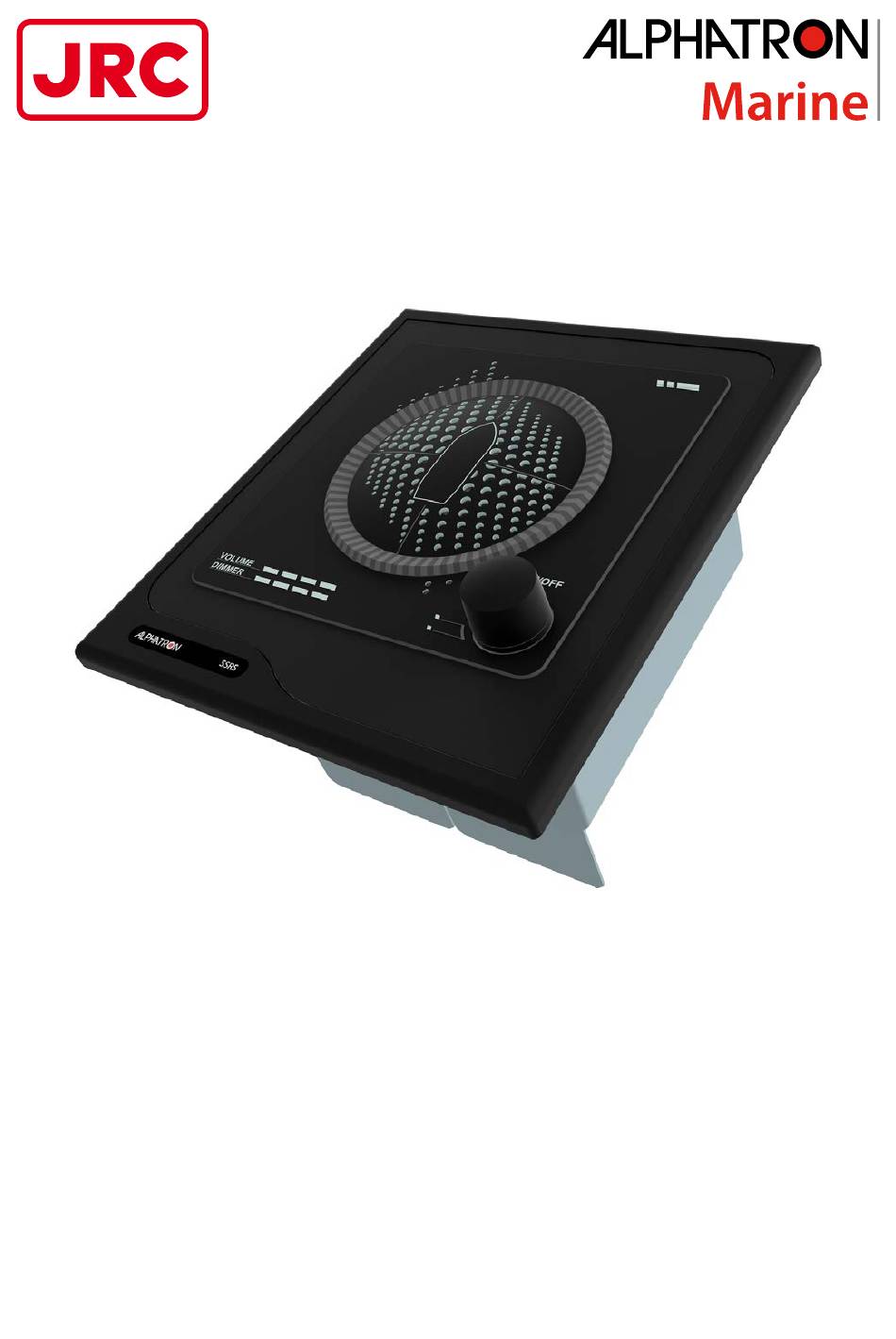

- Page 1 Alphatron SSRS Sound Reception System Installation and Operation Manual www.jrc.am...
-
Page 2: Table Of Contents
Contents I Preface......................4 I.1 Revision History................................ 4 I.2 Glossary..................................4 I.2.1 Abbreviations..............................4 I.2.2 Standards................................. 5 II Cautions...................... 7 III Introduction....................8 III.1 Product Description..............................8 III.2 System Description..............................8 1 Installation....................10 1.1 Microphone Unit..............................10 1.2 Display Unit................................12 2 Operation.................... - Page 3 4 Maintenance....................35 4.1 Troubleshooting..............................35 4.1.1 Microphone Surveillance Failure........................35 4.1.2 LED Surveillance Failure..........................36 4.1.3 Fog Horn Detection Failure.......................... 36 4.1.4 Display Device Boot Failure..........................36 4.2 Service..................................36 4.3 Spare Parts................................37 4.4 Recycling and Disposal............................37 4.5 Test and Maintenance Records..........................38 5 Drawings....................39 5.1 SSRA Microphone Unit............................
-
Page 4: I Preface
I Preface The Alphatron SSRS sound reception system has been designed to make sound signals from other ships audible by personnel whilst they are in the fully enclosed bridge space. The system complies with all the latest applicable standards and has been tested with the most modern test instrumentation and detailed test procedures ensuring a top quality product. -
Page 5: Standards
Sound Reception Signal (proprietary sentence) Voltage Direct Current Volume (proprietary sentence) Table 1: Abbreviations I.2.2 Standards The Alphatron SSRS Display Unit has been verified, tested and meets the product standards as listed in Table 2: Standards on page 5 Standard Description ISO 14859:2012... - Page 6 Requirement Description IMO Res. Adoption of the international code of safety for high speed craft (2000). MSC.97(73) IMO Res. Performance standards for the presentation of navigation-related information on the shipborne MSC.191(79) navigational displays. Table 3: Requirements Note This product is also ship wheel-mark and type approval of marine products certified in accordance with Marine Equipment Directive (MED).
-
Page 7: Cautions
II Cautions The following symbols are used in this manual regarding safety: • Caution damage. • This symbol is used to highlight information that if not followed can result in damage to a product or equipment. • Warning injury / death •... -
Page 8: Introduction
International Regulations for Preventing Collisions at Sea, 1972. The system works by listening and detecting the direction of a fog horn. The Alphatron SSRS system is always listening for sounds on the outside of the ship and will only playback and display sounds once a horn has been detected. The ship's own horn can be suppressed by closing a closing contact on the Alphatron SSRS system, which will disable detection for the duration it is held closed. - Page 9 Figure 3: Sound Reception System 9 | Introduction...
-
Page 10: Installation
1 Installation 1.1 Microphone Unit Figure 4: Top Mounted Figure 5: Side Mounted 1. Fasten the microphone with the attached mounting bracket to the ship, or remove the bracket and attach the steel tube by other means. Note The mounting bracket can be mounted to a ship by the top or the side. Note The "Fore"... - Page 11 The cable must be shielded and contain at least 5 twisted pairs made of bare copper and have a lead core size of 0.25mm2 or larger when the cable length is up to 100m. If a longer stretch of cable is required (up to a maximum of 200 m), use a lead core size of 0.5mm2 or larger.
-
Page 12: Display Unit
Note Clarification of the notes in Connection Diagram: (Figure 6: Wiring Schematic on page 11). 1. Refer Cable and Connection Diagrams regarding supply of cables. The cable must be shielded with individual pairs and have a minimum 0.25mm2 core size. 2. - Page 13 Figure 8: Place Frame on Cutout Figure 9: Screw Fix Frame Figure 10: Place Display Unit Figure 11: In Place 1. Mount the display unit in a bridge console, or similar structure. Note Plug in the Ethernet cable, if the network features of the display unit will be used. 2.
-
Page 14: Operation
2.1.1 Normal Mode When the Alphatron SSRS is first started it will start in the normal mode. When in this mode the unit will idle until a horn signal is detected. Detected horns are audible from the speaker and indicate the direction of the source of the signal. -
Page 15: Manual Listening Mode
2.1.2 Manual Listening Mode Figure 13: Selecting the Fore Microphone Figure 14: Selecting the Aft Microphone In the manual mode each of the four microphones can be listened to individually. In this mode the sound from the active microphone is audible through the speaker at all times. To activate the manual listening mode, perform the following actions: 1. -
Page 16: Calibration Detection Mode
2.1.3 Calibration Detection Mode Figure 15: No Offset (0°) Figure 16: Offset 30° Use the calibration detection mode to adjust the offset display. For example to adjust the offset of an incorrectly mounted microphone unit. 1. Press and hold the CONTROL button for 10 seconds. When the calibration mode is activated the light behind the CONTROL rotary button changes to orange. -
Page 17: Network Operations
2.2 Network Operations The Alphatron SSRS performs multiple network operations according to part 450 of the IEC 61162 standard. This includes inter-device communication and logging. The transmission groups are mapped to the following multicast addresses and ports: Transmission group Address port combo: MISC 239.192.0.1:60001... -
Page 18: Srs Proprietary Sentence
CONTROL button on the display unit. The sentence is sent on the configured transmission group. When an Alphatron SSRS display unit receives such a message it will automatically adjust the volume to match the volume of the device that sent the sentence. -
Page 19: Hbt Sentence
2.2.1.3 HBT Sentence The Alphatron SSRS sends a heartbeat (HBT) sentence once every 60 seconds. This sentence is sent to the MISC transmission group. It is equal to the standard HBT sentence, except that it is sent as a parameter to the PJTR sentence. -
Page 20: Maximum Data Rates
2.2.3 Maximum Data Rates These are the maximum data rates as required by 61162-450, section 4.3.2: Description Amount Maximum received per second, intended for target 50/sec Maximum received per second, not intended for target 2000/sec Maximum received per second, not intended for target at 50% of the maximum load. 1000/sec Table 5: Maximum Data Rates 2.3 Syslog Messages... -
Page 21: Error Indicator
2.5 Error Indicator When an error is detected, the status LED on the Phontech 8300 MkII will light up orange. Figure 21: Indicating an error has been detected. Note For more information regarding potential failures or issues, refer to the tips explained under Troubleshooting. -
Page 22: Detecting A Sound Signal
Figure 22: Sound Signal as it is Detected Figure 23: Sound Signal 3 sec. after Detection When the Alphatron SSRS detects a sound signal and determines the direction of the signal, the direction will appear on the display unit. After 3 seconds the orange LEDs disappear and the red LEDs remain. The red LED indicator remains by default for 7 seconds or the configured amount of time. -
Page 23: Detecting Multiple Sound Signals
2.7 Detecting Multiple Sound Signals The Alphatron SSRS is able to detect multiple sound signals simultaneous. One detection at 0˚ and another at 310˚. Figure 25: Detecting Multiple Sound Signals 3sec. Figure 24: Detecting Multiple Sound Signals, 0° and after Detection 310°... -
Page 24: Adjusting Volume And Lighting
Note The nominal viewing and listening distance is 0,8m. 2.9 Web Interface The Alphatron SSRS has a web interface for logging and configuring the unit, this web interface also supplies information regarding the state of the unit. 1. Enter the Alphatron SSRS IP address into any web browser to access the web interface. -
Page 25: Home Screen
This is done in Additional options and is explained under Maintenance. 2.9.1 Home Screen The home screen is the first page shown when the web interface is accessed on the Alphatron SSRS. This screen displays the status of the unit. - Page 26 Figure 29: Home Screen, Status Failed - Acknowledge Messages 26 | Operation...
-
Page 27: Network Settings
Note The default is an IEC 61162-450 complaint address of 172.31.0.100. Note Prior to using the Alphatron SSRS on a IEC 61162-450 network to send sentences to other units, an SFI address must be configured. The configuration value for the address must start with SR and be followed by 4 digits, for example SR9999. - Page 28 Figure 30: Network settings - overall configuration To configure the network settings, perform the following actions: 1. Select the address type. 2. Enter the applicable settings. 3. Enter the applicable IEC settings. 4. Select the Syslog network options. 5. Click the Save settings button. 28 | Operation...
-
Page 29: Audio Settings
700-2100 Hz from 0.5 nautical miles when a horn creates a 115 dB SPL sound level. The signal to noise ratio configuration ranges from 2 to 6. The higher the values the stricter the Alphatron SSRS will be in detecting horns. Lower values will detect more horns, but are more susceptible to false detections. -
Page 30: System Log
2.9.4 System Log The Alphatron SSRS has a logging feature that enables logging in several levels. The system log page displays a real time log of the system, in addition to previously generated messages. To view logs, perform the following actions: Figure 32: Event Logging •... - Page 31 Error types Description Invalid UDP headers Packets that have been received but are lacking the required IEC 61162-450 UDP header. TAG format Format or structural error in the TAG block TAG checksum Checksum errors in the TAG block. TAG syntax Syntax error in the TAG block, such as illegal characters or fields.
-
Page 32: Additional Options
2.9.5 Additional Options The additional options page contains configuration options that do not fall under any of the other categories. Figure 33: Additional options To adjust any of these options, perform the following actions: 1. Select the applicable option. 2. Enter the applicable information. 3. -
Page 33: Testing
Testing of the operational functionality of the Alphatron SSRS is done using a fog horn. Note The Alphatron SSRS automatically and continuously tests both the display and microphone unit. In the event there is an error, the error will be displayed by the LED's, in the web interface or in the syslog server (if configured). -
Page 34: Specifications
Temperature storage -15 to +55°C Humidity 93% @ +40°C Interfaces 100 Mbit Ethernet, Mute closing contact, Alphatron SSRS interface Table 7: Product Specification Display Unit Supply voltages Powered by Alphatron SSRS+5VDC Dimensions (W/H/D) 316mm x 338 mm x 316mm. Refer drawing:... -
Page 35: Maintenance
• Display device boot failure. 4.1.1 Microphone Surveillance Failure If the signal coming from one or more of the microphones on the Alphatron SSRS microphone unit is malfunctioning, perform the following actions: 1. Check the cabling. Note The power leads should be connected to the display unit, left side of the Mute connection. A description of all the connectors is displayed on the back of the unit. -
Page 36: Led Surveillance Failure
Note Refer to the additional information under Microphone surveillance failure. 4.1.4 Display Device Boot Failure If the Alphatron SSRS display unit fails to start when power is connected, press and hold the reset button on the back of the display unit for 10 seconds. -
Page 37: Spare Parts
4.3 Spare Parts Keep the original packaging. If the Alphatron SSRS needs to be shipped for servicing, it is required to be shipped in the same packaging as when the product was first received. Name Description Part Number Alphatron SSRS BK Complete SSRS system - Black Color Scheme 3299.0070... -
Page 38: Test And Maintenance Records
4.5 Test and Maintenance Records Below is an overview of all test and maintenance activities. Date M/T* Signature Inspection Table 10: Test and Maintenance records *M=Maintenance, T=Test 38 | Maintenance... -
Page 39: Drawings
5 Drawings 5.1 SSRA Microphone Unit Figure 34: SSRA Microphone Unit 39 | Drawings... -
Page 40: Ssrd Display
5.2 SSRD Display Figure 35: SSRD Display 40 | Drawings... -
Page 41: Connection Diagram Microphone Unit
5.3 Connection Diagram Microphone Unit Figure 36: Connection Diagram SSRA 41 | Drawings... -
Page 42: Connection Diagram Display
5.4 Connection Diagram Display Figure 37: Connection Diagram SSRD 42 | Drawings... -
Page 43: Cable Diagram
5.5 Cable Diagram Figure 38: Cable Diagram 43 | Drawings... - Page 44 The information in this document is subject to change without notice and 3063 NH Rotterdam does not represent a commitment on the part of Alphatron Marine B.V. The Netherlands T +31 10 453 4000 Document name : Alphatron SSRS F +31 10 453 4010 Document nr. : 1005 service@jrc.am Version : V1.2...
