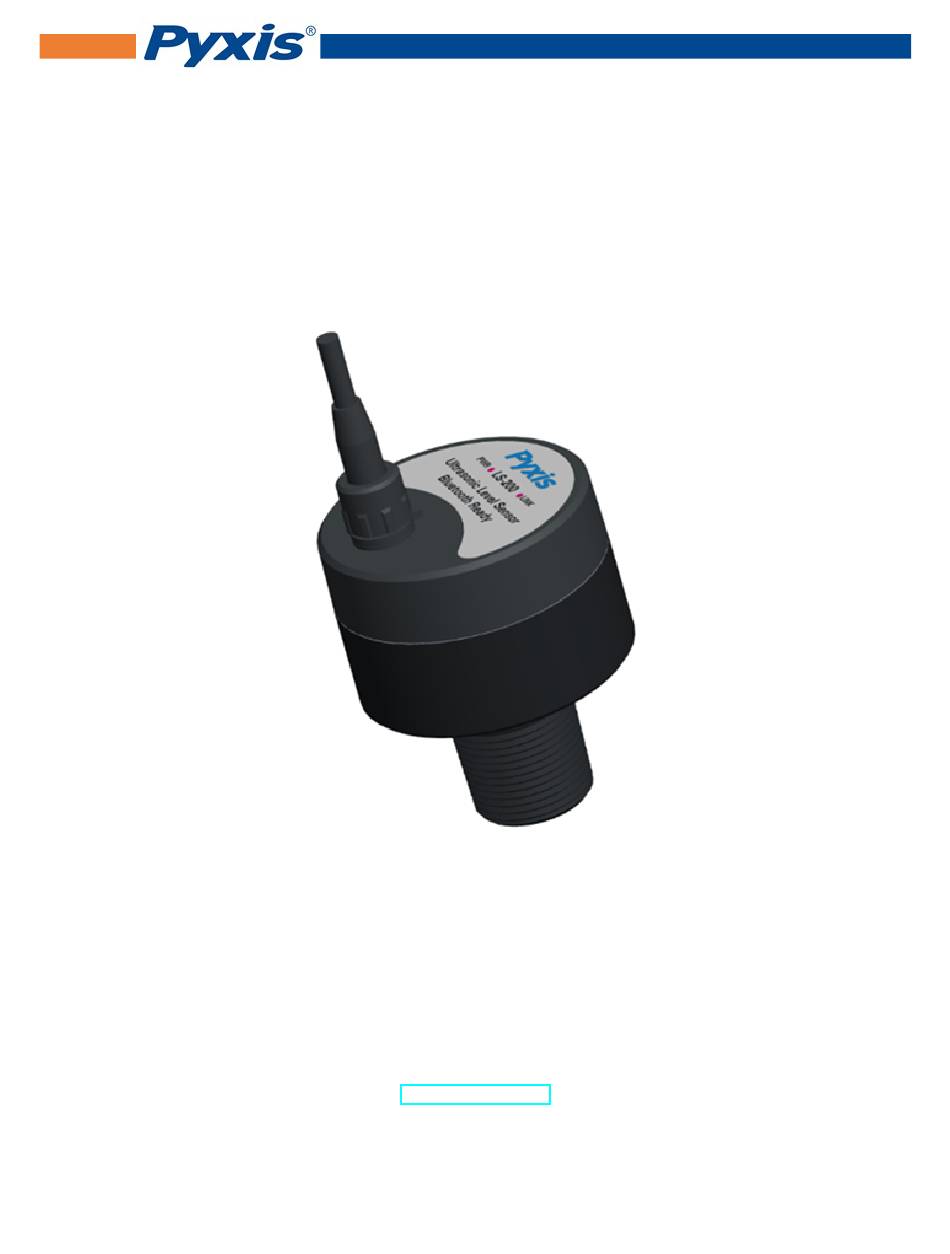

LS-200 Level Sensor
User Manual
January 22, 2020
Rev. 1.00
Pyxis Lab, Inc.
1729 Majestic Dr. Suite 5
Lafayette, CO 80026 USA
www.pyxis-lab.com
© 2017 Pyxis Lab, Inc.
Pyxis Lab Proprietary and Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pyxis LS-200

  • Page 1 LS-200 Level Sensor User Manual January 22, 2020 Rev. 1.00 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
  • Page 2: Table Of Contents

    Table of Contents 1 Introduction 2 Specification 3 Unpacking Instrument 3.1 Standard Provided Accessories ....... . 4 Installation 4.1 Wiring .
  • Page 3 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
  • Page 4: Introduction

    1 Introduction The Pyxis LS-200 is a general-purpose ultrasonic sensor. It provides continuous level measurement up to 86 inches (7.2 ft. or 2.2 m) with a 4-20 mA output, RS485, and Bluetooth digital outputs. It can be configured via the uPyxis® App on your mobile phones or computers. The sensor is powered by a 24 VDC external power supply.
  • Page 5: Installation

    4.1 Wiring The LS-200 level sensor is powered by a 24V DC power supply from any standard controller, PLC or DCS. The unit offers both 1x 4-20mA and 1x RS-485 Modbus outputs. If the power ground terminal and the negative 4-20 mA terminal in the controller are internally connected (non-isolated 4-20mA input), it is unnecessary to connect the 4-20 mA negative wire (green) to the 4-20 mA negative terminal in the controller.
  • Page 6: Instrument Indicator Overview

    Bluetooth is connected Bluetooth is disconnected NOTE The Bluetooth connected LED will illuminate within 30 seconds of powerup of the device. This feature is designed to minimize controller power draw during startup. LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 7: Setup With Upyxis® Mobile App

    6.2 Connecting to uPyxis® Mobile App Turn on Bluetooth on your mobile phone (Do not pair the phone Bluetooth to the LS-200). Open uPyxis® Mobile App. Once the app is open the app will start to search for the sensor. When the uPyxis® Mobile...
  • Page 8: Parameter Setting Via Upyxis® Mobile App

    Figure 6 illustrates these parameters for the tank. When connected, uPyxis® Mobile App will default to the Overview screen. To enter the setting press on Setting tab. NOTE For horizontal or other tanks that have a non-uniform cross section, please contact Pyxis Technical Support team (service@pyxis-lab.com) for assistance. LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 9 Units. To save the settings, press Apply Settings. NOTE Max Level Height must be at least 4 inches less than Installation Height Figure 7. To verify your readings after setting your parameters click on Reading. LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 10: Setting A Password Via Upyxis® Mobile App

    Set. After pressing Set, the screen will change over to the Set Password screen. Before setting a new password, contact Pyxis Service Department and give them the code at the bottom of the screen. The service representative will provide you with a password enabling you to reset a new password. Enter the...
  • Page 11: Setup With Upyxis® Desktop App

    3. On uPyxis® Desktop App, click menu Device -> Connect via USB-Bluetooth as shown in Figure 11. If the connection is successful, the LS-200 image and its Serial Number will be displayed in the left pane of the uPyxis® window as shown in Figure 12.
  • Page 12: Parameter Setting Via Upyxis® Desktop App

    Figure 11. Connect uPyxis® desktop app to LS-200 Figure 12. Definitions of terms 7.3 Parameter Setting via uPyxis® Desktop App Click Setting to set the parameters as show in Figures 13-15. The sensor measures the distance between the liquid surface in the tank and the bottom sensor surface. Converting this measured distance to other parameters such as the tank level, the remaining liquid volume, or the consumed liquid, requires the tank dimensional and volume capacity information.
  • Page 13 The installation height is the distance between tank bottom and the sensor bottom sur- face. NOTE Max Level Height must be at least 4 inches less than Installation Height Figure 13. Illustration of terms and tank capacity setup Figure 14. Measurement mode drop-down selection LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 14 Click Reading menu to display real-time measurement data in a trend chart (Figure 16). Figure 16. Level trend chart To upgrade firmware, click System as shown in Figure 17. The latest firmware can be downloaded from http://www.pyxis-lab.com/support.html. LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
  • Page 15: 4-20 Ma Output Setup

    The sensor can be configured as a Modbus slave device via RS-485. In addition to the level, volume, and distance, many operational parameters, including warning and error messages, are available via a Modbus RTU connection. Contact Pyxis Lab Customer Service (service@pyxis-lab.com) for more information. 10 Sensor Maintenance and Precaution For best performance, keeps the sensor ultrasonic surface clean using a soft cloth or towel.
  • Page 16: Regulatory Approval

    11 Regulatory Approval United States The LS-200 sensor has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 17: Contact Us

    12 Contact Us Pyxis Lab, Inc 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com Phone: +1 (866) 203-8397 Email: service@pyxis-lab.com LS-200 User Manual service@pyxis-lab.com | +1 (866) 203-8397...
