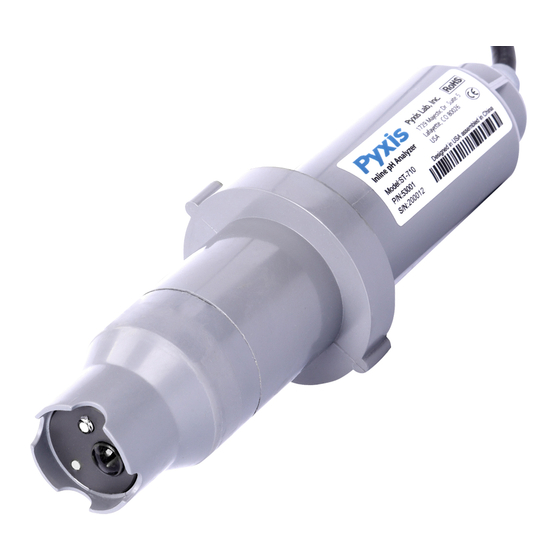

ST-710, ST-711, ST-712 & ST-720 Quick Start Guide
Standard Accessories Included
•
¾" NPT Inline Pyxis Tee Set (Tee, O-ring, and Nut)
•
Probe Bulkhead Cable w/ Male Adapter
•
Flying Lead Cable w/ Female Adapter & Open Leads
Optional Accessories
•
WiFi/Bluetooth Adaptor (Item Number: MA-WB)
•
uPyxis APP For Smartphone
•
pH 4 Reference Standard (SKU: 57005)
•
pH 10 Reference Standard (SKU: 57006)
•
ORP Reference Standard 200mV (SKU: 57020) –
•
Conductivity Reference Standard 1,000umhos (SKU: 57008) –
•
ST Series Inline Probe Cleaning Solution (SKU: SER-01)
•
Submersible Adapter (SKU: MA-102S)
1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397
– For Wireless Calibration via uPyxis APP for Smartphone
- (Apple iStore & Google Play)
– For Lower Level uPyxis Calibration
– For Upper Level uPyxis Calibration
For Single Point uPyxis Calibration
– For Submersed Applications – 1.5" NPT Assembly
(Wired to Controller)
For Single Point uPyxis Calibration
– For Proper Probe Cleaning & uPyxis Calibrations
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pyxis ST-700 Series
Summary of Contents for Pyxis ST-700 Series

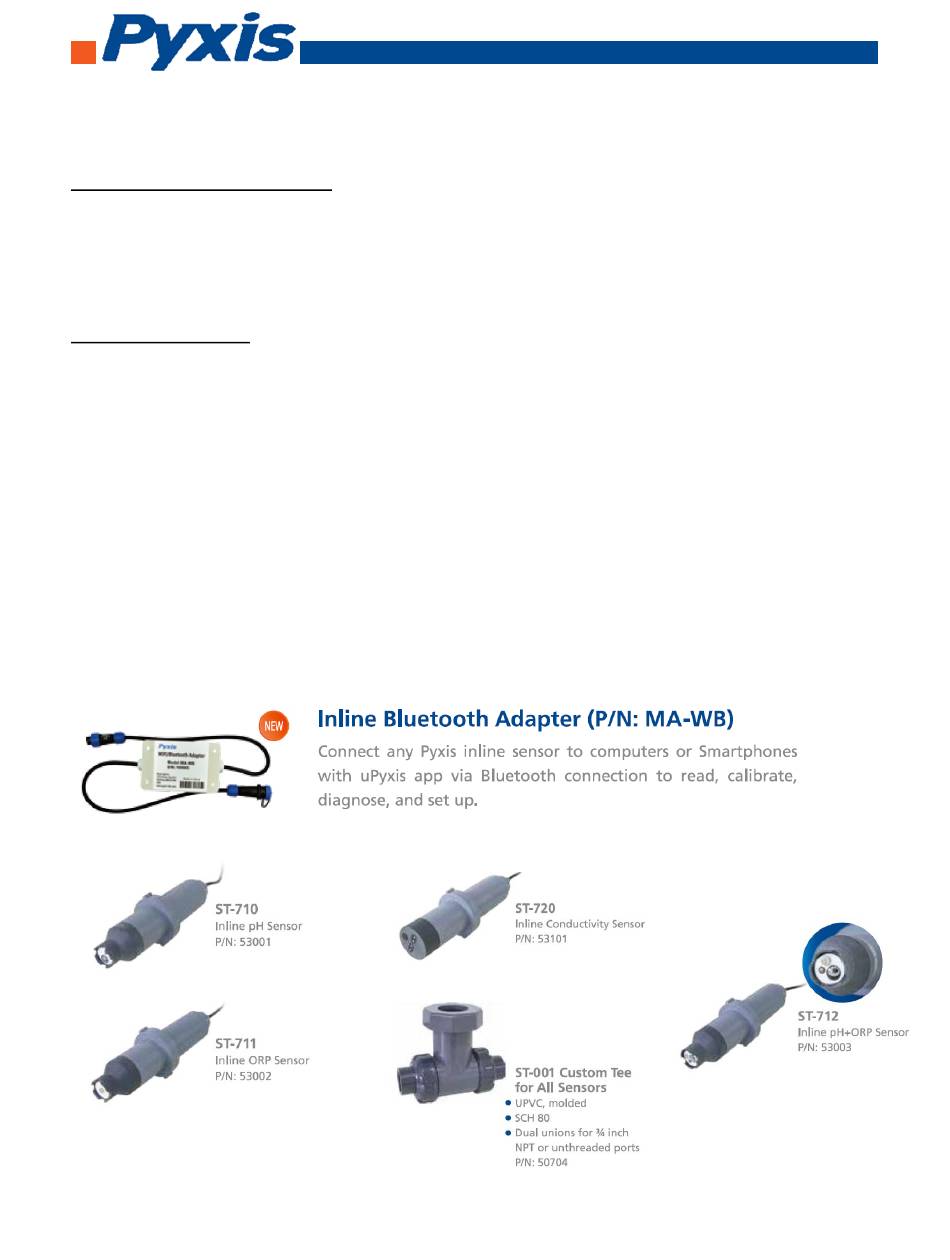

- Page 1 ST Series Inline Probe Cleaning Solution (SKU: SER-01) – For Proper Probe Cleaning & uPyxis Calibrations • Submersible Adapter (SKU: MA-102S) – For Submersed Applications – 1.5” NPT Assembly 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 2 4 – 20 mA and RS – 485 Modbus Dimension 6.8 inch long, 1.44 inch diameter Installation Pyxis Tee (ST-001), ¾ inch socket or threaded female union Body Material Others IP67, CE 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
-
Page 3: Wiring Installation
ST-711 – ORP Only (0-1,500mV / 4-20mA) ST-712 – pH & ORP (0-14 & 0-1,500mV / 2x 4-20mA) ST-720 – Conductivity Only (0-10,000 umhos / 4-20mA) 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397... - Page 4 Probe Calibration with uPyxis Mobile App Download uPyxis Mobile App Download uPyxis Mobile App from Apple App Store or Google Play Calibration Standards Available Online At https://pyxis-lab.com/product-category/calibration-standards-reagents/ 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 5 Low Calibration and follow the uPyxis app prompts. To perform pH High Calibration, click on pH High Calibration and follow the uPyxis app prompts. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 6 To set the Device Information, click on Device Info to enter the Device Info screen. In the Device Info screen, you can name the device and product. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 7 From the Calibration screen you can see the readings and calibrate the ST-711 probe. To perform calibration, click on Calibration follow the uPyxis app prompts. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 8 To set the Device Information, click on Device Info to enter the Device Info screen. In the Device Info screen, you can name the device and product. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 9 To perform pH High Calibration, click on pH High Calibration and follow the uPyxis app prompts. To perform ORP Calibration, click on ORP Calibration and follow the uPyxis app prompts. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 10 To set the Device Information, click on Device Info to enter the Device Info screen. In the Device Info screen, you can name the device and product. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 11 From the Calibration screen you can see the readings and calibrate the ST-720 probe. To perform Calibration, click on Calibration follow the uPyxis app prompts. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 12 To set the Device Information, click on Device Info to enter the Device Info screen. In the Device Info screen, you can name the device and product. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026, USA | service@pyxis-lab.com | +1 (866) 203-8397...
- Page 13 Soak the lower half of the probe in 100 mL inline probe cleaning solution for 15-30 minutes. If the surface is not entirely clean, continue to soak the probe for an additional time until clean. Rinse the probe with distilled water. Pyxis Lab Inline Probe Cleaning Solution can be purchased at our online Estore/Catalog at https://pyxis-lab.com/product/st-500-probe-cleaning-kit/...
