LS-200 Quick Start-up Guide

Tools Need for Installation

Mobile phone with IOS or Android (not included)

Power Cable (Included)

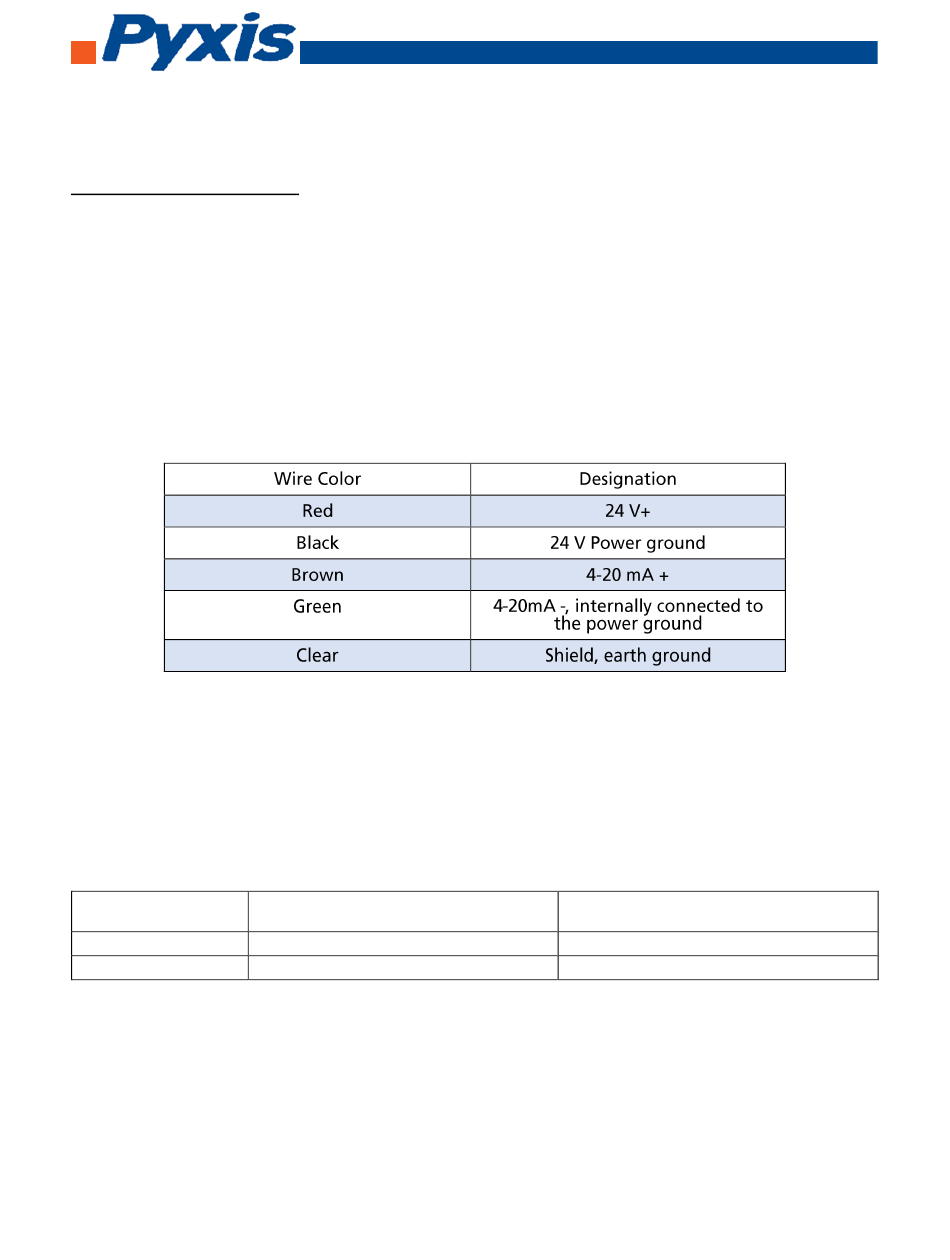

Follow the wiring table below to connect the LS-202 sensor's 4-20mA output to a controller and power

supply.

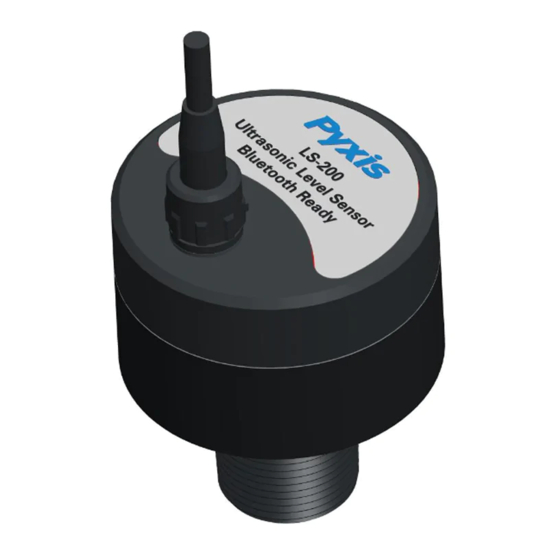

The indicators on the top of the sensor (figure 3) are used to indicate power status and Bluetooth

connection status.

LED Status

OFF

Green Led

Power Supply is on

Power Supply is off

Blue Led

Bluetooth is connected

Bluetooth is disconnected

Table of Contents

Need help?

Do you have a question about the LS-200 and is the answer not in the manual?

Page 1 LS-200 Quick Start-up Guide Tools Need for Installation Mobile phone with IOS or Android (not included) Power Cable (Included) LS-200 Wiring Follow the wiring table below to connect the LS-202 sensor’s 4-20mA output to a controller and power supply. LS-200 Indicator The indicators on the top of the sensor (figure 3) are used to indicate power status and Bluetooth connection status.
Page 2 Set up using uPyxis Mobile App Download uPyxis Mobile App from Apple App Store or Google Play.
Page 3 Connecting to uPyxis Mobile App Turn on Bluetooth on your mobile phone (Do not pair the phone Bluetooth to the LS-200). Open uPyxis Mobile App. Once the app is open the app will start to search for the sensor. When the uPyxis App...
Page 4 Password, press on Set. After press Set, the screen will change over to the Set Password screen. Before setting a new password, contact Pyxis Service Department and give them the code at the bottom of the screen. The service representative will provide you with a password.
Page 5 To verify your readings after setting your parameters click on Reading. For more information on the Installation Process reference LS-200 Operation Manual.
