2. CONFIGURATION

2.1 GENERAL DESCRIPTION

RT9 Power shelf systems are turn-key DC uninterruptible power supply solutions (DC UPS) for powering 24VDC
or 48VDC telecommunications and industrial equipment. The Power shelf provides integrated battery management
functions for a range of battery types (VRLA, flooded Lead-acid, NiCad, Ni-MH, Li-polymer) to enable easy
commissioning of a DC UPS or it can be used as a standalone DC source when no batteries are used.
The Power shelf provides the following integrated features:
•
battery (& load) distribution
•
battery charge current limiting
•
battery temperature sensing
•
low voltage disconnection
•
automated/remote battery discharge testing
•
accurate temperature compensated Float and
Equalization voltages
•
optional modules for monitoring AC power and
battery cell voltages

2.2 SYSTEM DESCRIPTION

2.2.1 Front View

PM990-4207-00, Rev 6
•
•
•
•
•
•
•
•

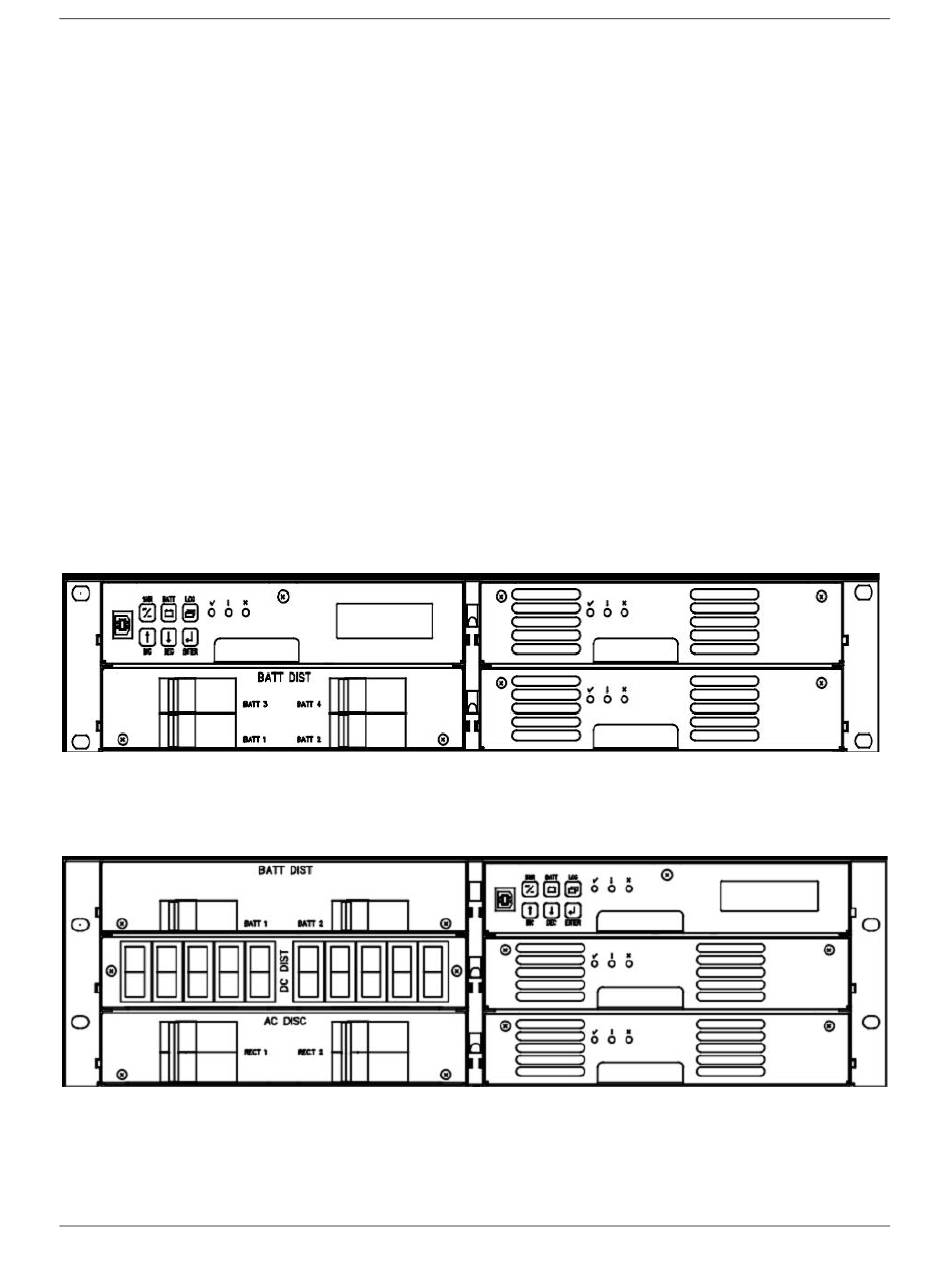

Figure 2.1 System blocks (2RU Series)

Figure 2.2 System blocks (3RU Series)

2-1
Sageon Micro Power Module Manual
battery & load circuit breaker trip sensing
short circuit and reverse polarity protection
n+1 redundant rectifiers
a monitoring and control module (Controller)
super capacitor backed real-time system clock
optional remote communication capability,
including web-based protocols
all rectifiers and the controller are hot-swap and
plug-and-play capable
optional AC distribution
