Configuration
(1) Rack mounting magazine
(2) Rectifier module
(3) Battery (& load) distribution module
(4) Controller
(5) AC distribution module (option on some systems)

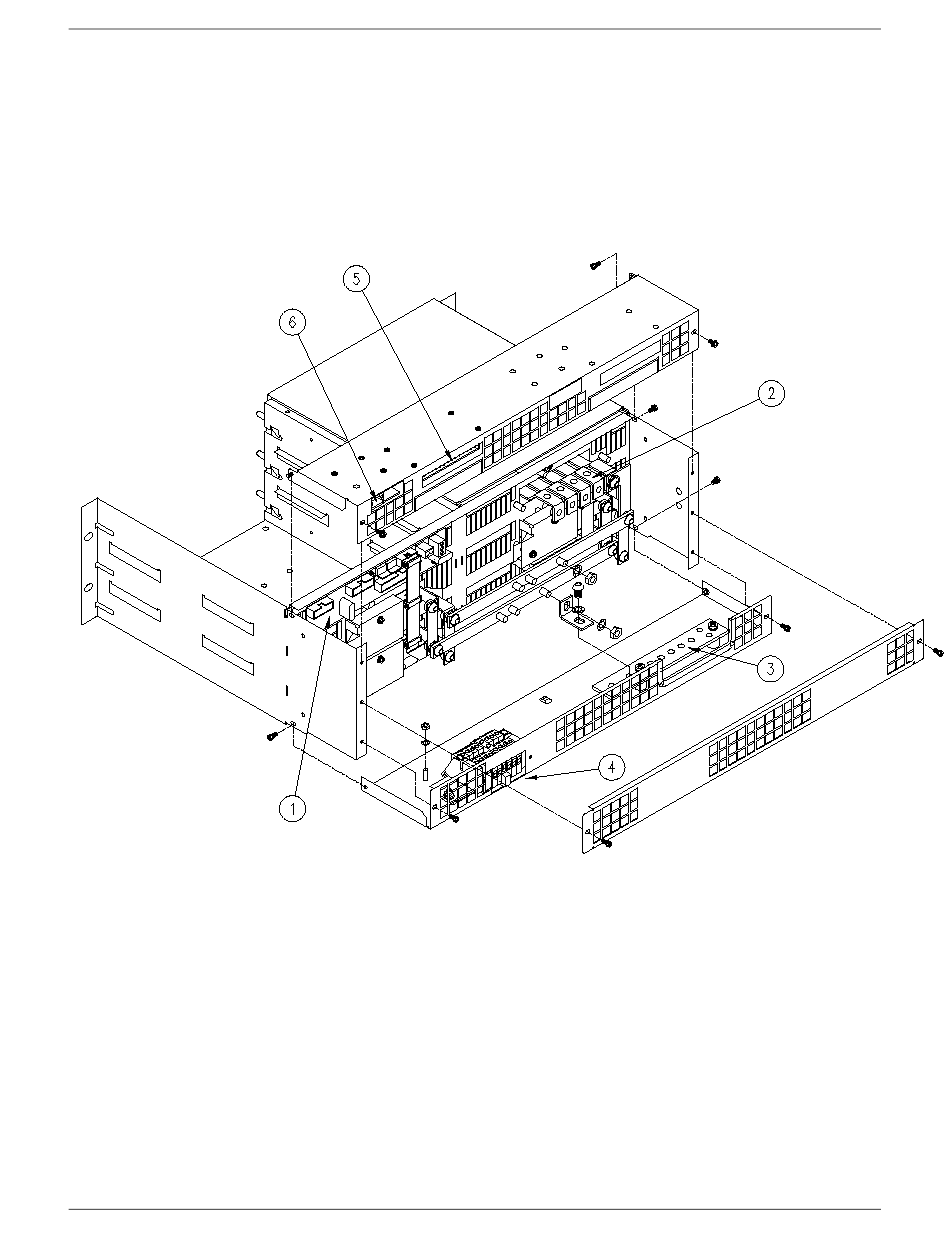

2.2.2 Rear View

(1) Controller backplane & interface connections
(2) Battery (& load) switched connections
(3) Battery (& load) common return connection bar
(4) AC feed terminations
(5) Alarm relay connections
(6) Remote communications module connection
PM990-4207-00, Rev 6

Figure 2.7 Rear view of connections

2-4
