Altronix TROVE T1MK1F4 Installation Manual page 4

T1MK1F4S and T1MK1F4SD: Configuration of Mercury Boards:
1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 3, pg. 4).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller
EP1502, LP1502, MR52, MR16IN, MR16OUT
EP1501, LP1501, MR51e, MR62e
MR50
EP2500, LP2500, MUX8

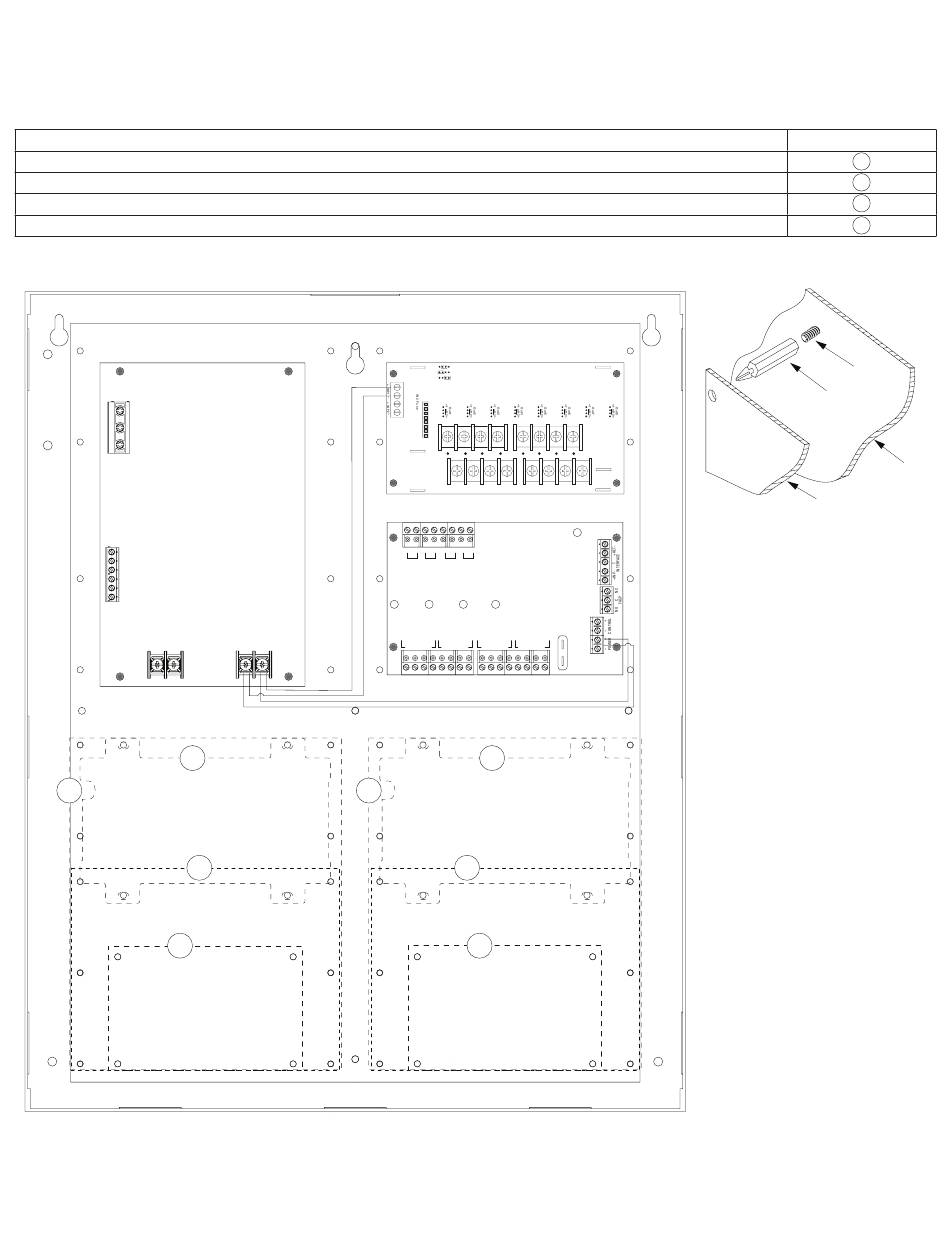

Fig. 3
Altronix
eFlow4NB
– BAT +
B
A
D
C
- 4 -
DM1 +
Common (--- )
DM2 +
IN GND
1
LED1
NC C NO COM
OUTPUT 1
– DC +
A
OFF
IN1 Fuse
IN1
DM1 +
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
Common (--- )
N
DM2 +
1 2 3 4 5 6 7 8
Common Power Outputs (NEG)
TRIGGER
INPUT
TRG
IN GND IN GND IN GND
2 3 4
Altronix ACM4(CB)
LED2 LED3 LED4
MAIN
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3 OUTPUT 4
ACM4
ACCESS POWER
CONTROLLER
B
D
C
Pem Mounting
A
B
C
D
Fig. 3a
Pem
Snap On
Standoff
Backplane
Mercury Board
T1MK Kits
