T1MK1F4 and T1MK1F4D: Configuration of Mercury Boards:
1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller
EP1502, LP1502, MR52, MR16IN, MR16OUT
EP1501, LP1501, MR51e, MR62e
MR50
EP2500, LP2500, MUX8

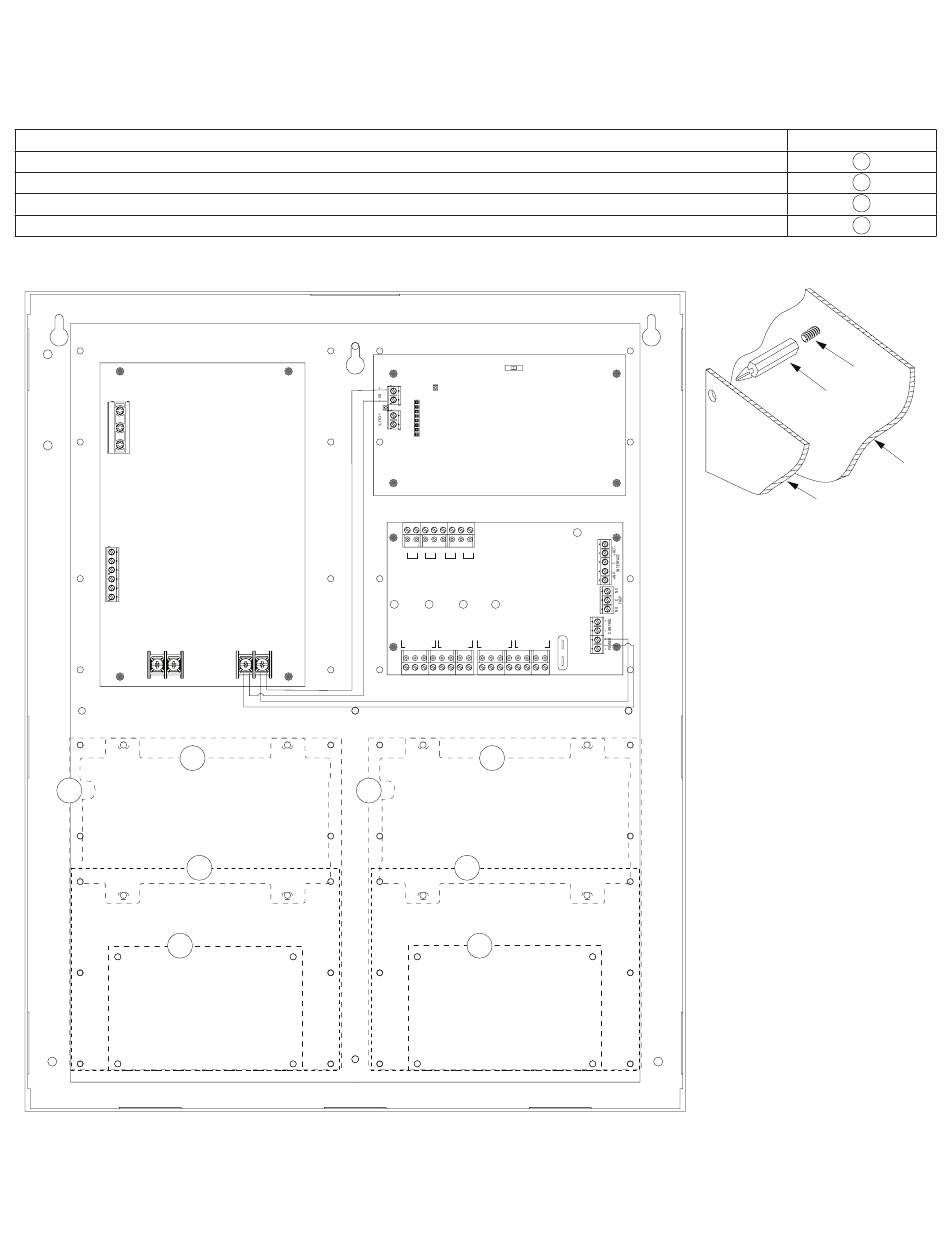

Fig. 2
Altronix
eFlow4NB
– BAT +
B
A
D
C
T1MK Kits
IN GND
1
LED1
NC C NO COM
OUTPUT 1
– DC +
A
ON-5V
OFF-12V
Altronix
VR6
TRIGGER
INPUT
TRG
IN GND IN GND IN GND
2 3 4
Altronix ACM4(CB)
LED2 LED3 LED4
MAIN
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3 OUTPUT 4
ACM4
ACCESS POWER
CONTROLLER
B
D
C
Pem Mounting
A
B
C
D
Fig. 2a
Pem
Snap On
Standoff
Backplane
Mercury Board
