SECTION 503-603-130

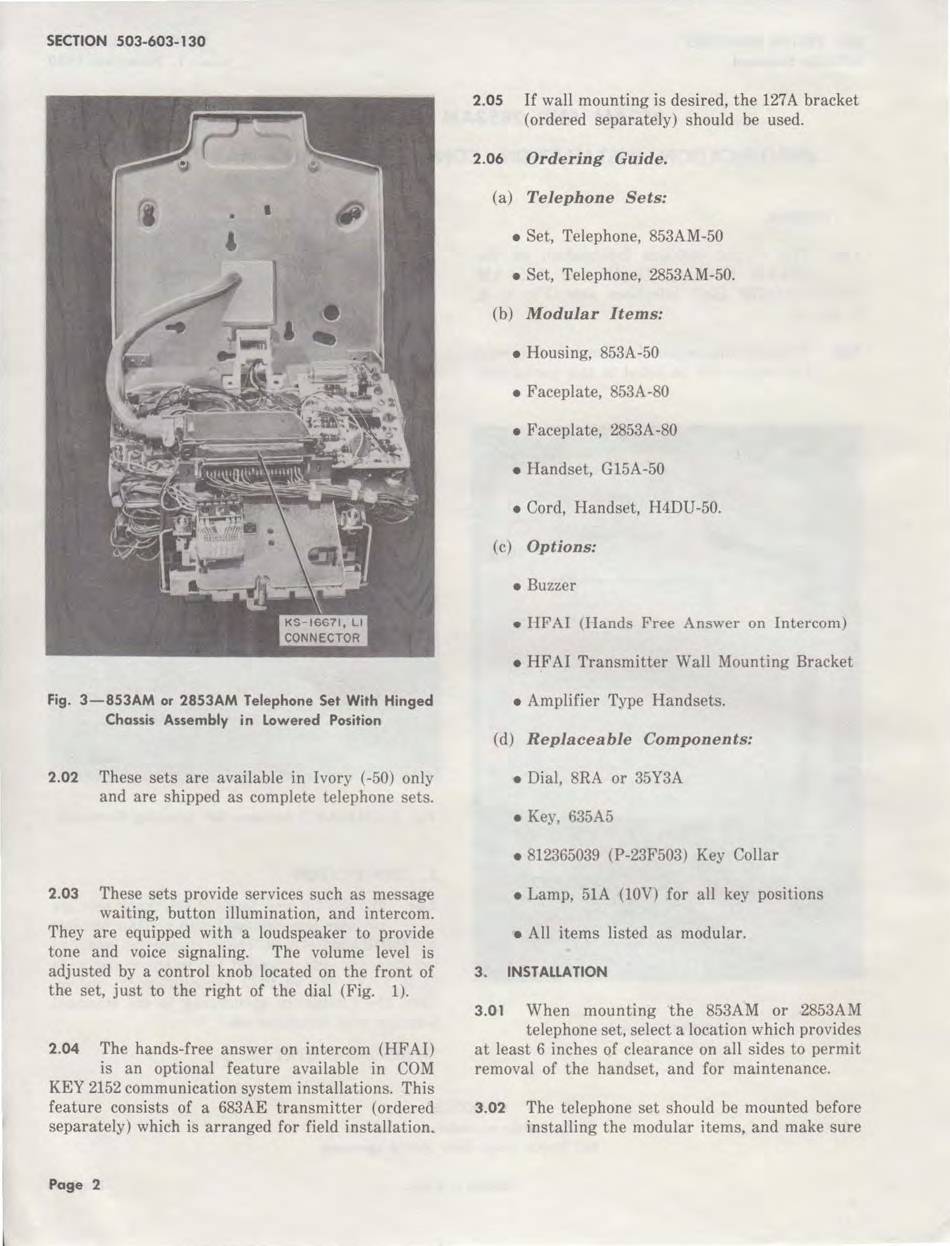

Fig. 3-853AM or 2853AM Telephone Set With Hinged
Chassis Assembly in Lowered Position
2.02
These sets are available in Ivory (-50) only
and are shipped as complete telephone sets.
2.03
These sets provide services such as message
waiting, button illumination, and intercom.
They are equipped with a loudspeaker to provide
tone and voice signaling. The volume level is
adjusted by a control knob located on the front of
the set, just to the right of the dial (Fig. 1).
2.04
The hands-free answer on intercom (HF AI)
is an optional feature available in COM
KEY 2152 communication system installations. This
feature consists of a 683AE transmitter (ordered
separately) which is arranged for field installation.
Page 2
2.05
If wall mounting is desired, the 127A bracket
(ordered separately) should be used.
2.06
Ordering Guide.
(a) Telephone Sets:
• Set, Telephone, 853AM-50
• Set, Telephone, 2853AM-50.
(b) Modular Items:
• Housing, 853A-50
• Faceplate, 853A-80
• Faceplate, 2853A-80
• Handset, G15A-50
• Cord, Handset, H4DU-50.
(c)
Options:
• Buzzer
• HFAI (Hands Free Answer on Intercom)
• HFAI Transmitter Wall Mounting Bracket
• Amplifier Type Handsets.
(d) Replaceable Components:
• Dial, 8RA or 35Y3A
• Key, 635A5
• 812365039 (P-23F503) Key Collar
• Lamp, 51A
(lOV)
for all key positions
• All items listed as modular.
3. INSTALLATION
3.01
When mounting the 853AM or 2853AM
telephone set, select a location which provides
at least 6 inches of clearance on all sides to permit
removal of the handset, and for maintenance.
3.02
The telephone set should be mounted before
installing the modular items, and make sure
