Installation - Bell System Practices AT&T Plant Series Identification, Installation, Connections, And Maintenance

Telephone set components for installation in customer-owned housings

Advertisement

SECTION
LEGEND
FEATURES
. Standard
operative
assembled
1 —
CHASSIS
ASSEMBLY
2 –
PIA RINGER
3 — LINE SWITCH
4 — 4010B NETWORK
5 – U3 OR
U1
(MD) RECEIVER
6—T1 TRANSMITTER UNIT
7 – F-56661 DIAL (CHROME) –
F-56659 TELEPHONE SET
F-56662 DIAL (GOLD) –
F-56660 TELEPHONE SET
UNIT
8— P-298106CARD HOLDER ASSEMBLY
9 — P-121457 SCREW (3)
10– P-22F047 SPIDER AND LEAD ASSEMBLY
11— P-22F046 CONNECTOR TERMINAL
AND LEAD ASSEMBLY
12– P-43A392 SCREW (4)
13– P-483192
14— P-121932
15– P-46J534
16– P-46J532
17— P46J245
SLEEVING (2)
CONNECTOR ASSEMBLY (2)
LEAD ASSEMBLY (RED)
LEAD ASSEMBLY (BIACK)
LEAD ASSEMBLY tWH ITE) (2)

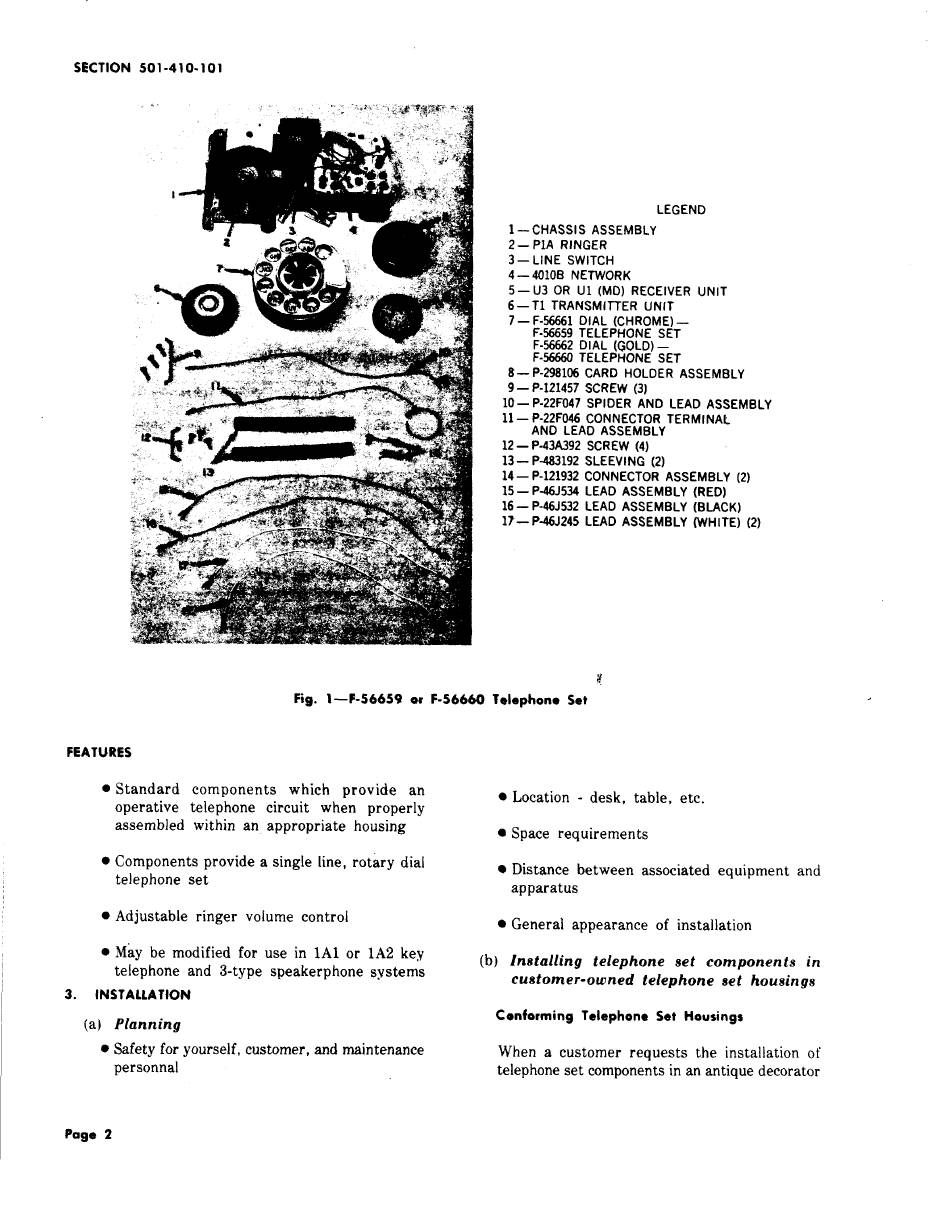

Fig.
1—F-56659
or F-56660
Telephone
Set
components
which
provide
an
telephone
circuit
when
properly
. Location - desk, table, etc.
within an appropriate
housing
. Space requirements
. Components
provide a single line, rotary dial
telephone
set
Adjustable
ringer volume controi
May be modified for use in lA1 or 1A2 key
telephone
and 3-type speakerphone
systems
3.
INSTALLATION
(a) Planning
safety for yourself,
customer, and maintenance
personnal
Q Distance between
associated
equipment
and
apparatus
General
appearance
of
installation
(b) installing
telephone
set
components
in
customer-owned
telephone
set housings
Conforming
Telephone
Set Housings
When a customer
requests
the installation
of
telephone set components in an antique decorator
Page
2
