BELL SYSTEM PRACTICES SECTION 502-321-910CA
I,~sue
0, October, 1972
Bell Canada
Standard
TELEPHONE SET
QSK100AX AND QSK2100AX
"CONTEMPRA" ,;,
,,<'I
; !
r!
i
'>
I~
N
1. GENERAL.
,
1.01
This section covers description, identifica-
tion, installation, connection and main-
tenance information for the QSK100AX and the
QSK2100~X
Contempra Telephone Sets.
1.02
These sets are significantly different in
that the dials are located in the handset.
®
RECALL
BUTTON
1.03
The QSK100AX has a rotary dial while
the QSK2100AX contains a Touch-Tone
Dial.
1.04
Use H3QA Handset for manual service.
See Fig. 11 for handset connections.
1.05
This section is reissued to make minor re-
visions and add connection information for
3A Speakerphone System.

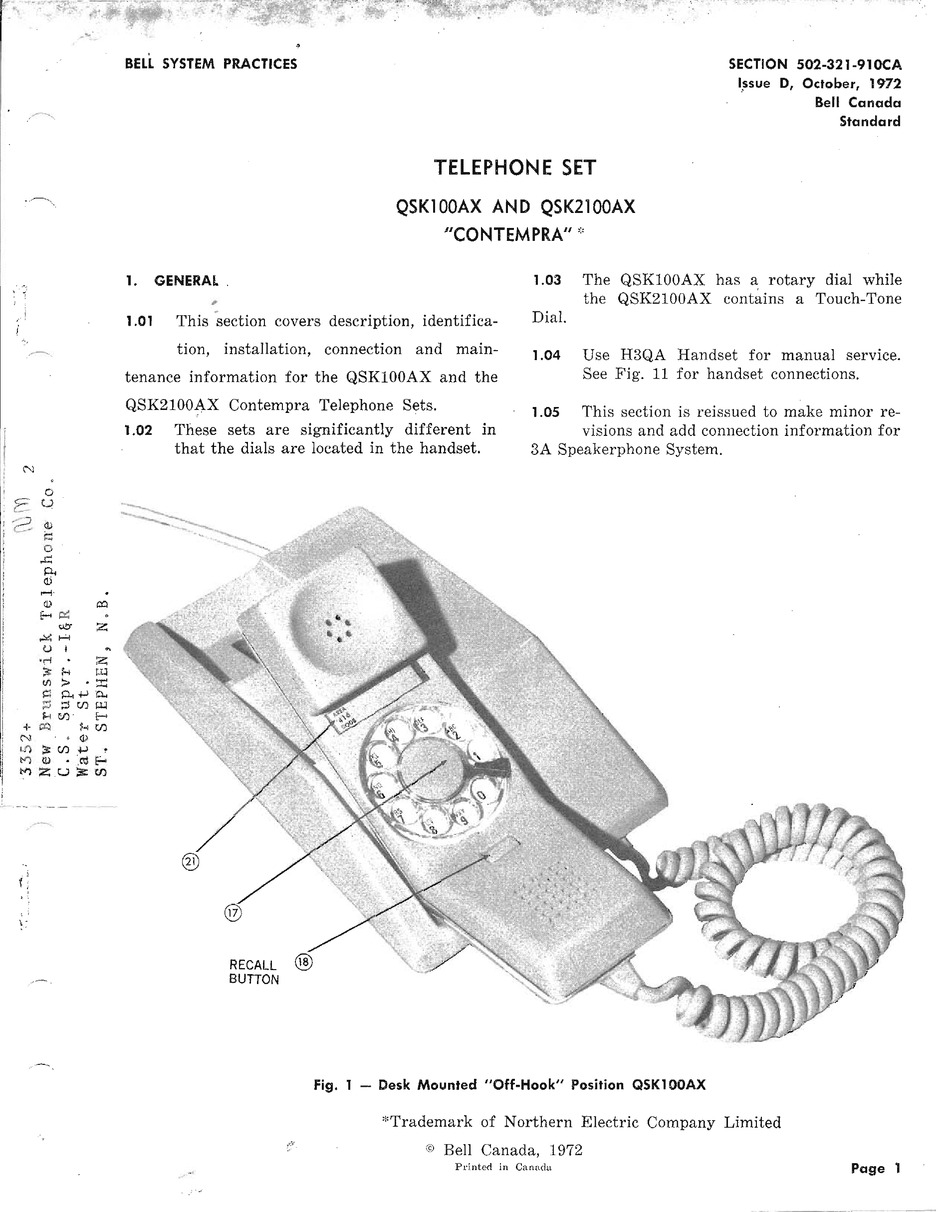

Fig. 1 - Desk Mounted "Off-Hook" Position QSK100AX
*Trademark of Northern Electric Company Limited
©
Bell Canada, 1972
Printed in Canada
Page 1
