SECTION 5 12-750-100
TELEPH ONE SET

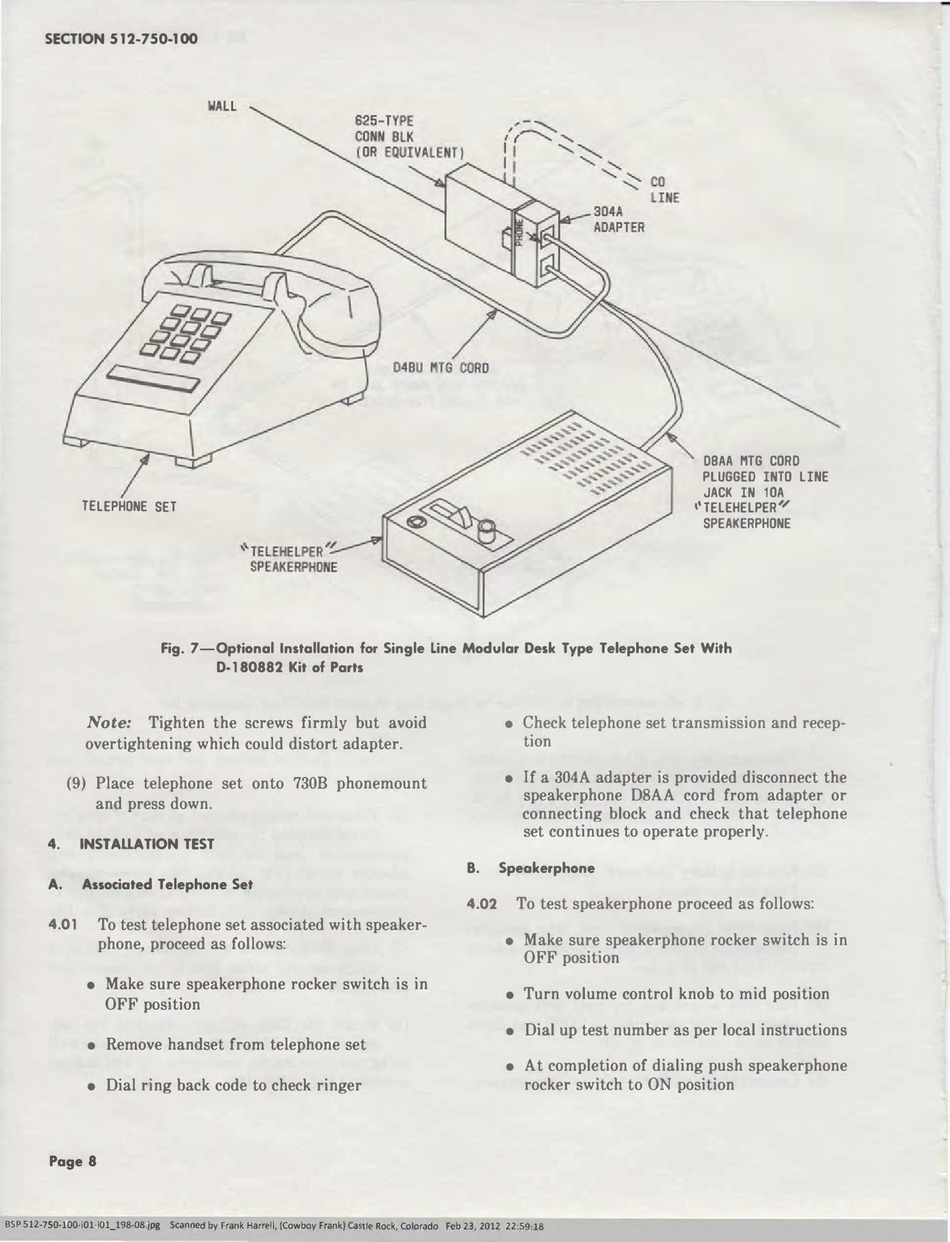

Fig. 7- 0ptionallnstallation for Single Line Modular Desk Type Telephone Set With
Tighten the screws firmly but avoid
Note:
overtightening which could distort adapter.
(9) Place telephone set onto 730B phonemount
and press down.
4.

INSTAllATION TEST

A. Associated Telephone Set
4.01 To test telephone set associated with speaker­
phone, proceed as follows:
Make sure speakerphone rocker switch is in
•
OFF position
Remove handset from telephone set
•
Dial ring back code to check ringer
•
Page 8
BSP 512-750-100-i01-i01_198-08. jpg
Scanned by Frank Harrell, {Cowboy Frank) Castle Rock, Colorado
180882 Kit of Parts
0-
Check telephone set transmission and recep­
•
tion
If a 304A adapter is provided disconnect the
•
speakerphone D8AA cord from adapter or
connecting block and check that telephone
set continues to operate properly.
B. Speakerphone
4.02 To test speakerphone proceed as follows:
Make sure speakerphone rocker switch is in
•
OFF position
Turn volume control knob to mid position
•
Dial up test number as per local instructions
•
At completion of dialing push speakerphone
•
rocker switch to ON position
Feb 23,2012 22:59:18
DBAA MTG CORD
PLUGGED INTO LINE
JACK IN 10A
•' TELEHELPER '/
SPEAKERPHONE
