Bell System Practices 831 Identification, Installation, Connections, And Maintenance

Telephone sets

Advertisement

Quick Links

BELL SYSTEM PRACTICES
AT&TCo Standard
IDENTIFICATION, INSTALLATION, CONNECTIONS, AND MAINTENANCE
1.
GENERAL
This section is reissued to:
1.01
Add 831C and 2831C telephone sets
Add 831C and 2831C telephone set bases
Show 831CT and 2831CT telephone sets rated
MD
Show 831CT and 2831CT telephone set bases
rated MD
Add 832A housing
Add 35AF3A dial
Include information for ringer biasing spring
adjustment
2.
IDENTIFICATION
Purpose
The 831-(rotary) and 2831-(TOUCH-TONE®
2.01
dial) type telephone sets are obtainable as
modular or complete desk-type, 20-button, key
telephone sets equipped to provide standard key
system features.
Application
Us e d w it h c e n t r a l o f f i c e, PBX o r
2.02
intercommunicating line circuits in 1A1, 1A2,
or 6A key telephone systems (KTS).
are not for use with 1A KTS.
It
The 831- and 2831-type telephone sets may
2.03
be used with 3- or 4-type speakerphone.
The limited number of mounting cord
conductors can place a restriction on
using these telephone sets with 3-type
speakerphone (see 3.03).
BSP S03-702-101-i06_1974-02-0l.jpg
Scanned by Frank Harrell, (Cowboy Frank) Castle Rock, Colorado
TELEPHONE SETS-831- AND 2831-TYPE
These sets
©
American Telephone and Telegraph Company, 1974
Printed in U.S.A.
Feb 04,2012 16:46:16

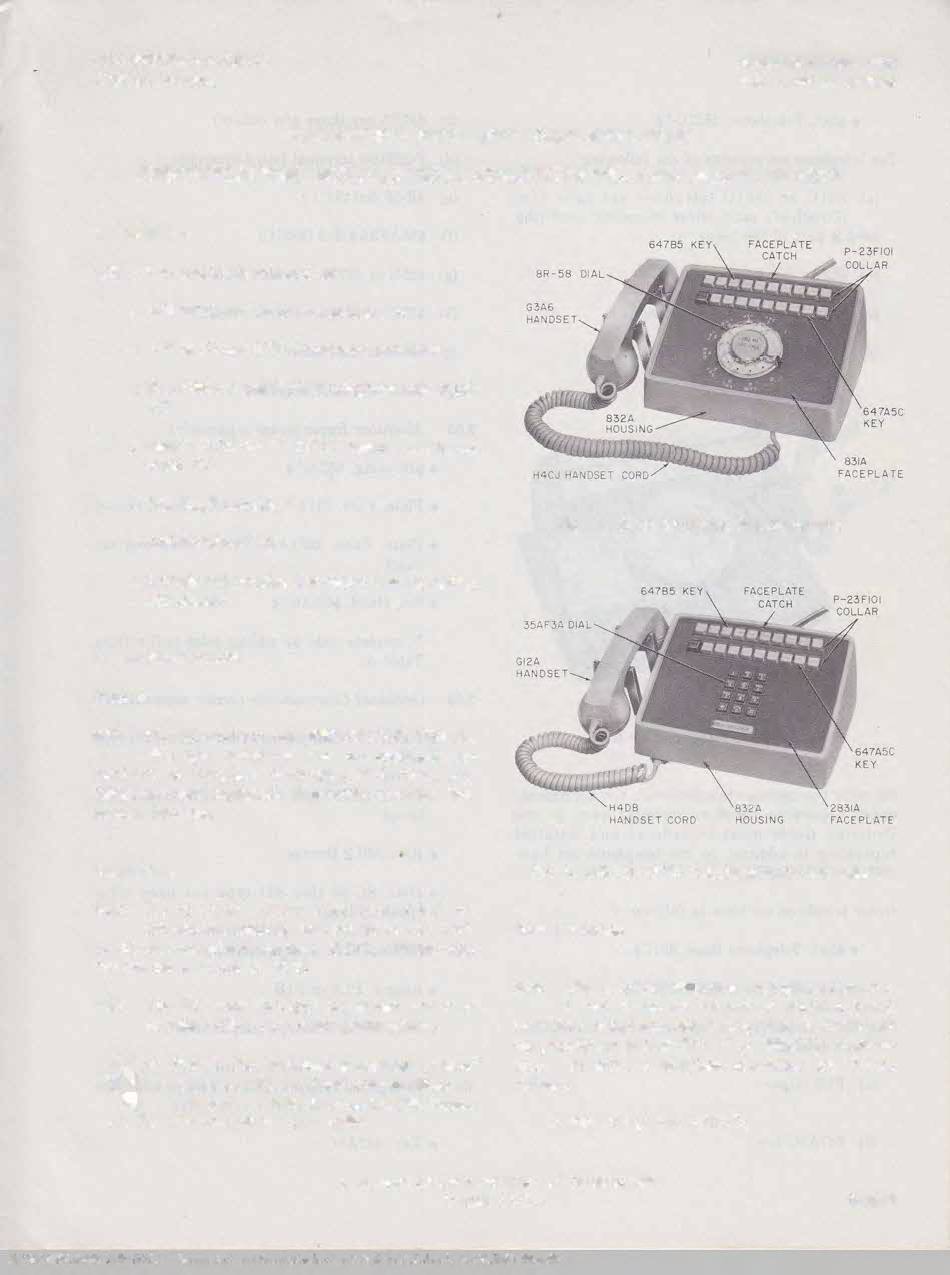

Fig. 1-831C Telephone Set, Assembled
Fig. 2-2831CT (MD) Telephone Set, Assembled
Ordering Guide
The 831- and 2831-type telephone set (Fig.
2.04
1 and 2) can be ordered as modular (831C
or 2831C telephone set bases) (Fig. 3 and 4) or
completely assembled (831C-* or 2831C-*) telephone
sets.
To order a complete telephone set, list as
follows:
tSet, Telephone, 831C·*•
SECTION 503-702-101
Issue
6,
February 197 4
Page 1
