CUSTOM I/O DATAPLATE
FUNCTIONALITY
The Custom I/O DataPlate is located on the left
side of the Practitioner Cart just below the
Technology Tray.
The I/O Panel is designed to take maximum
advantage of the input and output capabilities of
your HDX 8000 codec.
The I/O connections included on the Custom I/O
DataPlate are described in the sections that follow:
Ethernet/LAN
This is an RJ45 Panel Mount connection. This
connection is where the LAN patch cord is
connected for wired connectivity to your
Practitioner Cart. (Input)
VGA
This is a VGA female Panel Mount connection.
This connection is designed to plug into your
laptop to allow for PC Content sharing. (Input)
DVI (Connected to
Second Display Out
Ethernet /LAN
S-Video (Connected to split
S-Video Input)
3.5mm (F) (Connected
to PC audio)
Composite Video
(Connected to split
S-Video Input
Connection)
Manufactured by: Rubbermaid Healthcare • 16905 Northcross Drive • Suite 200 • Huntersville NC 28078

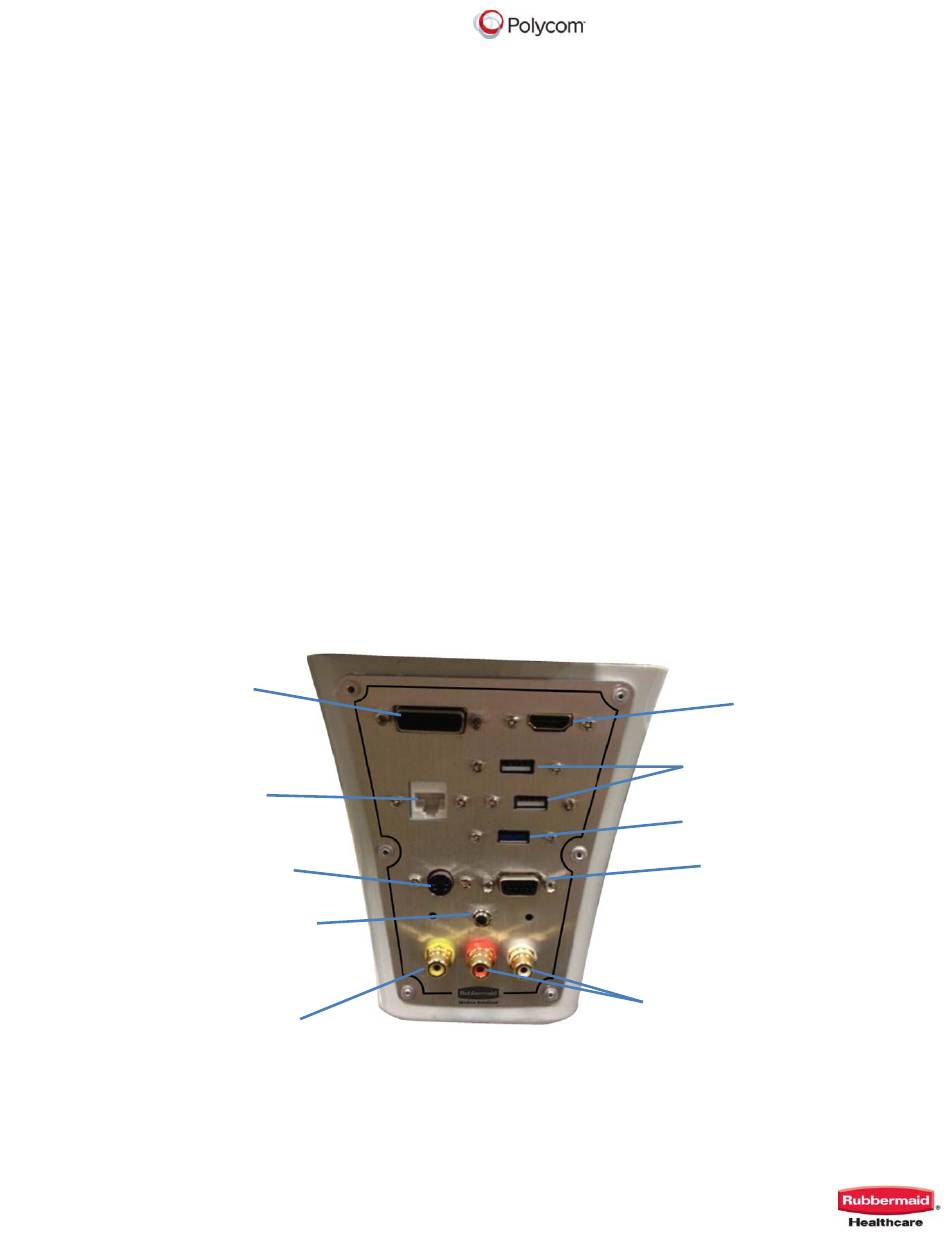

The Custom I/O DataPlate
Polycom RealPresence® Practitioner Cart® 8000 User Manual p/n 1793149 Rev C 03/13
RealPresence
S-Video
This is an S-Video female Panel Mount
connection. This connection is designed to
connect a document camera, video camera or any
peripheral that requires an S-Video connection
and analog video. (Input)
Composite Video (Yellow)
This is a Composite (RCA) female barrel
connection. This connection is for analog video
connections such as VCR's and DVD's. (Input)
Composite Audio (Red and White)
There are two Composite (RCA) female barrel
connections. These connections allow auxiliary
audio from a camera, PC, or VCR/DVD player.
(Input)
DVI
This is a DVI female Panel Mount Connection.
This connection is designed to attach to a
projector or a secondary display, to emulate or
expand your views within a conference. (Output)
13
® ®
Practitioner Cart 8000
HDMI
USB 2.0 (Connected to
PC Inputs
USB 3.0 (Connected to
PC Inputs
VGA
(Connected to PC Input)
Composite Audio
(Connected to Aux Audio)
