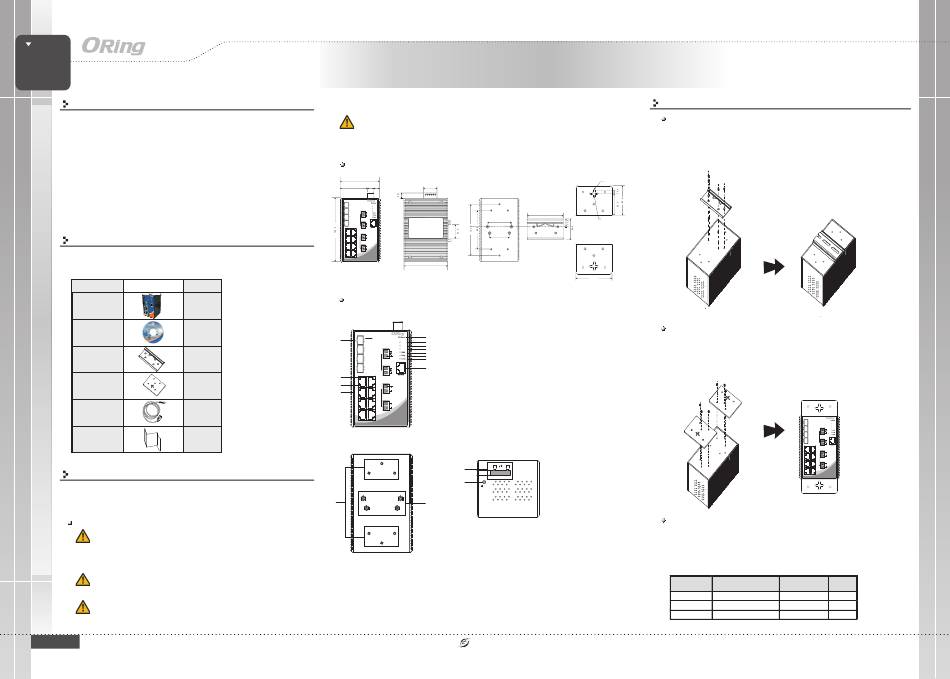

ORiNG IGS-9084GP-FB2 Quick Installation Manual

GIGABIT
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction
The IGS-9084GP-FB2 series is a managed industrial Ethernet switch with
eight 10/100/1000Base-T(X) ports and four 100/1000Base-X SFP ports. With
fiber optical bypass design, the switch can ensure continued network
operation when any inline device on the network fails. The switch supports
Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units
of connection) and MSTP (RSTP/STP compatible) to protect mission-critical
applications from network interruptions or temporary malfunctions with fast
recovery technology. With a wide operating temperature from -40 C to 70 C,
the device can be managed centrally via ORing's proprietary Open-Vision
management utilty as well as via Web-based interfaces, Telnet, and console
(CLI). The switch is one of the most reliable choices for highly-managed and
fiber Ethernet applications.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGS-9084GP-FB2
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Q I G
IGS-9084GP-FB2
IGS-9084GP-FB2
G
uide
Circuit Overloading: Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on overcurrent protection
and supply wiring. Appropriate consideration of equipment nameplate ratings should be used
when addressing this concern.
Dimension
o o 96.4
70.5 15.0 10.9
G12
PWR
PWR1
G11 PWR2
TX
A
G10 RX
Network
G9 TX
B
100/1000X
RX
G8 G7
TX
A
G6 G5 RX
Monitor
TX
G4 G3
B
RX
G2 G1
10/100/1000T
IGS-9084GP-FB2
Panel Layouts
X 1
Front View
X 1
11
7
G12
G11
X 1
G10
G9
100/1000X
8
G8 G7
X 2
9
10
G6 G5
G4 G3
X 1
G2 G1
10/100/1000T
X 1
Rear View
1 1
1. Wall-mount screw holes
2. Din-rail screw holes
1907-2-29-IGS9084GPFB2-1.0
30.0
87.0
58.0
48.0
105.5
15
1. Power LED 9. Duplex LED for Gigabit
PWR 1
2. PWR1 LED Ethernet ports
PWR1 2
3
PWR2
TX 3. PWR2 LED 10. Gigabit Ethernet ports
4
A
12 5
4. R.M. status LED 11. Link/action LED for SFP port
RX
6
Network
5. Ring status LED 12. Bypass network port
TX 14
B 6. Faulty relay indicator 13. Bypass monitor port
RX
7. SFP port 14. Console port
8. Link/action LED for 15. Reset button
TX
13
A
Gigabit Ethernet ports
RX
Monitor
TX
B
RX
IGS-9084GP-FB2
Top Panel
PWR-2 Fault PWR-1
1 1A@24V
V2- V2+ V1- V1+ DC 48V
2
2
1. Terminal blocks: PWR1, PWR2
(12-48V DC), Relay
2. Ground wire.
PRINTED ON RECYCLED PAPER
Industrial Managed Gigabit Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks
into the rail firmly.
R2.5
R3.95
87.9
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
Network Connection
The switch provides standard Ethernet ports. According to the link type, the
switch uses CAT 3, 4, 5, 5e UTP cables to connect to any other network devices
(PCs, servers, switches, routers, or hubs). Please refer to the following table for
cable specifications.
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP
Version 1.0
G12
PWR
PWR1
PWR2
G11 TX
A
RX
G10
Network
TX
G9
B
100/1000X
RX
G8 G7
TX
A
G6 G5 RX
Monitor
TX
G4 G3
B
RX
G2 G1
10/100/1000T
IGS-9084GP-FB2
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
