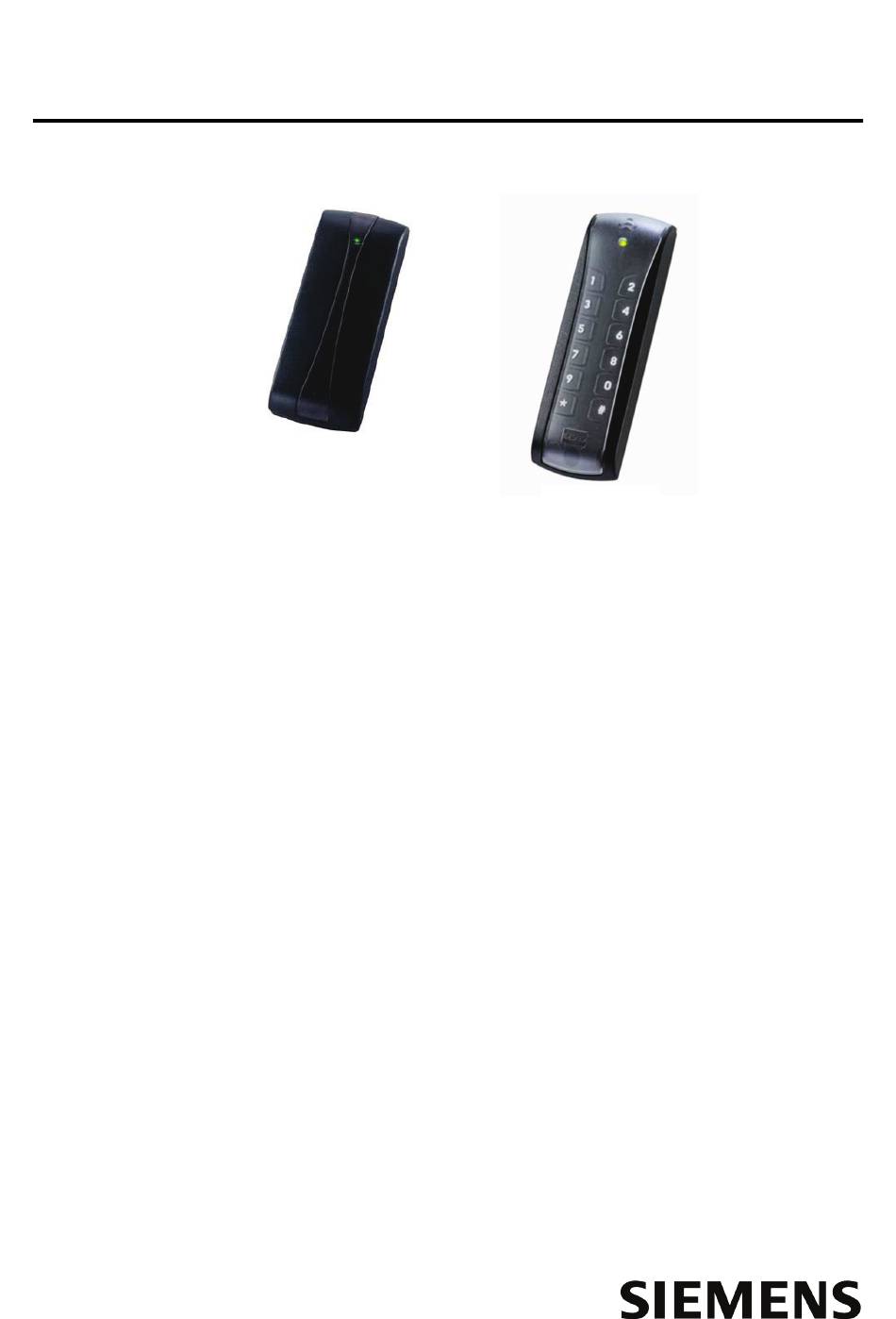

SC7 Smart Card Reader
General
The SC7 is a Smart Card Reader that only reads data from the Chip Serial Number
®
in Mifare
cards. It provides as default a 32Bit Wiegand output. The Reader is available
in 2 variants – the SC7 Smart Card only Reader and SC7P Smart Card and keypad
Reader.
Installation
Mounting
The SC7 Smart Card Reader can be connected to a Granta 4422 Reader Module,
Entro DC-12 or DC-22 Door Controllers or an Entro Lite DC800 Door Controller. The SC7
is prepared with a fixed 3m cable mounting.
Remove the cover by pushing in the lug on its lower edge using a suitable
screwdriver. Choose a suitable position to mount the Reader near the door. The SC7
Reader has a typical range of 2cm so it must be mounted in a position where the Smart
Card can easily be brought within this distance. We recommend it is mounted
approximately 1m (3.5ft) above the ground. Also consider ease of access to the door once
the Smart Card has been read, for example, it is better to mount the Reader near the
opening side of the door rather than the hinge side.
The Reader should be mounted with the LED at the top. Mark out and drill the two
mounting holes over the hole for the cable (a drawing is provided on the last page in this
document – Note: not to scale.) If this hole does not exist make sure to prepare for this as
well, do not cut the cable less than 10cm (4in).
Do not fix the Reader to the wall yet. The holes accept 4mm machine screws or No
8 wood screws (provided with the Reader).
Connect the Reader according the wiring diagram on the following pages,
depending of which system the Reader is connected to.
Installation Note
SC7
SC7 / SC7P / UK – 06.14
SC7P
