- Page 1 Operating instructions With dial controls GAS641/731 Gas hob...
- Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Model number Appliance class GAS641GKAZ 31089 Class 3 DIN EN 30-1-1 GAS731GKBZ 31075 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 4 Instructions for use.......... 5 Warnings .............. 7 Using for the first time 8 Appliance description 8 Appliance overview .......... 8 Operating elements.......... 9 Gas burners ............ 10 Safety system ............ 11 Cookware .............. 11 Operating the appliance... -
Page 4: Safety Precautions
Safety precautions Symbols used the appliance and have un- derstood the hazards in- Symbol ISO 7010 W021 WARNING: Risk of fire / flammable volved. Children shall not play materials with the appliance. Cleaning Denotes important safety precau- and user maintenance shall tions. -
Page 5: Instructions For Use
1 Safety precautions from the mains to avoid the ▪ Do not use or store flam- possibility of electric shock. mable materials in the appli- Have a registered gas fitter ance storage drawer or near disconnect the appliance this appliance. from the gas supply. - Page 6 1 Safety precautions the appliance. If the appliance is not ▪ Do not store or use corrosive, chemical working properly or in case a repair is or flammable cleaning agents or needed, follow the instructions given in products underneath or near to this the «Service and support»...
-
Page 7: Warnings
1 Safety precautions ▪ Do not cut or prepare food on the sur- ▪ Ensure that the appliance is kept clean. face and avoid impact with hard ob- If the ignition sparkers or thermo- jects. Do not drag cookware across the couples are dirty, the burners will not surface. -
Page 8: Using For The First Time
Using for the first time The appliance must be installed and connected to the electricity and gas supply in accordance with the separate installation instructions. Have a certified installer carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. -
Page 9: Operating Elements

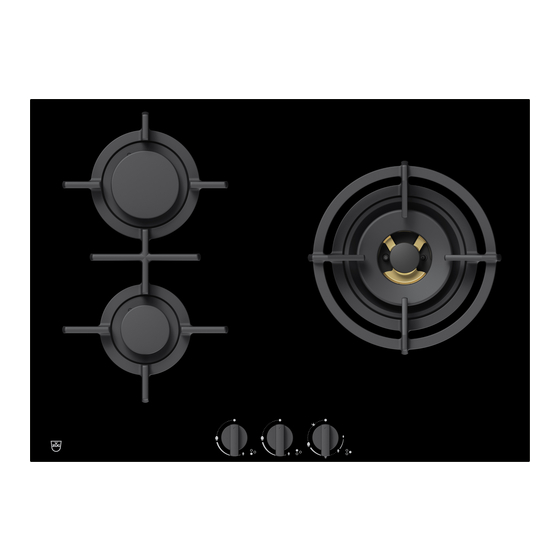

3 Appliance description GAS641GKAZ ▪ 2 standard burners (left) ▪ 1 rapid burner (top right) ▪ 1 economy burner (bottom right) Operating elements Wok burner Standard/Rapid burner Control knob Off position Ignition position Burner power: inside max. / outside max. Burner power: inside max. -
Page 10: Gas Burners
3 Appliance description Gas burners A symbol next to each control knob indicates which cooking zone is being operated. Wok burner Standard/Rapid burner The pan supports and all the parts of the burners must be positioned correctly in order that the appliance can be operated correctly. Do not swap the burner caps around. Standard/Rapid burner 1 Burner cap 2 Pan support... -
Page 11: Safety System
3 Appliance description Safety system The appliance has a safety system which continuously monitors the flame of each burner. It prevents the flow of gas if a burner accidentally goes out. Wok burner Standard / Rapid burner Ignition sparker Thermocouple Ignition sparker Thermocouple Cookware... - Page 12 3 Appliance description Mocha support The mocha support is included in the scope of delivery with certain appliances. It is also available as an accessory. ▪ The mocha support is only suitable for use with mocha coffee makers and pots with a diameter of at least 8 cm.
-
Page 13: Operating The Appliance
4 Operating the appliance Ensure that the cookware does not protrude over the edge of the hob. ▪ Place pans on the pan supports, never directly on the burners. ▪ Make sure that the pan supports, the gas burners and the burner caps are positioned correctly before use. -
Page 14: Power Levels
4 Operating the appliance Power levels The progressive control knobs can be used to precisely control the power needed. Position Off position Spark Ignition position for wok burner High flame Max. power Low flame Min. power Wok burner ▪ Outer and inner flame at maximum power. -
Page 15: Cooking Guidelines
5 Care and cleaning Cooking guidelines Burner Max. position Medium position Min. position Wok burner Cooking and Stewing, Heating up and flash-frying reducing keeping food warm and continued Rapid burner Frying and deep frying Steaming cooking Standard burner Cooking, steaming Reheating and braising and keeping food warm... -
Page 16: Trouble-Shooting
6 Trouble-shooting Trouble-shooting What to do if … … the ignition is not working? Possible cause Solution ▪ Food or cleaning product ▸ Clean the area between the ignition sparker and residue stuck between the the burner. ignition sparkers and the burners. -
Page 17: Accessories And Spare Parts
7 Accessories and spare parts Ventilate the room well! ... a burner immediately switches off after releasing the control knob? Possible cause Solution ▪ The control knob was not ▸ When the burner ignites, still keep the control pressed for long enough. knob depressed for a few seconds. -
Page 18: Technical Data
8 Technical data Technical data Product fiche Model number 31075 Type designation GAS731GKBZ Type of burner Rapid Standard Total Nominal heat input (MJ/h) 24.0 11.5 42.0 Natural gas, 1.0 kPa Nominal heat input (MJ/h) 20.0 10.0 35.8 Universal liquid gas, 2.75 kPa Model number 31089 Type designation... - Page 19 9 Disposal ▪ The appliance must be disposed of in accordance with local regulations on waste dis- posal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.
-
Page 20: Index
Index Appliance overview ..........9 Technical questions......... 23 Appliance-specific safety precautions Trouble-shooting ..........16 ................ 5 Type............... 2 Care..............15 Using for the first time........8 Cleaning............. 15 Cooking guidelines.......... 15 Cookware ............11 Validity..............2 Disconnection........... 18 Warranty extensions ........23 Disposal............. -
Page 21: Notes
Notes... -
Page 23: Service & Support
V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements. - Page 24 ▸ Hold the control knob depressed until the flame ignites. ▸ Select the desired power level. Switching a cooking zone off ▸ Turn the control knob for the burner in a clockwise direction as far as the position. 1014401-R05 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
