- Page 1 Operating instructions Multi-slider GAS411/421/951 Gas hob...
- Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Type Model number Appliance class GAS411GSBZ 31063 Class 3 DIN EN 30-1-1 GAS421GSBZ 31064 GAS951GSBZ 31072 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Trouble-shooting 23 Symbols used............ 4 Accessories and spare parts 25 General safety precautions........ 4 Technical data 26 Appliance-specific safety precautions .... 4 Product fiche ............ 26 Instructions for use.......... 5 Disposal 27 Warnings .............. 7 Index 28 Using for the first time... -
Page 4: Safety Precautions
Safety precautions Symbols used with the appliance. Cleaning and user maintenance shall Denotes important safety precau- tions. not be undertaken by children Failure to observe said precautions without supervision. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that... -
Page 5: Instructions For Use
1 Safety precautions Have a registered gas fitter Instructions for use disconnect the appliance Operate the appliance competently from the gas supply. and follow the advice given in the «Appliance description» (see page ▪ WARNING: The appliance 9) section. and its accessible parts get Before using for the first time hot during use. - Page 6 1 Safety precautions ▪ The appliance corresponds to recog- ▪ Exercise care when touching cookware nized technology standards and the rel- handles as they can become hot. evant safety regulations. However, Caution: Risk of injury! proper use of the appliance is essential ▪...
-
Page 7: Warnings
1 Safety precautions ▪ Moving pans and cookware around causes scratches. This can be largely prevented by lifting pans and cookware up and then placing them down in posi- tion. ▪ The hob is designed to be used – signs of use, such as scratches or the wear and tear from pans and cookware, are normal. -
Page 8: Using For The First Time
Using for the first time The appliance must be installed and connected to the electricity and gas supply in accordance with the separate installation instructions. Have a certified installer carry out the necessary work. During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. -
Page 9: Appliance Description

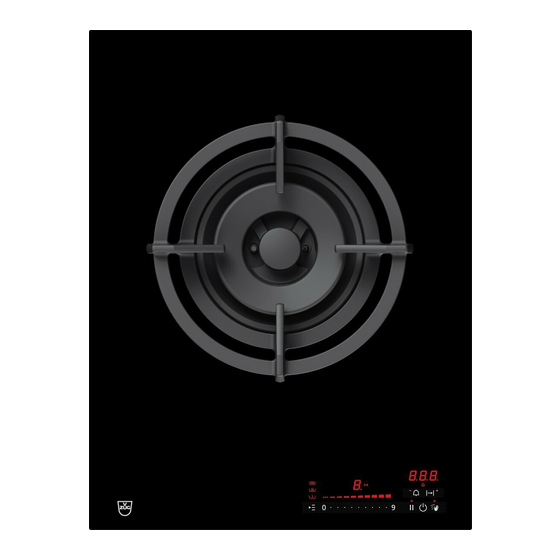

3 Appliance description Appliance description Appliance overview GAS411GSBZ ▪ 1 wok burner GAS421GSBZ ▪ 1 rapid burner (top) ▪ 1 standard burner (bottom) GAS951GSBZ ▪ 1 wok burner (left) ▪ 1 rapid burner (top right) ▪ 2 standard burners (centre) ▪... -
Page 10: Operating And Display Elements
3 Appliance description Operating and display elements Control buttons Timer – Function as minus button in operating time / timer mode Operating time – Function as plus button in operating time / timer mode Multi-function button – duty-cycle function selection Slider (for setting the power level) Pause cooking ON/OFF and restore function Appliance ON/OFF... -
Page 11: Gas Burners
3 Appliance description Gas burners The pan supports and all the parts of the burners must be positioned correctly in order that the appliance can be operated correctly. Do not swap the burner caps around. Standard/Rapid burner 1 Burner cap 2 Pan support 3 Flame spreader 4 Standard/Rapid burner... -
Page 12: Safety System
3 Appliance description Safety system The appliance has a safety system which continuously monitors the flame of each burner. It prevents the flow of gas if a burner accidentally goes out. If the flame does not touch the thermocouple, the appliance automatically attempts to ig- nite a flame again. - Page 13 3 Appliance description Wok extension ring ▪ The wok extension ring is only suitable for use with round bottom cookware with a diameter of over 26 cm. Mocha support The mocha support is included in the scope of delivery with certain appliances. It is also available as an accessory.
- Page 14 3 Appliance description Note on use The following tips will help you to save energy and prevent damaging the cookware and the appliance: ▪ The diameter of the base of the cookware should correspond to the size of the relevant burner.
-
Page 15: Operating The Appliance
4 Operating the appliance Operating the appliance Switching the appliance on and off All the appliances are operated in the same way. ▸ To switch the appliance on: Depress the button for 1 second. – flashes in all the power level displays. –... -
Page 16: Bridging Function
4 Operating the appliance Select suitable cookware and burner for the amount of food being used. Bridging function Only applies to appliances GAS641/GAS951 The bridging function allows two standard burners lying one behind the other to be switched on together and to be regulated together. Switching the bridging function on ▸... -
Page 17: Simmer Function
4 Operating the appliance Simmer function With the simmer function , sausages, dumplings and stuffed pasta, for instance, can be cooked in hot water, just below boiling point. Switching the simmer function on ▸ Touch the button 3×. – The symbol illuminates. - Page 18 4 Operating the appliance Setting the operating time ▸ Select the required cooking zone. ▸ Touch the button. – flashes in the display. ▸ Touch the slider for the required cooking zone. – The symbol for the cooking zone selected illuminates. –...
-
Page 19: Timer
4 Operating the appliance To display another operating time: ▸ Touch the button. ▸ Touch the slider for the required cooking zone. – The operating time is displayed and can be changed. 4.12 Timer The timer functions like an egg timer (1 min.–9 hrs. 59 mins.). It can be used at any time and independently of all other functions. -
Page 20: Pause Cooking
4 Operating the appliance Operating the appliance with the childproof lock activated ▸ Switch the appliance on. ▸ Touch the buttons at the same time. – An acoustic signal is emitted. – The childproof lock is overridden. The appliance can now be used as normal. The childproof lock is reactivated within one minute of switching off the appliance. -
Page 21: User Settings
5 User settings Press the button to switch the appliance off at any time. User settings The following user settings can be set and saved individually: User setting Default value Factory setting Acoustic signal volume Medium High Acoustic signal No acoustic signal at end of operating Automatically off after 10 secs. -
Page 22: Care And Cleaning
6 Care and cleaning Saving entry ▸ Hold the button depressed for 2 seconds. – An acoustic signal is emitted. – The «User settings» mode is ended. Cancelling user settings ▸ Press the button. – Any changes made to the default values are not saved. –... -
Page 23: Trouble-Shooting
7 Trouble-shooting Trouble-shooting What to do if … … the ignition is not working? Possible cause Solution ▪ Food or cleaning product ▸ Clean the area between the ignition sparker and residue stuck between the the burner. ignition sparkers and the burners. - Page 24 7 Trouble-shooting Ventilate the room well! illuminates in the displays? Possible cause Solution ▪ The childproof lock is activ- ▸ For operating the appliance with the childproof ated. lock activated, see «Operating the appliance» section. ▸ Switch the childproof lock off..
-
Page 25: Accessories And Spare Parts
8 Accessories and spare parts … and a number illuminate in the display? Possible cause Solution ▪ Internal error occurred. ▸ Check the gas supply. ▸ Clean the thermocouples. ▸ Quit error message (confirm using the slider). ▸ Switch the hob off, allow it to cool down and then switch it back on again. -
Page 26: Technical Data
9 Technical data Standard / Rapid burner Technical data Product fiche Model number 31063 Type designation GAS411GSBZ Type of burner Nominal heat input (kW)* Singapore town gas G110, 10 mbar Nominal heat input (kW)* Singapore liquid gas G30/31, 29 mbar mbar/rating (g/h) Model number 31064... - Page 27 10 Disposal Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an envir- onmentally friendly way. Disconnection Safety ▪ Disable the appliance to prevent accidents caused by improper use, especially through children playing.
- Page 28 Index Control buttons.......... 10 Display ............ 10 Appliance Operating time..........17 Switching on and off ........ 15 Changing............ 18 Appliance overview ..........9 Finished ............ 18 Appliance-specific safety precautions Setting............ 18 ................ 5 Several operating times...... 18 Automatic boost ..........17 Switching off before time ......
- Page 29 Notes...
- Page 31 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
- Page 32 ▸ Touch the slider for the required cooking zone or swipe it to set the power level. To switch cooking zone off ▸ Touch power level 0 on the slider. To switch appliance off ▸ Touch the button. 1058591-R01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
