INSTALLATION INSTRUCTIONS

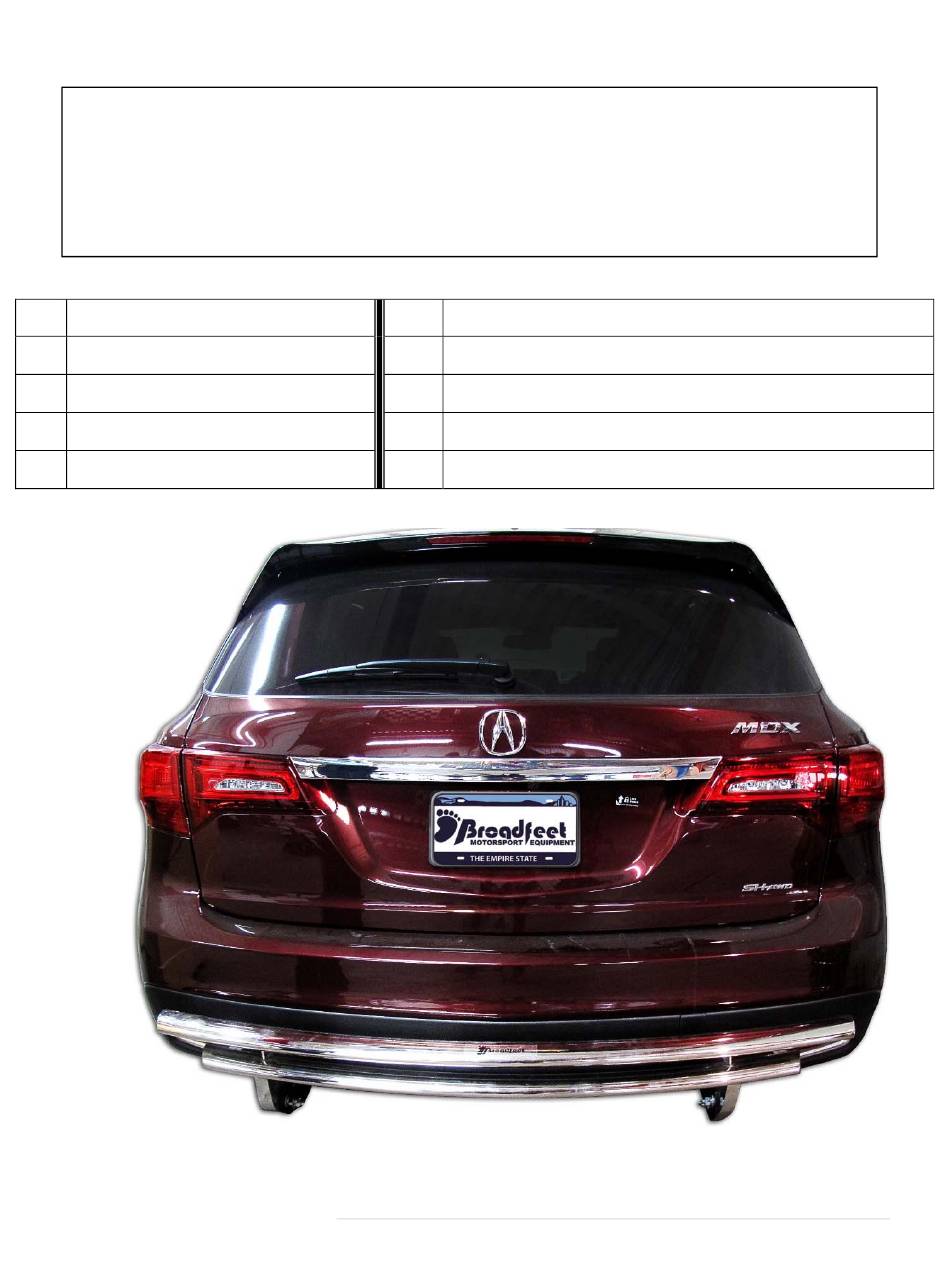

REAR BUMPER GUARD – DOUBLE LAYER PART# RDAC-114-55
Qty
Hardware
2
Mounting Brackets
4
Screw [ to the chassis ]
4
Flat Washer [ to the chassis ]
4
Lock Washer [ to the chassis ]
© Broadfeet Motorsport Equipment
2014-2015 ACURA MDX
Qty
Hardware
4
Screw [ for the bar to the brackets ]
8
Flat Washer [ for the bar to the brackets ]
4
Lock Washer [ for the bar to the brackets ]
4
Nut [ for the bar to the brackets ]
1 |
P a g e
