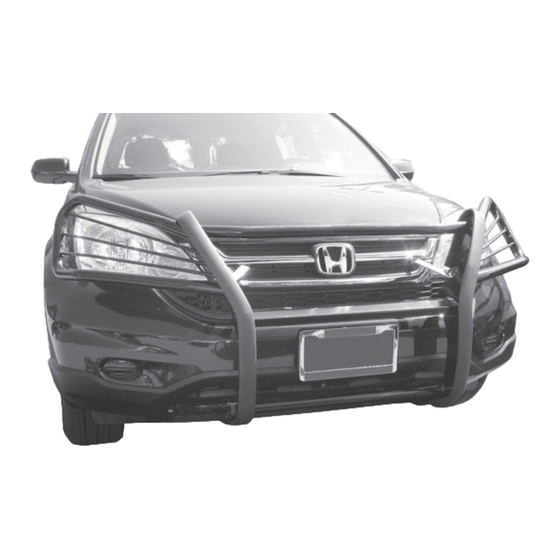

Grille Guard for Honda CRV 2010-2011
Fits:
Qty
1
Grille Guard
1
Passenger Side Moun ng Bracket
1
Driver Side Moun ng Bracket
1
Passenger Side Top Bracket
1
Driver Side Top Bracket
4
12-1.75mm x 30mm Hex Bolts
8
12mm x 32mm OD x 3mm Flat Washers
4
12mm Nylon Lock Nuts
2
10-1.5mm x 20mm x 70mm x 6mm Nut Plates
2
10-1.50mm x 25mm Bu on Head Allen Bolts
TOLL FREE SUPPORT: 866 638 4870
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
INSTALLATION PROCEDURE:
1. Use a flat blade screwdriver to carefully remove all fasteners from the p
between the radiator and the grille. Also remove the lower splash guard under the vehicle. NOTE: Pay close
a en on to the type and loca on of all factory fasteners to make reinstalla on easier. Move the (2) pl
covers to clean, stable work area.
2. Select the driver side Frame Moun ng Bracket and insert it into posi on above the crossmember. Line up the
rear moun ng hole with the factory hole in the frame and temporarily bolt the Bracket into posi on with the
included (1) 10mm x 25mm Hex Bolt, (2) 10mm x 20mm Flat Washers and (1) 10mm Nylon Lock Nut, (Figure 1).
Page 1 of 4
G r i l l G u ar d
PART NUMBER: WCHO-281-21-10S
Part Description
Passenger Side Top
Mounting Bracket
Passenger Side Frame
Mounting Bracket
REMOVE CONTENTS FROM BO X. VERIFY ALL PARTS ARE PRESENT
PARTS LIST:
Qty
2
10-1.50mm x 40mm Hex Bolts
2
10-1.50mm x 25mm Hex Bolts
4
10mm x 30mm OD x 2.5mm Large Flat Washers
8
10mm x 20mm OD x 2mm Flat Washers
2
10mm Lock Washers
4
10mm Nylon Lock Nuts
2
8-1.25mm x 25mm Hex Bolts
4
8mm ID x 24mm OD x 2mm Flat Washers
2
8mm Nylon Lock Nuts
Install Time
Install Note
Driver Side Top
Mounting Bracket
Driver Side Frame
Mounting Bracket
Part Description
: 120 - 240 Minutes
(Professional Installation)
: Cu ng request
c cover on the top or the radiator,
c
Advertisement
Table of Contents
Related Manuals for Broadfeet WCHO-281-21-10S
Summary of Contents for Broadfeet WCHO-281-21-10S
- Page 1 G r i l l G u ar d PART NUMBER: WCHO-281-21-10S Grille Guard for Honda CRV 2010-2011 Fits: PARTS LIST: Part Description Part Description Grille Guard 10-1.50mm x 40mm Hex Bolts Passenger Side Moun ng Bracket 10-1.50mm x 25mm Hex Bolts Driver Side Moun ng Bracket 10mm x 30mm OD x 2.5mm Large Flat Washers...
- Page 2 Do not tighten hardware at this time. Line up the forward hole with the hole in the lower radiator core support. Insert the (1) 10mm Nut plate in from behind the crossmember and line up the threaded hole with the hole in the crossmember.
- Page 3 4. Slide the Driver Side Mounting Bracket through the slot cut in the middle of the splash guard and position the Bracket up to the front mounting location. Bolt the Bracket in position as described in Step 3. Repeat this step for passenger side Mounting Bracket installation.
- Page 4 (1) 10mm x 25mm Button Head Allen Bolt (2) 10mm x 20mm Flat Washers (1) 10mm Nylon Lock Nut Front Fig 7 9. Level and adjust the Grille Guard and tighten all hardware. 10. Carefully place the plastic top radiator cover in position and mark the areas that will need to be cut from the plastic cover to clear the (2) Top Brackets.
