Hardware Included:
NO.
NAME
①
Rear Guard
②
Bracket
③
Small Tube
④
T Bolt 6-3
⑤
Hexagon Bolt
Attention:
Please read this installation menu before installing this part. Protect your car properly in case
there is any scratch might have.
You may need to periodically to re-tighten all hardware for safety use after installation.
Installation pictures are only for your reference, there might be some differences between
pictures and real parts but no affect for your fitting.
Broadfeet Motorsport Equipment
Part Identification Number: RDJP-343-55-40S
QTY
REMARK
1
2
2
2
67*M12*40
M12*130*40-4.8 （ half thread ）
2

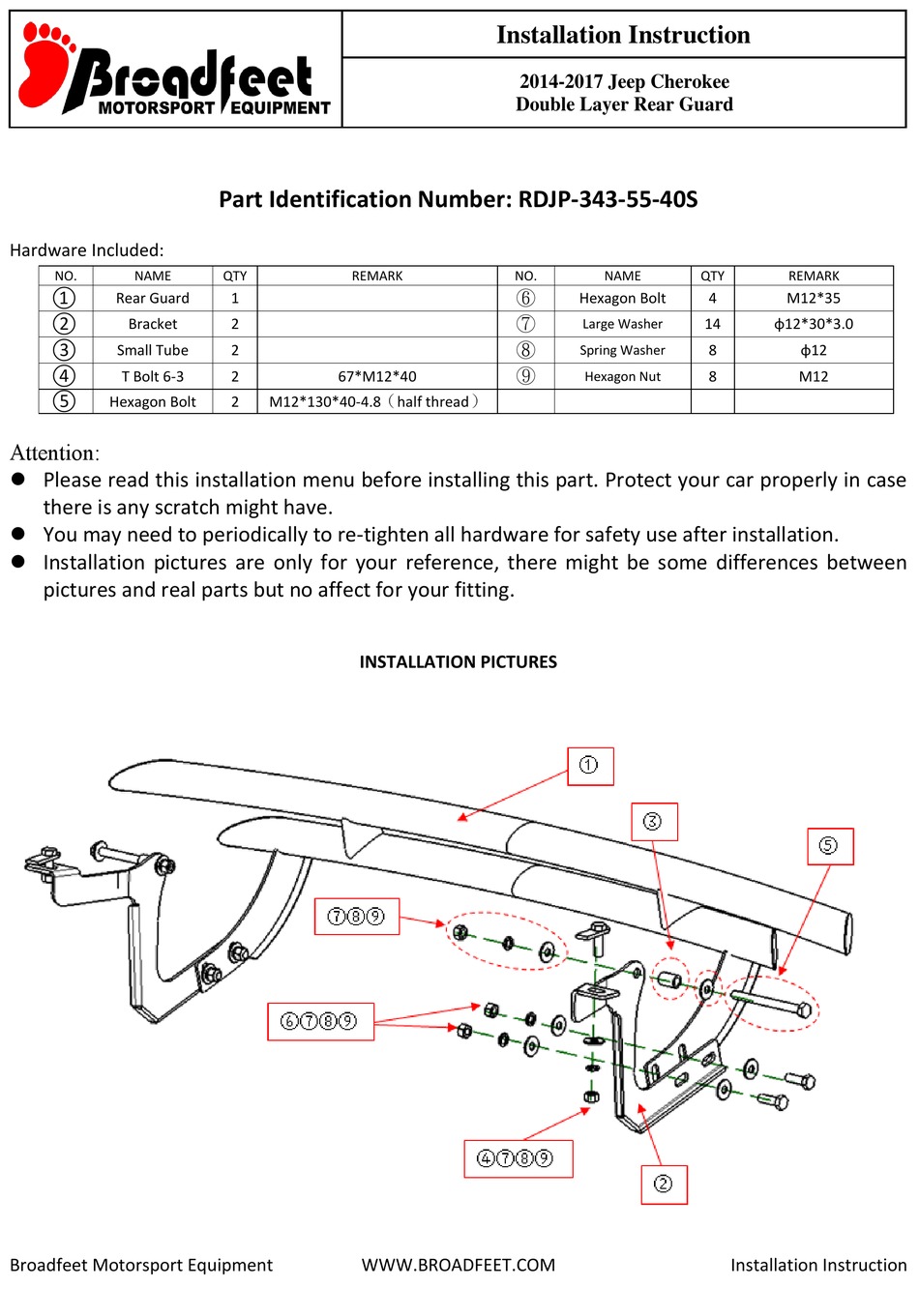

INSTALLATION PICTURES
WWW.BROADFEET.COM
Installation Instruction
2014-2017 Jeep Cherokee
Double Layer Rear Guard
NO.
NAME
⑥
Hexagon Bolt
⑦
Large Washer
⑧
Spring Washer
⑨
Hexagon Nut
QTY
REMARK
4
M12*35
14
φ12*30*3.0
8
φ12
8
M12
Installation Instruction
Advertisement
Table of Contents
Related Manuals for Broadfeet RDJP-343-55-40S
Summary of Contents for Broadfeet RDJP-343-55-40S
- Page 1 Installation Instruction 2014-2017 Jeep Cherokee Double Layer Rear Guard Part Identification Number: RDJP-343-55-40S Hardware Included: NAME REMARK NAME REMARK ⑥ ① Rear Guard Hexagon Bolt M12*35 ⑦ ② Bracket φ12*30*3.0 Large Washer ⑧ ③ Small Tube Spring Washer φ12 ⑨...
- Page 2 Step 4: Check if all hardware are installed and then tighten all to complete the installation. Disclaimer: Caused due to improper installation initiates some related problem and losses, are beyond our company’s quality assurance. Broadfeet Motorsport Equipment WWW.BROADFEET.COM Installation Instruction...
