Hardware Included:
No.
NAME
①
Nudge Bar
②
Bracket(left)
③
Bracket(right)
④
T Bolt
⑤
Plastic Fixture
⑥
Large Washer
⑦
Spring Washer
⑧
Hexagon Nut
Attention:
Please read this installation menu before installing this part. Protect your car properly in case
there is any scratch might have.
You may need to periodically to re-tighten all hardware for safety use after installation.
Installation pictures are only for your reference, there might be some differences between
pictures and real parts but no affect for your fitting.
Broadfeet Motorsport Equipment
Part Identification Number: DCNI-523-32S
QTY
REMARK
1
1
1
2
M8x30
2
Φ8
2
φ8x25x2.0
2
φ8
2
M8

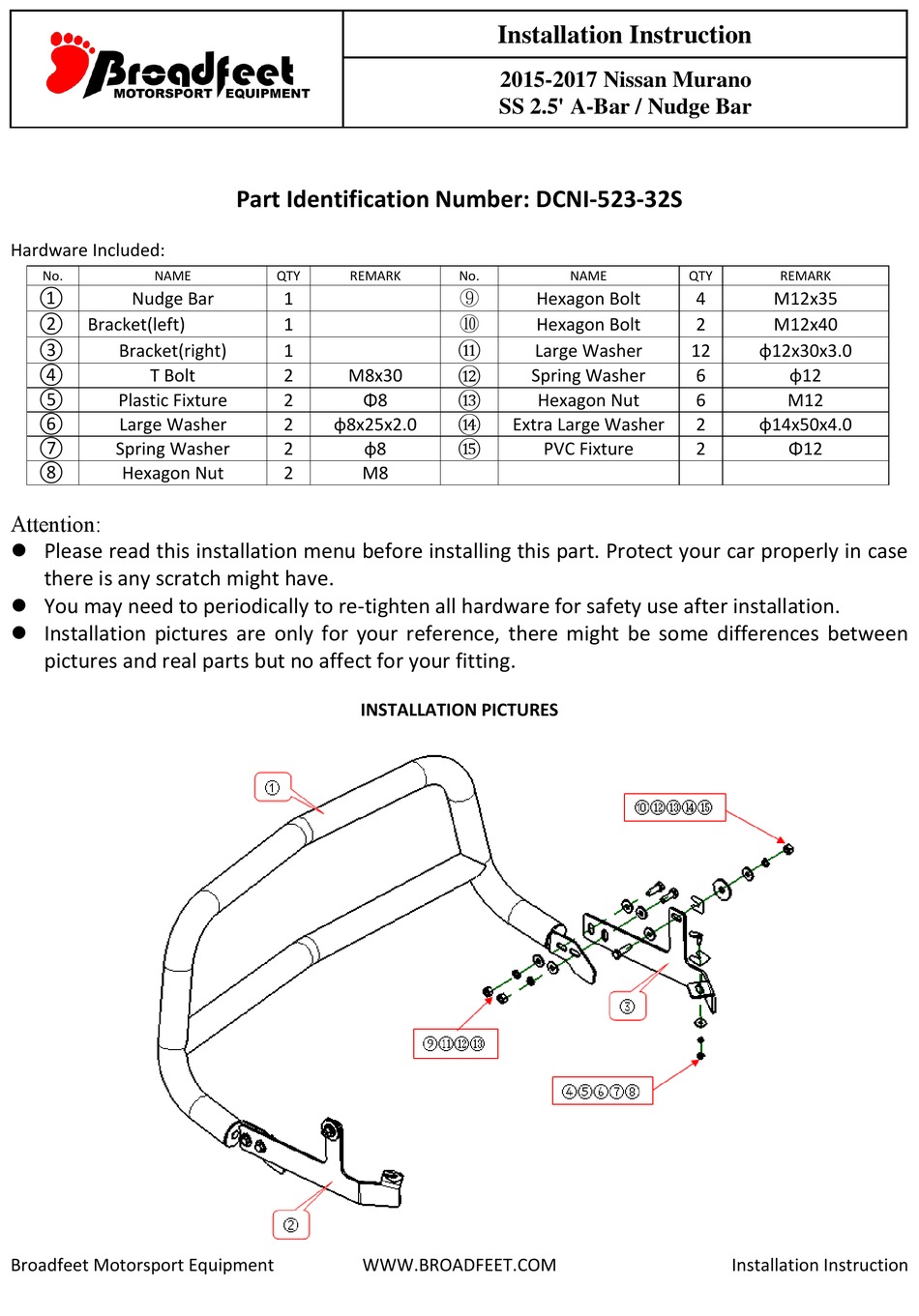

INSTALLATION PICTURES
WWW.BROADFEET.COM
Installation Instruction
2015-2017 Nissan Murano
SS 2.5' A-Bar / Nudge Bar
No.
NAME
⑨
Hexagon Bolt
⑩
Hexagon Bolt
⑪
Large Washer
⑫
Spring Washer
⑬
Hexagon Nut
⑭
Extra Large Washer
⑮
PVC Fixture
QTY
REMARK
4
M12x35
2
M12x40
12
φ12x30x3.0
6
φ12
6
M12
2
φ14x50x4.0
2
Φ12
Installation Instruction
