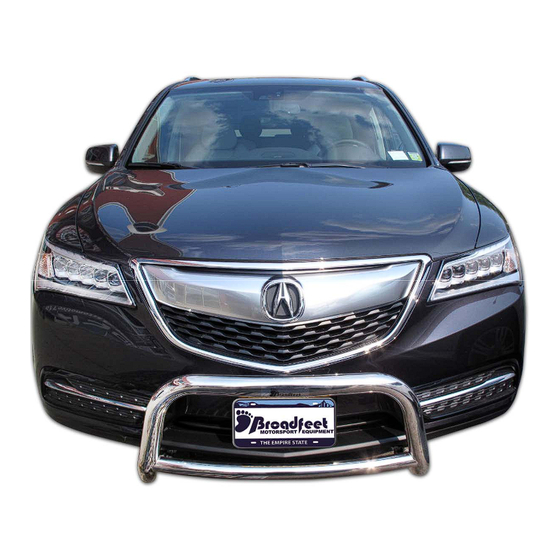

- Page 1 INSTALLATION INSTRUCTIONS 2014-2015 ACURA MDX A-BAR PART# DCAC-114-32 Hardware Hardware Mounting Brackets Screw Flat Washer Lock Washer P a g e © Broadfeet Motorsport Equipment...
- Page 2 STEP2: Starting from the Driver Side, remove the factory screw shown on Fig1. Fig 1 STEP3: Cutting on the skid shield for approximately 3” wide and 5” long as shown on Fig2. 3” 5” Fig 2 P a g e © Broadfeet Motorsport Equipment...
- Page 3 STEP6: Apply WD-40 on the factory screws. And firstly put back the screw on the left [Marked: B], secondly put back the screw on the right [Marked: A]. Lastly, put back the factory screw removed from step2 [Marked: C]. (Fig4) P a g e © Broadfeet Motorsport Equipment...
- Page 4 Lock Washers and 2 Nuts on each side. Tighten all hardware at the end to finish the installation. (Fig5, Fig6) Fig 5 Driver Side installation finished Fig 6 Driver Side installation finished P a g e © Broadfeet Motorsport Equipment...
