Broadfeet SBNI-542-71S Installation Instructions

Hardware Included:

NO. NAME
①
Side Bar
②
Front Bracket
③
Rear Bracket
④
Connector
⑤
T Bolt 14-1
⑥
PVC Fixture
⑦
Large Washer
⑧
Spring Washer
⑨
Hexagon Nut
Note: It is the same way to install the both sides.

Attention:

 Please read this installation menu before installing this part. Protect your car properly in case
there is any scratch might have.
 You may need to periodically to re-tighten all hardware for safety use after installation.
 Installation pictures are only for your reference, there might be some differences between
pictures and real parts but no affect for your fitting.
Broadfeet Motorsport Equipment
Part Identification Number: SBNI-542-71S
QTY REMARK
2
2
2
2
2
4 φ12 δ0.7*35*35
φ12*35*3.0
4
φ12
4
4 M12

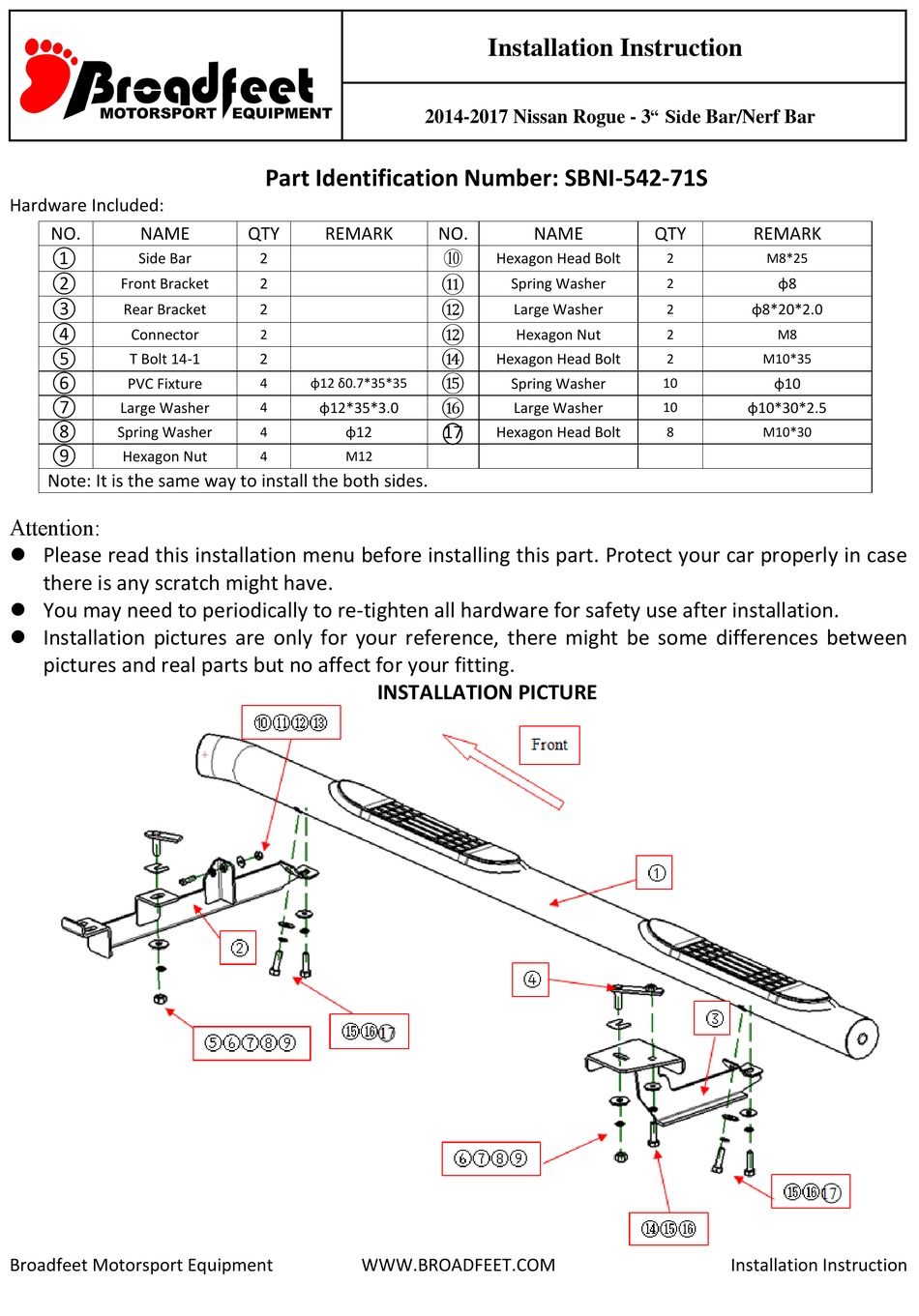

INSTALLATION PICTURE
