Replacing the Quantum Ultra Power Supplies (Continued)
As you rotate the lever, the power supply slides to the right. If necessary, continue sliding the PSU to the right as far as
4.
possible (see figure 2,

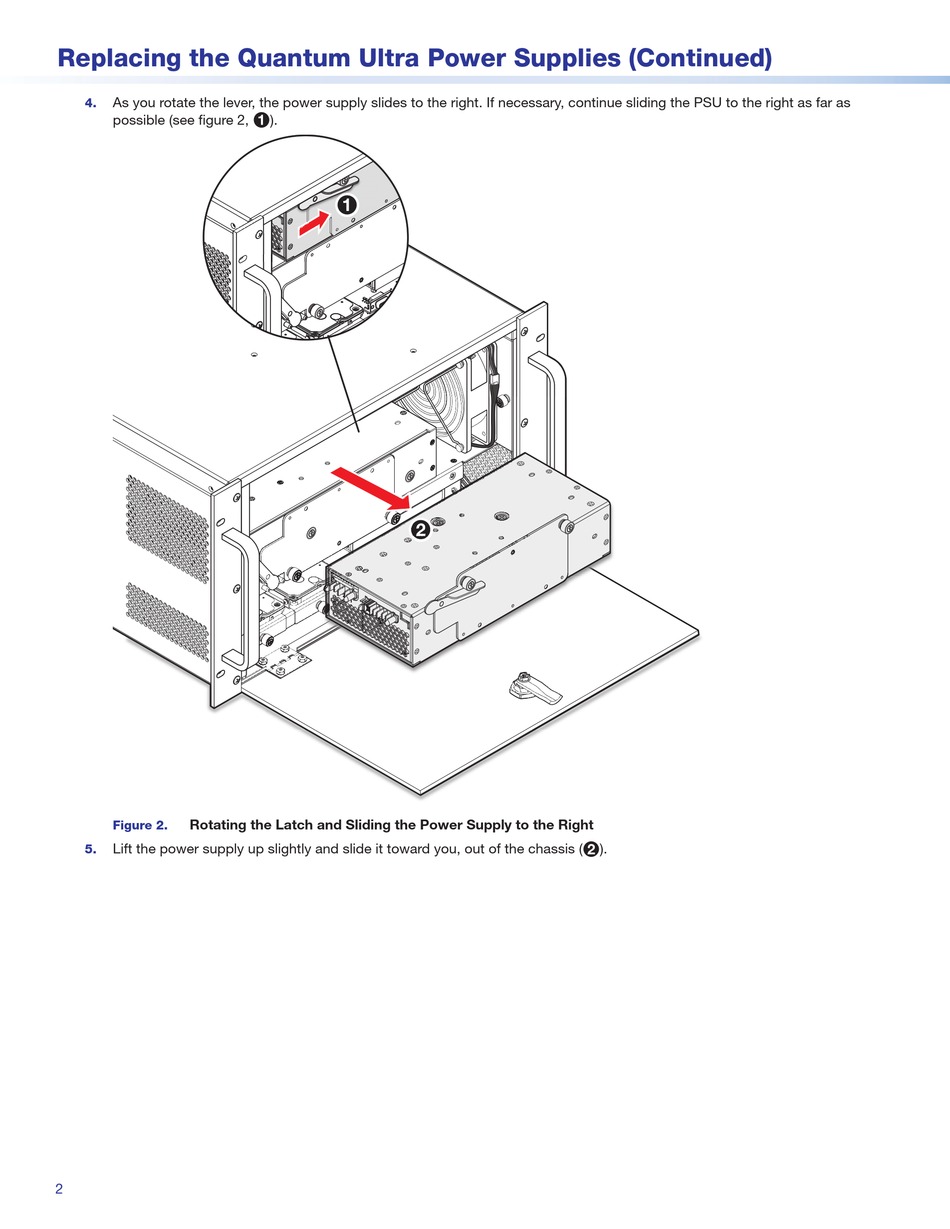

Rotating the Latch and Sliding the Power Supply to the Right
Figure 2.
Lift the power supply up slightly and slide it toward you, out of the chassis (
5.
2
).
1
1 1
2 2
).
2
