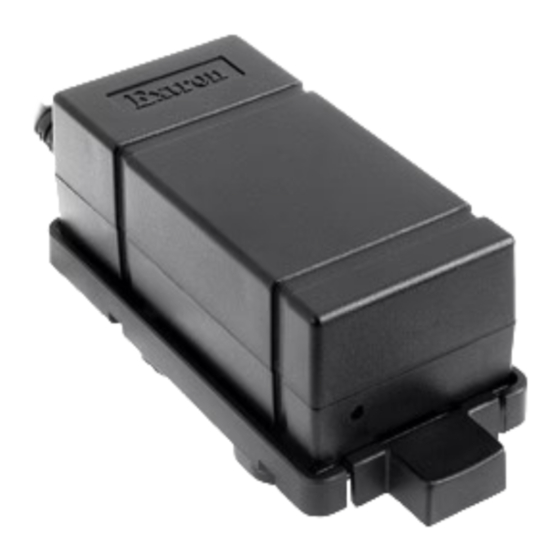

Extron electronics PS 1210 Installation Manual

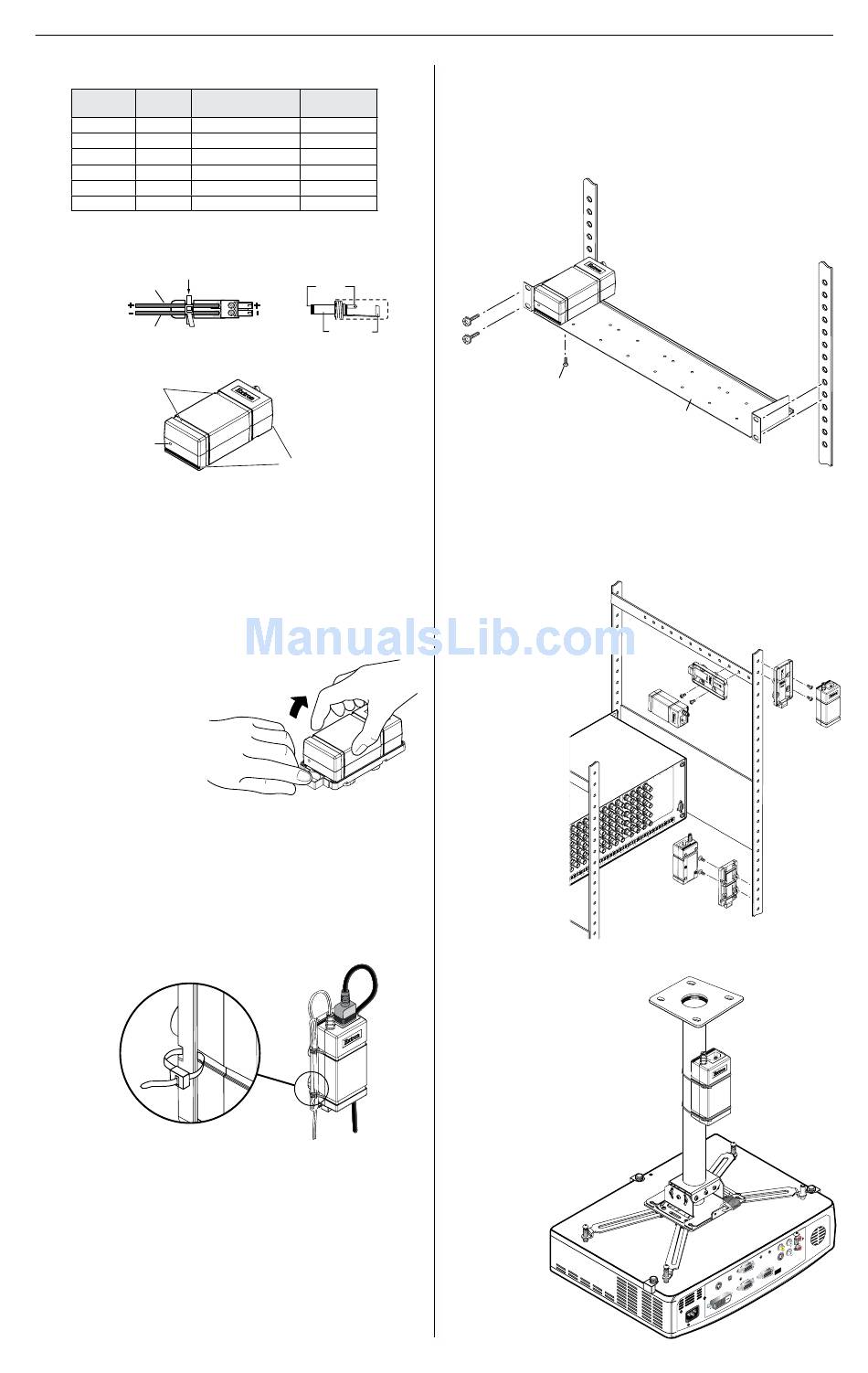

Extron External Power Supply Installation Guide
About PS 910, PS 1210, PS 1508 Power Supplies
Model Part
Number
PS 910C 70-774-01
PS 910P 70-777-01
PS 1210C 70-775-01
PS 1210P 70-778-01
PS 1508C 70-776-01 12 watts, 15 VDC, 0.8 A
ZipClip 100 101-002-01
™
Connector pin assignments
PS 910C, PS 1210C, PS 1508C
Tie Wrap
Smooth
Power Supply
Output Cord
Ridged
Features
Notches for Securing
Tie Wrap
Power
LED
Using the ZipClip 100
Attaching/removing the clip and power supply
To attach the power supply to the ZipClip 100 mounting clip:
1.
Insert the bottom of the power supply down into the clip,
starting with one end.
2.
Pivot the other end down and press until the clip snaps into
place.
To remove the power supply from the ZipClip:
1.
Press the ZipClip's tab.
2.
Pivot the power supply
and lift it out of the
ZipClip.
Using tie wraps for cable strain relief
1.
Attach the power supply to the ZipClip 100 mounting clip as
described previously.
2.
Fastening the power output cord to the ZipClip base.
a. Insert tie wraps along the notches on the side of the power
supply and through the ZipClip's tie wrap anchor points,
then around the cord.
b. Connect pull the tie wrap until secure. Do not over tighten.
Power Output Termination
9 watts, 9 VDC, 1 A Captive screw
9 watts, 9 VDC, 1 A DC plug
12 watts, 12 VDC, 1 A Captive screw
12 watts, 12 VDC, 1 A DC plug
Captive screw
— —
PS 910P, PS 1210P
Tip (+)
Captive Screw
Sleeve (-)
Connector
ZipClip Mounting Slots
2
1

Rack Mounting

Mounting to a rack shelf
These power supplies are one eighth rack wide. Up to eight power
supplies can be mounted side by side on a rack shelf.
1.
Align the threaded holes in the bottom of the power supply with
the holes in an Extron rack shelf and fasten the supply to the
shelf with two screws as shown below.
2
1
(2) 4-40 x 3/16"
Screws
2.
Bolt the rack shelf to the rack.
Mounting to rack rails using a ZipClip
1.
Fasten the ZipClip 100 mounting clip to a rack beam using two
rack screws, as shown below.
2.
Insert the bottom of the power supply down into the clip, starting
with one
end.
3.
Pivot the
other end
toward
the clip
and press
until
the clip
snaps
into
place.
1
Pole or Table Leg Mounting
1.
Wrap a tie wrap around
the projector mount
pole or table leg and the
power supply at one of
the tie wrap notches,
Cable
and fasten the tie wrap
Strain
Relief together to secure the
power supply to the
pole or table leg.
2.
Repeat step 1 at the
other tie wrap notch.
Extron PS 910, PS 1210, PS 1508 Series Installation Guide
Rack Mounted
VersaTools Rack Shelf
®
Side of Rack
8
7
6
5
4
3
2
1
12
11
10
9
8
7
6
5
4
3
2
Inside a Rack
Back of Rack
Tie Wrap to Pole
68-1575-01 Rev. A
05 08
1
