INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

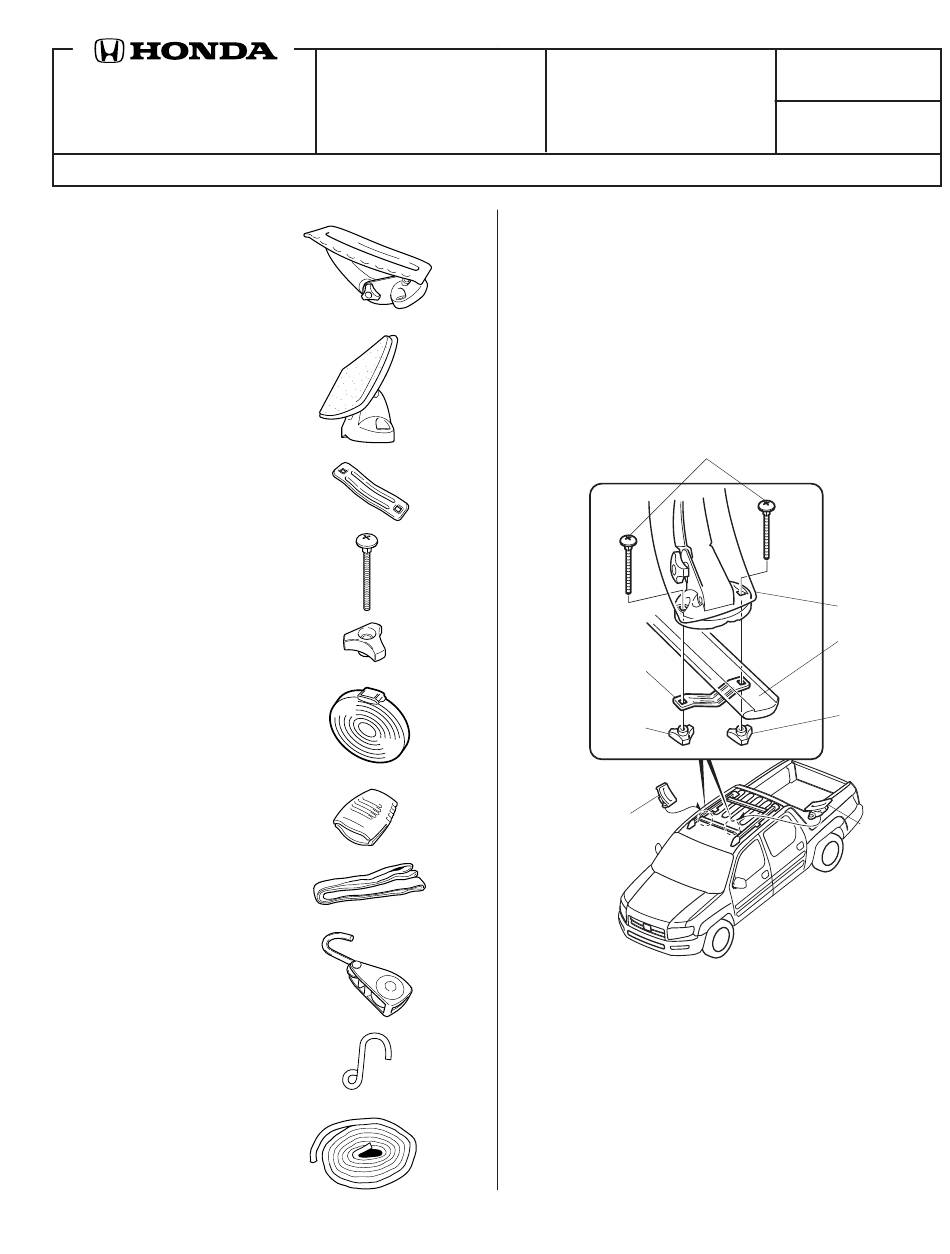

PARTS LIST
2 Saddles
2 Hydro-glide assemblies
4 Brackets
8 Bolts
8 Knobs
2 Straps with buckle
2 Buckle covers
2 Attachment straps
2 Ratchet hooks
2 Hooks
2 Pieces of rope
© 2011 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
KAYAK ATTACHMENT
P/N 08L09-TA1-100
INSTALLATION
NOTE: Be careful not to damage the finished surfaces
of the body when installing the kayak attachment.
1.
AII 46956 (1111)
Application
2012 RIDGELINE
Position the two saddles on the front crossbar.
Loosely install the saddles using one bracket, two
bolts, and two knobs for each saddle. The
distance between the two saddles should be the
same as the width of the kayak.
BOLTS
BRACKET
KNOB
SADDLE
Publications No.
AII 12025
Issue Date
NOV 2011
SADDLE
CROSSBAR
KNOB
SADDLE
4617010Y
1 of 4
08L09-TA1-1000-91
