Honda 08L02-SZA-110A Installation Instructions

Honda 08L02-SZA-110A Installation Instructions

Roof rails for 2015 pilot

Advertisement

www.collegehillshonda.com
INSTRUCTIONS

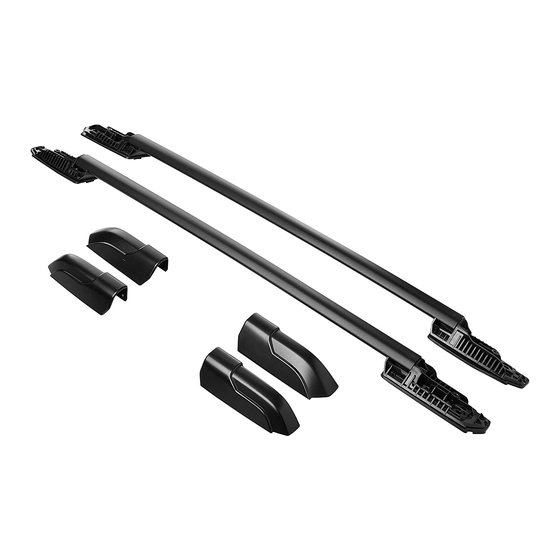

PARTS LIST

Left roof rail
Right roof rail
Left front roof rail cover
Right front roof rail cover
Left rear roof rail cover
Right rear roof rail cover
8
Torx nuts
4
Roof molding clips
© 2014 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
ROOF RAILS
P/N 08L02-SZA-110A

TOOLS AND SUPPLIES REQUIRED

Phillips screwdriver
Flat-tip screwdriver
Shop towel
Needle nose pliers
T-30 Torx driver
Tape measure
File
Drill
3 mm and 10 mm Drill bits
Pushpin
Eye protection (face shield, safety goggles, etc.)
The following tools are available through the Honda Tool
and Equipment Program. On the iN, click on: Service >
Service Bay > Tool and Equipment Program, then enter
the number under "Search." Or, call 888-424-6857.
Air saw (Snap-on AT192A)
Plastic trim tool (T/N SILTRIMTL10)

Illustration of the Roof Rails on the Vehicle

AII 51578 (1405)
Application
Publications No.
2015 PILOT
LEFT
RIGHT
ROOF RAIL
ROOF RAIL
08L02-SZA-1A00-90
AII 51578
Issue Date
MAY 2014
QA31001AE
1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 08L02-SZA-110A and is the answer not in the manual?

Questions and answers

Summary of Contents for Honda 08L02-SZA-110A

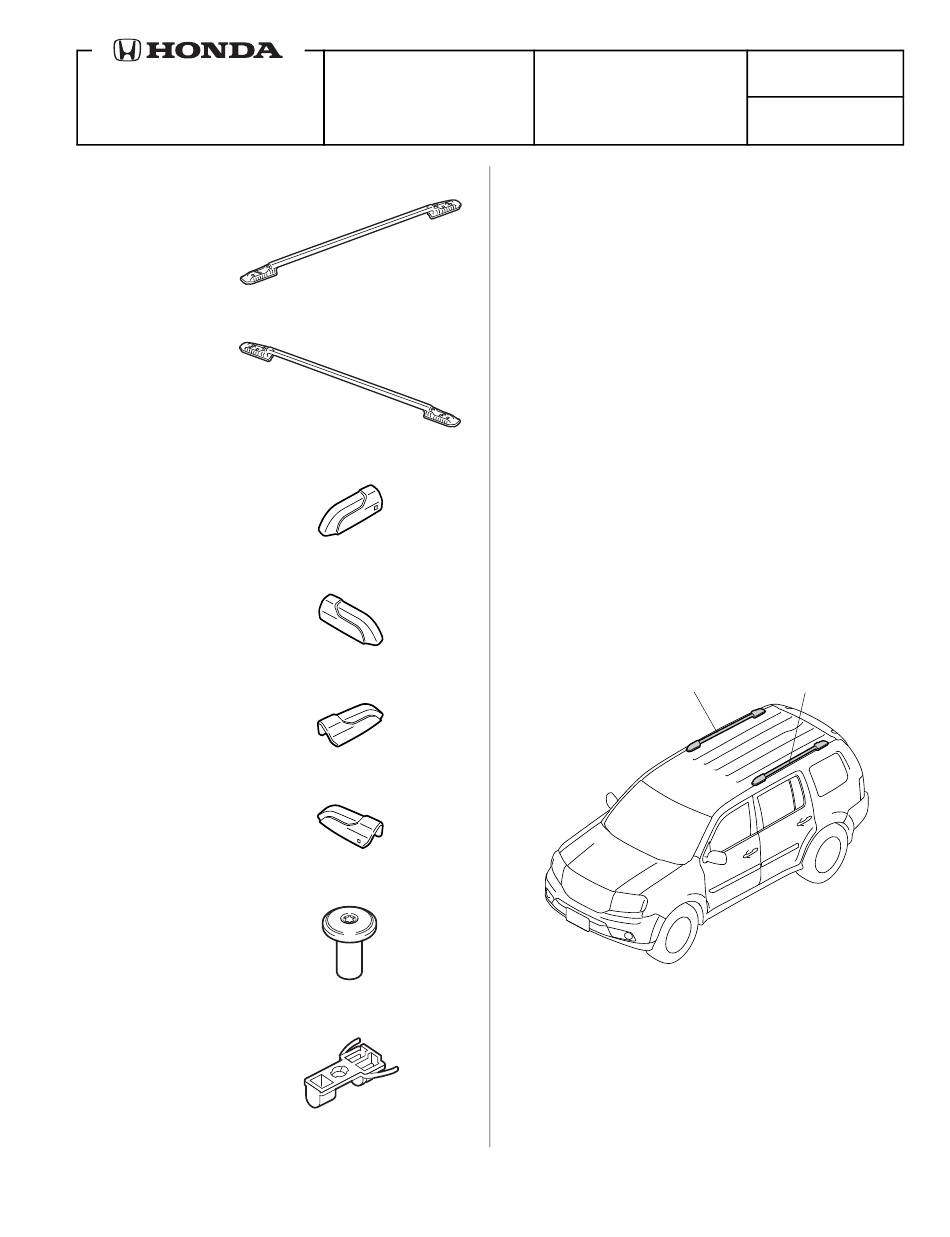

  • Page 1 LEFT RIGHT ROOF RAIL ROOF RAIL Left rear roof rail cover Right rear roof rail cover Torx nuts QA31001AE Roof molding clips 1 of 5 © 2014 American Honda Motor Co., Inc. – All Rights Reserved. AII 51578 (1405) 08L02-SZA-1A00-90...
  • Page 2 DRILL BITS 700201CX PIERCED MARK (Made in step 2.) 7D1322BB Enlarge the two holes with a 10 mm drill bit. Remove any burrs. 2 of 5 © 2014 American Honda Motor Co., Inc. – All Rights Reserved. AII 51578 (1405)
  • Page 3 Remove any excess sealant from the stud bolts. STUD BOLT STUD BOLT SEALANT SEALANT Remove the excess. 4 VEHICLE ROOF MOLDING CLIPS 700202AX 700204AX 3 of 5 © 2014 American Honda Motor Co., Inc. – All Rights Reserved. AII 51578 (1405)
  • Page 4 CLIP 130 mm (5.1 in.) ROOF MOLDING ROOF MOLDING ROOF MOLDING CLIP LEFT ROOF CHANNEL FRONT ROOF MOLDING ROOF MOLDING 700206AX CLIP 700207AX 4 of 5 © 2014 American Honda Motor Co., Inc. – All Rights Reserved. AII 51578 (1405)
  • Page 5 16. Install the right roof rail covers the same way. FRONT SIDE TOP VIEW REAR SIDE TOP VIEW 700208CX 14. Repeat steps 1 through 13 for the right side of the vehicle. 5 of 5 © 2014 American Honda Motor Co., Inc. – All Rights Reserved. AII 51578 (1405)
