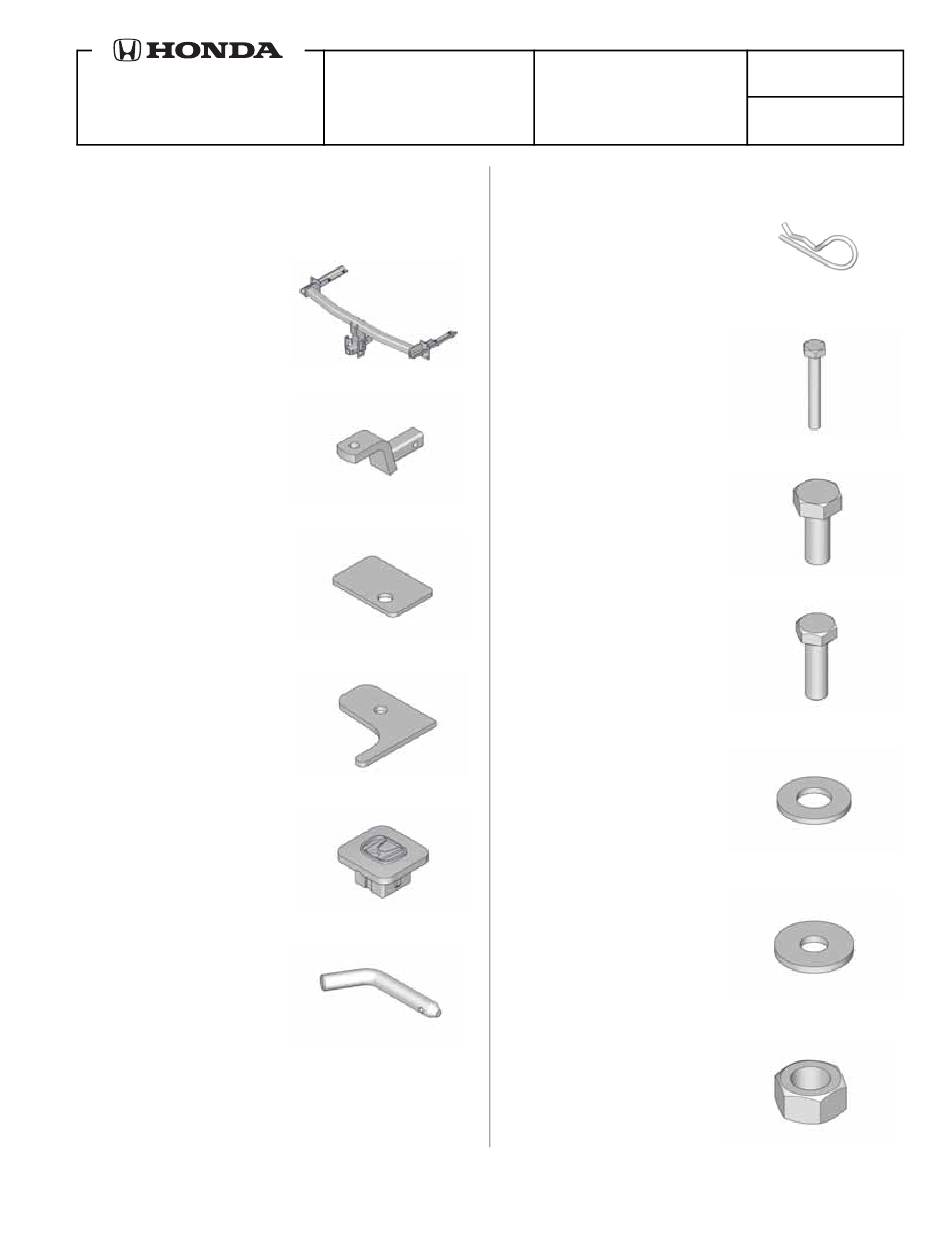

INSTRUCTIONS

PARTS LIST

Trailer Hitch Kit

P/N 08L92-TLA-100
Trailer hitch
Ball mount
4
Plates
Center plate
Receiver cover
Hitch pin
© 2017 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
TRAILER HITCH

Hitch pin clip

12 x 50 mm Hex bolt
4
Hex bolts, 10 x 35 mm
6
Hex bolts, 8 x 30 mm
2
Plain washers, 12 mm
6
Plain washers, 8 mm
12 mm Hex nut
AII07457-09 (1710)
Application
Publications No.
2018 CR-V
08L92-TLA-1002-90
VERSION 1
Issue Date
OCT 2017
1 of 40
