INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

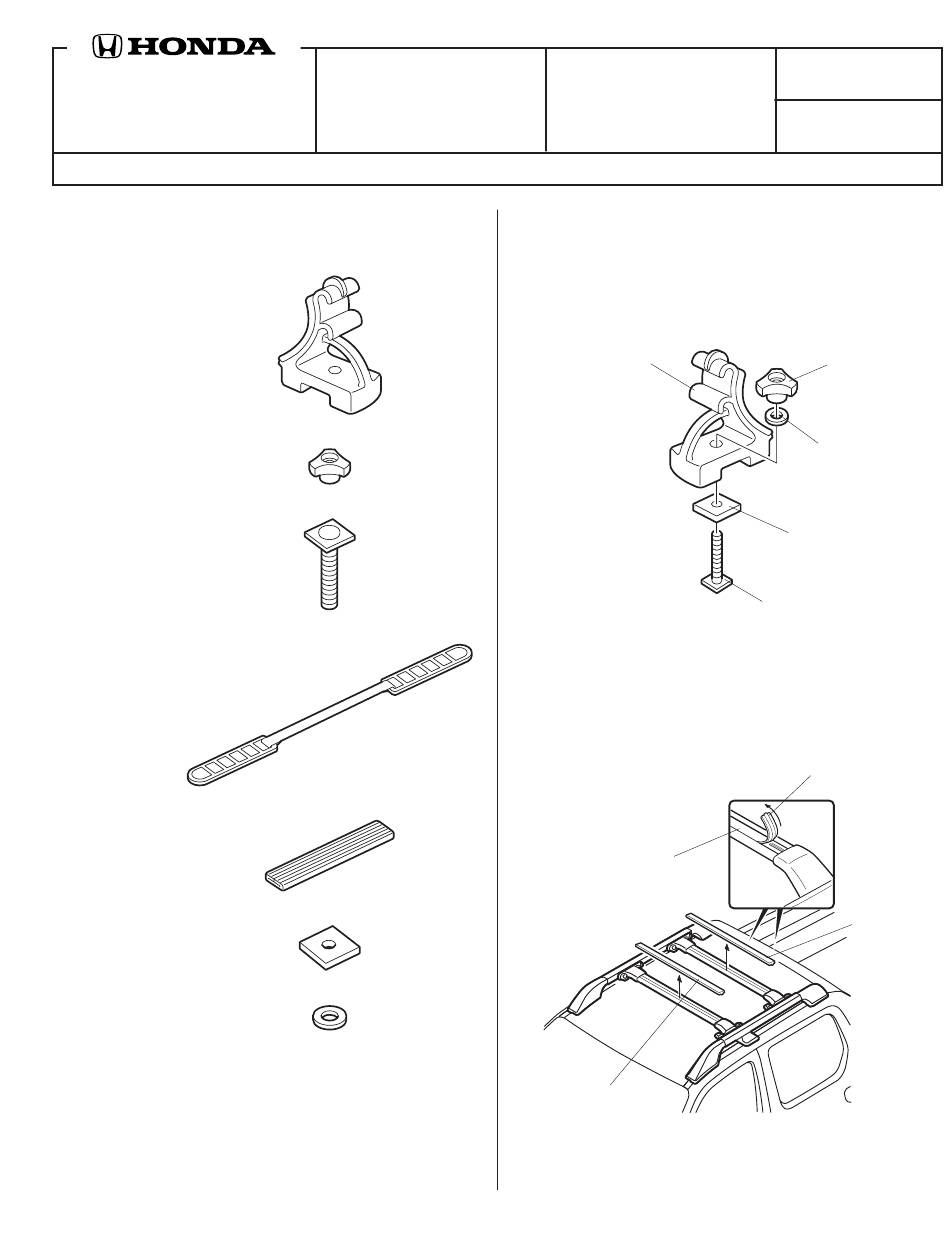

PARTS LIST
4 Bases
4 Knobs
4 Bolts
2 Straps
2 Strap protectors
4 Spacers
4 Washers
TOOLS REQUIRED
Phillips screwdriver
© 2005 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
SURFBOARD ATTACHMENT
P/N 08L05-SCV-100
AII 28629 (0502)
Application
2006 RIDGELINE
INSTALLATION
NOTE: Be careful not to damage the body paint finish.
1.
Loosely install the knobs, washers, spacers, and
bolts into the bases as shown.
BASE
2.
Remove the rubber moldings from the front and
rear roof rack crossbars.
CROSSBAR
FRONT
CROSSBAR
RUBBER
MOLDING
Publications No.
AII 28629
Issue Date
FEB 2005
KNOB
WASHER
SPACER
2315051K
BOLT
RUBBER
MOLDING
REAR
CROSSBAR
RUBBER
MOLDING
1 of 3
08L05-SCV-1000-91
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Honda 08L05-SCV-100
Summary of Contents for Honda 08L05-SCV-100
-
Page 1: Installation Instructions
RUBBER MOLDING 2 Strap protectors CROSSBAR REAR CROSSBAR RUBBER 4 Spacers MOLDING 4 Washers TOOLS REQUIRED FRONT CROSSBAR Phillips screwdriver RUBBER MOLDING 1 of 3 © 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 28629 (0502) 08L05-SCV-1000-91... - Page 2 FRONT BASE BOLT CROSSBAR SURFBOARD KNOB Tighten securely. Attach the strap protectors to the straps. 410 mm (16 in) STRAP PROTECTOR STRAP 2315070K 2 of 3 AII 28629 (0502) © 2005 American Honda Motor Co., Inc. - All Rights Reserved.
- Page 3 RUBBER ATTACHMENT MOLDINGS (6) Fasten the straps tightly across the surfboard using the lower hooks on each base. STRAP LOWER HOOK BASE STRAP 3 of 3 © 2005 American Honda Motor Co., Inc. - All Rights Reserved. AII 28629 (0502)
