Honda 08L04-S9V-100 Installation Instructions

INSTALLATION
INSTRUCTIONS
Put this information in the glove box with the vehicle owner's manual.

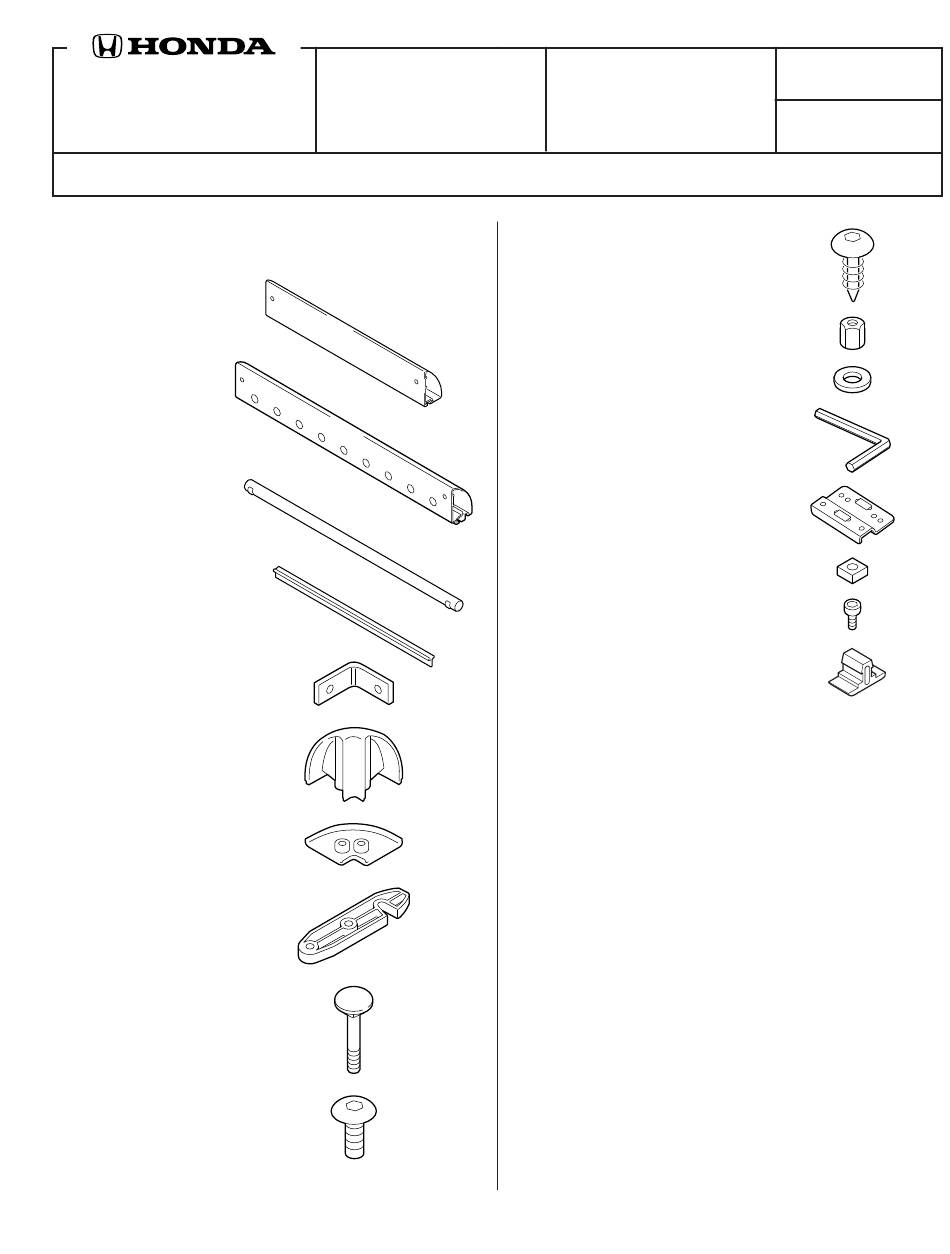

PARTS LIST
2 Frames A
2 Frames B
9 Pipes
Flap
4 L-brackets
4 Bracket covers A
4 Bracket covers B
4 Brackets A
8 Bolts
8 Screws
© 2008 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
LUGGAGE BASKET
P/N 08L04-S9V-100
8 Self-tapping screws
8 Nuts
8 Washers
Hex wrench
4 Brackets B
8 Square nuts
8 Socket bolts
8 Rubber pads
TOOLS REQUIRED
Phillips screwdriver
10 mm Combination wrench
INSTALLATION
NOTE:
•
•
•
•
•
AII 40273 (0808)
Application
2009 ODYSSEY
Be careful not to damage the roof and finished
surfaces of the body when installing the luggage
basket.
Be careful before entering automatic car washes.
Check the vehicle height limit of the automatic car
wash and the height of the vehicle.
The maximum load capacity for this product is
110 lb (50 kg); approximate product weight is
12 lb (5 kg).
Do not allow the combined weight of the accessory
and cargo to exceed the carrying capacity of the
roof rack.
A Honda roof rack or crossbars are required to
install the luggage basket.
Publications No.
AII 40273
Issue Date
AUG 2008
1 of 4
08L04-S9V-1000-91
