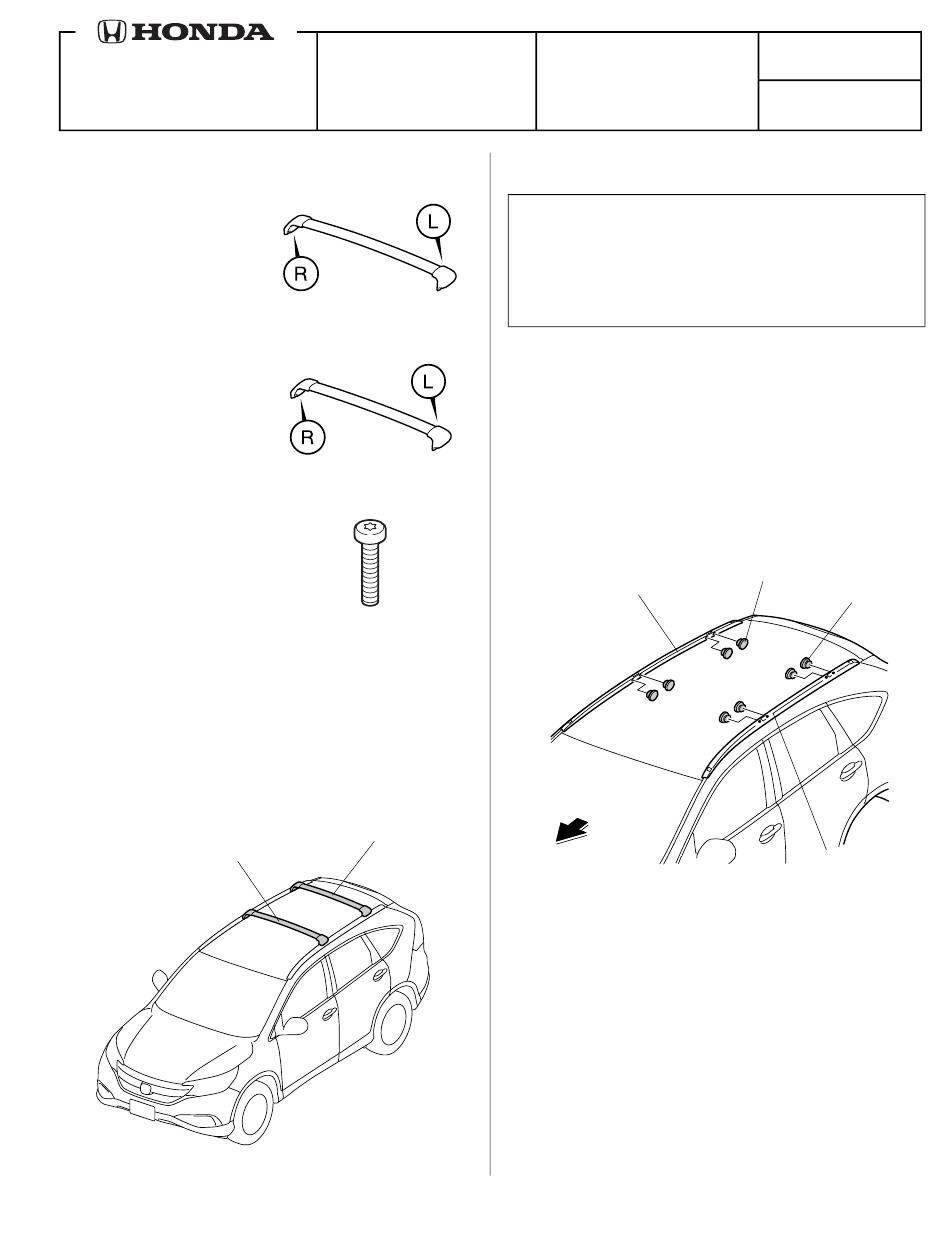

Honda 08L04-T0A-100 Installation Instructions

INSTALLATION
INSTRUCTIONS
PARTS LIST
Front crossbar (Long)
Rear crossbar (Short)
8 Bolts
TOOLS AND SUPPLIES REQUIRED
T-30 Torx bit
Torque wrench
Illustration of the Crossbars Installed on the Vehicle
FRONT CROSSBAR
© 2011 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
CROSSBARS
P/N 08L04-T0A-100
REAR CROSSBAR
AII 46215 (1112)
Application
CR-V
INSTALLATION
Customer Information: The information in this
installation instruction is intended for use only by skilled
technicians who have the proper tools, equipment, and
training to correctly and safely add equipment to your
vehicle. These procedures should not be attempted by
"do-it-yourselfers."
NOTE:
• The weight of the cargo must not exceed the maximum
weight capacity of 75 kg (165 lbs).
• Be careful not to damage the roof and other finished
surfaces of the body when installing the crossbars.
Installing the Crossbars
1. On each roof rack rail, remove the four covers.
RIGHT ROOF
RACK RAIL
FRONT
Important:
The small torx screws on the
underside of one end of each crossbar
will break if overtightened.
are designed to not hold the end
piece tightly in place to allow for
vehicle flex.
Publications No.
AII 12069
Issue Date
DEC 2011
4 COVERS
Remove.
4 COVERS
Remove.
LEFT ROOF
RACK RAIL
QA20801AD
They
1 of 3
08L04-T0A-1000-90
