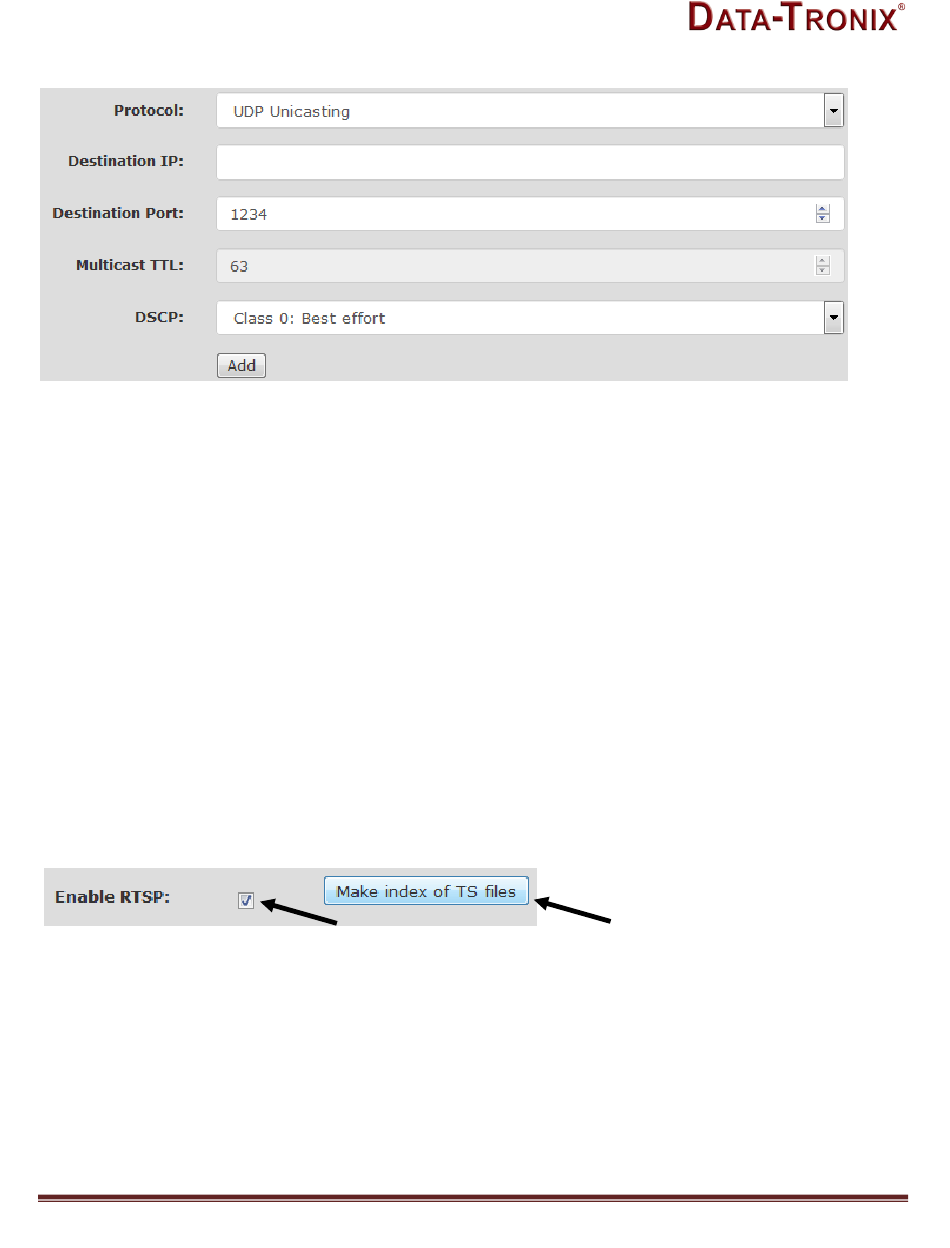

Unicasting Setup
Unicast via UDP/RTP/TCP by using the drop-down tool to select the desired method
Enter 'Destination IP' , 'Destination Port', and select the desired DSCP from the drop-down list. Default is
Class 0: Best effort.
Press Add after setting, the IP will be shown in the Streaming List.
To remove a Destination IP – simply select the IP address and Click 'Remove'.
Note: Add up to 16 Destinations to the Streaming List.
***SAVE AND CONFIRM all changes made on the Streaming Setup page

RTSP Streaming

Attach the USB disk with MPEG Transport Stream file(.ts) and index file to the device. Enable RTSP Streaming by
checking the checkbox and press the Make index of TS files to make the index.
Please refer the instruction on the Notes below the Streaming Setup Page.
