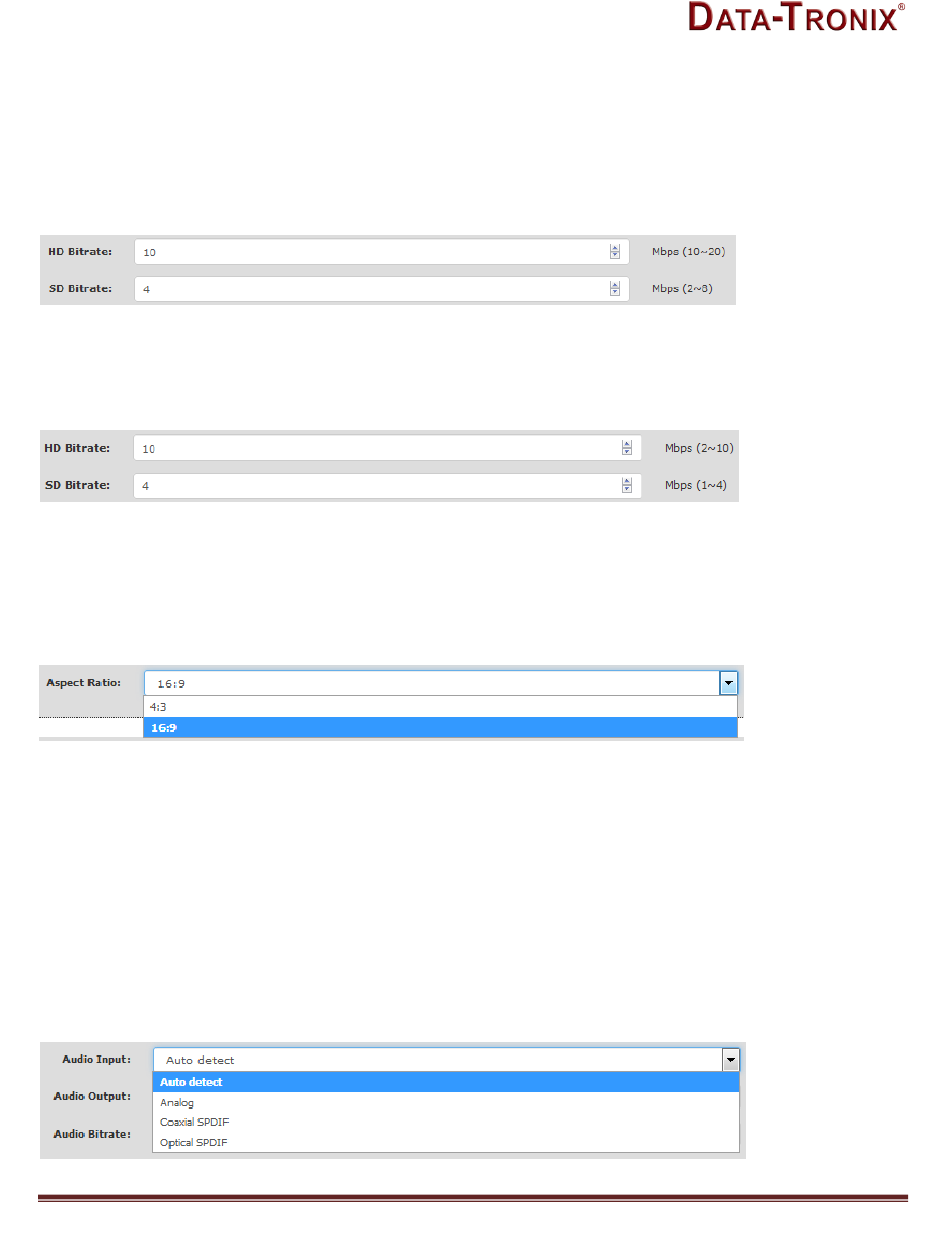

Setting the Video Bitrate: HD / SD
MPEG-2 Video Bitrates
HD: 10~20 Mbps (default- 10 Mbps)
SD: 2~8 Mbps (default- 4 Mbps)
H.264 Video Bitrates
HD: 2~10 Mbps (default- 10 Mbps)
SD: 1~4 Mbps (default- 4 Mbps)
The DT-HDIPSS allows the user to Set the Video Bitrate desired within the defined parameters offered.
Set or use the default settings as required.
Select Aspect ratio
Select :16:9 (default) or 4:3

Audio Control

Select Audio Input
Setting the device to Auto Detect allows the Encoder to automatically recognize which Audio Input source the user is
using.
Selecting Analog, Coaxial SPDIF (Digital Coax), or Optical SPDIF (Toslink) "locks" the encoder to detect only this type
of Audio Input.
