Note: We recommend using the Factory default 'Auto Detect'
Application Note:
If your Video Source is HDMI and you require an alternate Audio Source – Select Analog.
This will force the DT-HDIPSS to use the L/R RCA Audio Inputs as the Audio Source.

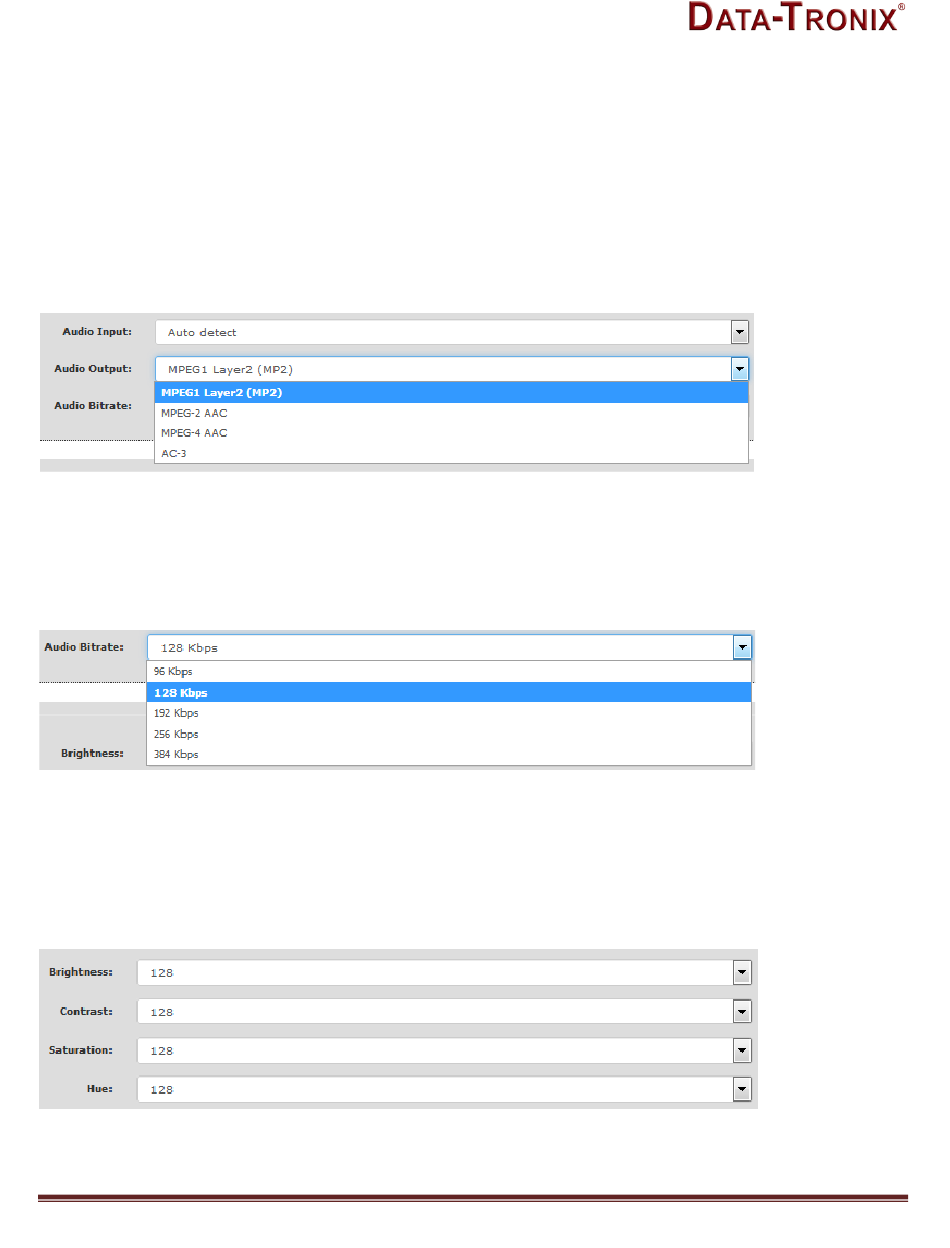

Select Audio Output Type
Use the drop-down tool to Select the Audio Format required.
Note: AC-3 Dolby Audio is not available on all HDIP Series Encoders
Select Audio Bitrate
Use the drop-down tool to Select the Audio Bitrate required
Color Control
Modify Brightness/Contrast/Saturation/Hue
Change the above settings as required on the Encoder.
Note: We recommend using the Factory default Factory Default: 128
NACE:
610-429-1511
| sales@datatronix.biz | www.datatronix.biz | | DT-HDIPSS Manual v1.0
Page 16
