Streaming Setup; Stream Server - Data-Tronix DT-HDIPSS Installation & Configuration Manual

Streaming Setup

The DT-HDIPSS can be setup to stream via HTTP (DLNA) directly from the network to the DLNA application on a DLNA
Compliant Smartv, directly to a PC using Multicast (UDP/RTP/RTSP) or to a HDTV by using a compatible set top box,
or by Unicasting (UDP/RTP/RTSP) to a PC. Other applications will also function with the RTSP formats provided. The
DT-HDIPSS can stream via HTTP and Multicast simultaneously.

Stream Server

HTTP (DLNA) Setup
Select 'Enable HTTP' for DLNA Streaming
The DT-HDIPSS is DLNA Compliant and can create a stream that will be detected and displayed to any Smartv that is
DLNA Compliant.

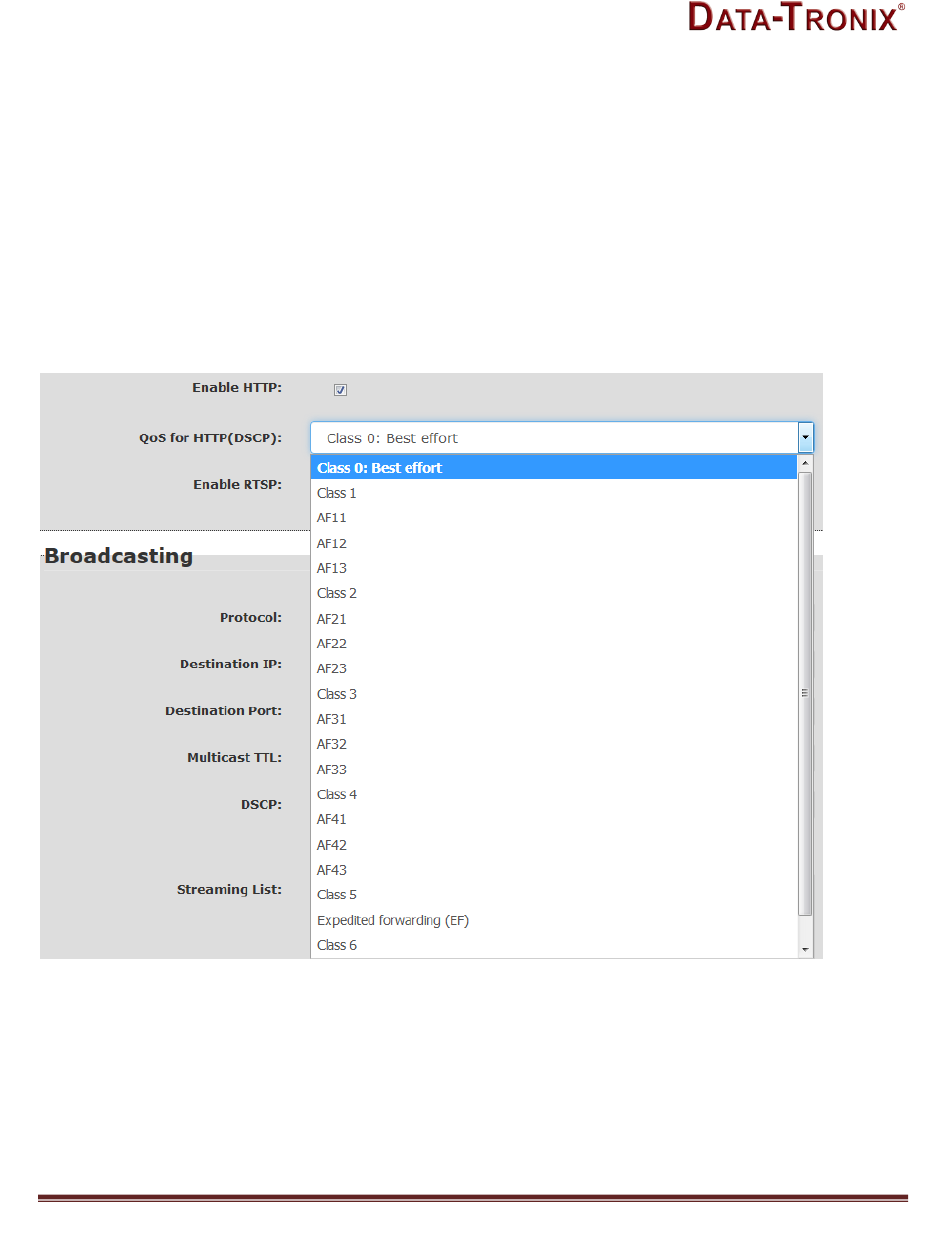

Enable HTTP as shown above and select the desired DSCP.
***SAVE AND CONFIRM all changes made on the Streaming Setup page
