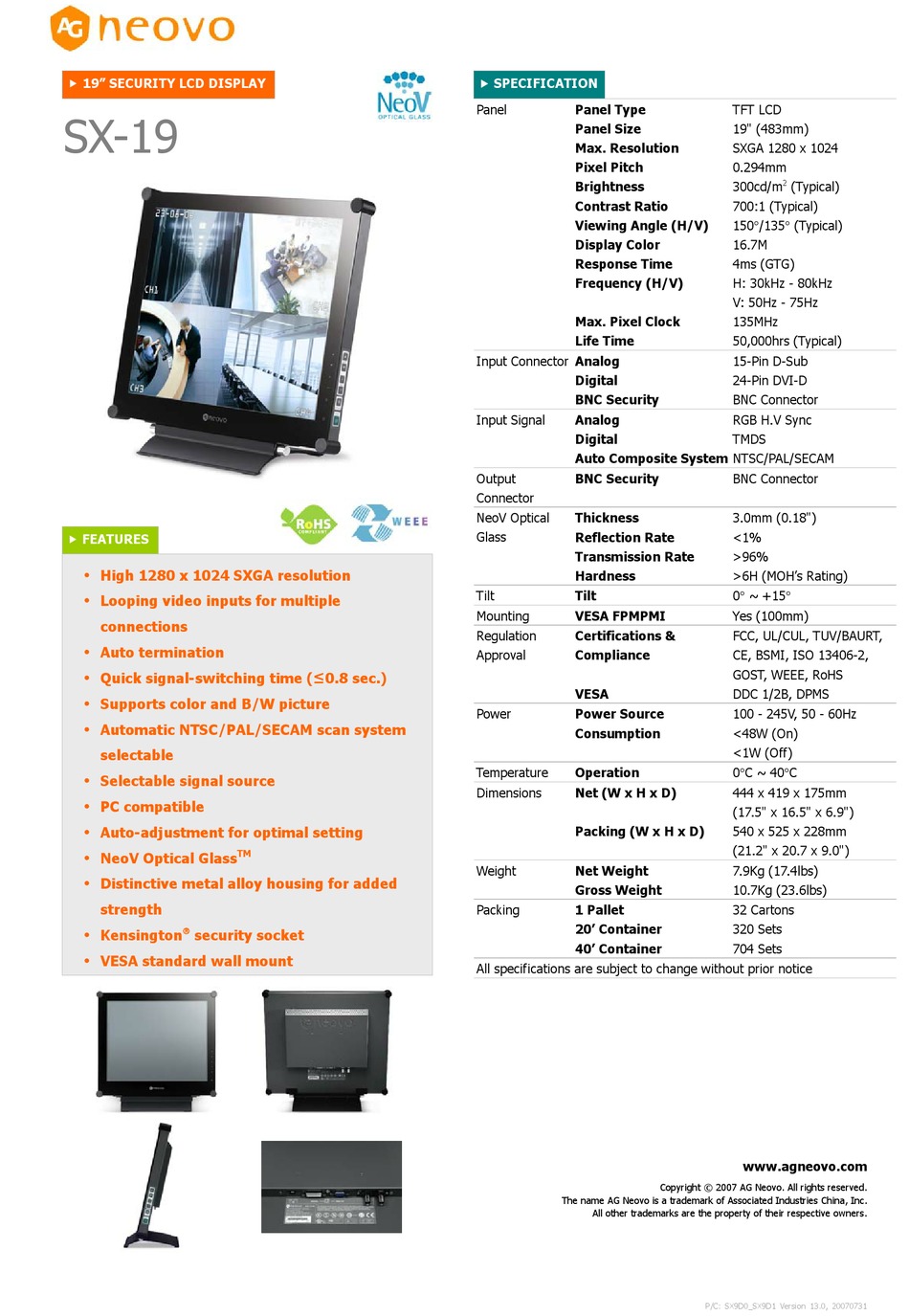

AG Neovo SX-19 Specifications

19" SECURITY LCD DISPLAY
SX-19
FEATURES
High 1280 x 1024 SXGA resolution
Looping video inputs for multiple
connections
Auto termination
Quick signal-switching time (≤0.8 sec.)
Supports color and B/W picture
Automatic NTSC/PAL/SECAM scan system
selectable
Selectable signal source
PC compatible
Auto-adjustment for optimal setting
NeoV Optical Glass
Distinctive metal alloy housing for added
strength

Kensington security socket
VESA standard wall mount
TM
SPECIFICATION
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Connector Analog
Digital
BNC Security
Input Signal Analog
Digital
Auto Composite System NTSC/PAL/SECAM
Output BNC Security
Connector
NeoV Optical Thickness
Glass Reflection Rate
Transmission Rate
Hardness
Tilt Tilt
Mounting VESA FPMPMI
Regulation Certifications &
Approval Compliance
VESA
Power Power Source
Consumption
Temperature Operation
Dimensions Net (W x H x D)
Packing (W x H x D)
Weight Net Weight
Gross Weight
Packing 1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
19" (483mm)
SXGA 1280 x 1024
0.294mm
300cd/m 2 (Typical)
700:1 (Typical)
150°/135° (Typical)
16.7M
4ms (GTG)
H: 30kHz - 80kHz
V: 50Hz - 75Hz
135MHz
50,000hrs (Typical)
15-Pin D-Sub
24-Pin DVI-D
BNC Connector
RGB H.V Sync
TMDS
BNC Connector
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +15°
Yes (100mm)
FCC, UL/CUL, TUV/BAURT,
CE, BSMI, ISO 13406-2,
GOST, WEEE, RoHS
DDC 1/2B, DPMS
100 - 245V, 50 - 60Hz
<48W (On)
<1W (Off)
0°C ~ 40°C
444 x 419 x 175mm
(17.5" x 16.5" x 6.9")
540 x 525 x 228mm
(21.2" x 20.7 x 9.0")
7.9Kg (17.4lbs)
10.7Kg (23.6lbs)
32 Cartons
320 Sets
704 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: SX9D0_SX9D1 Version 13.0, 20070731
