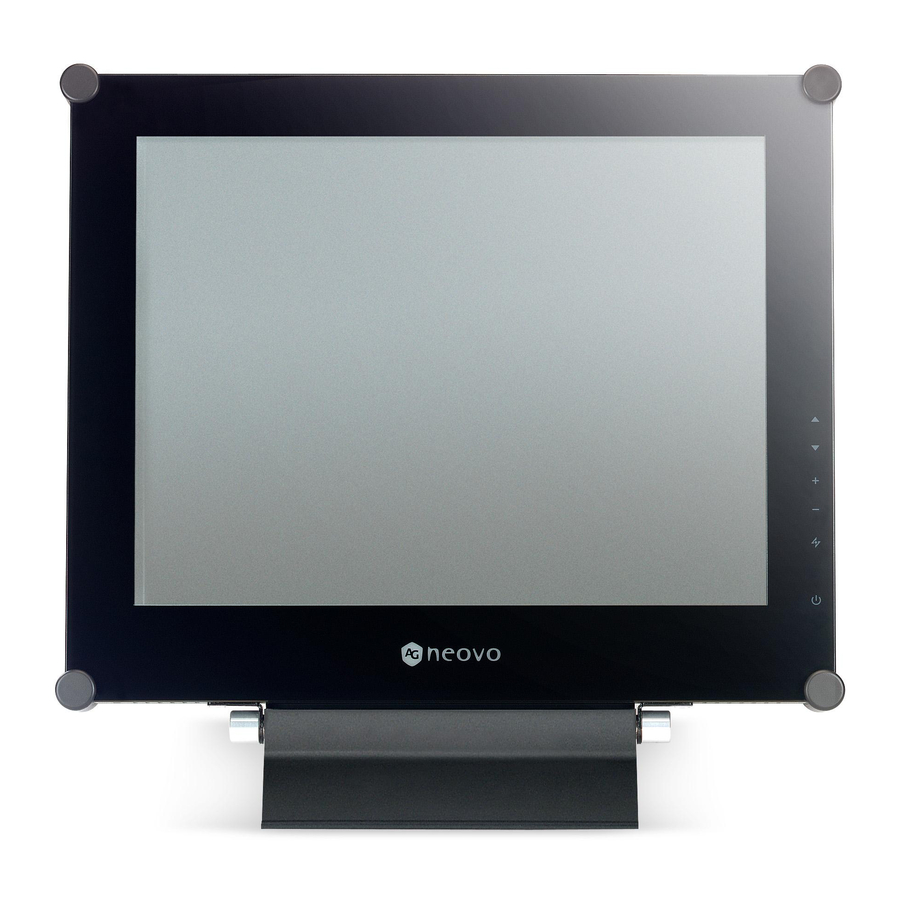

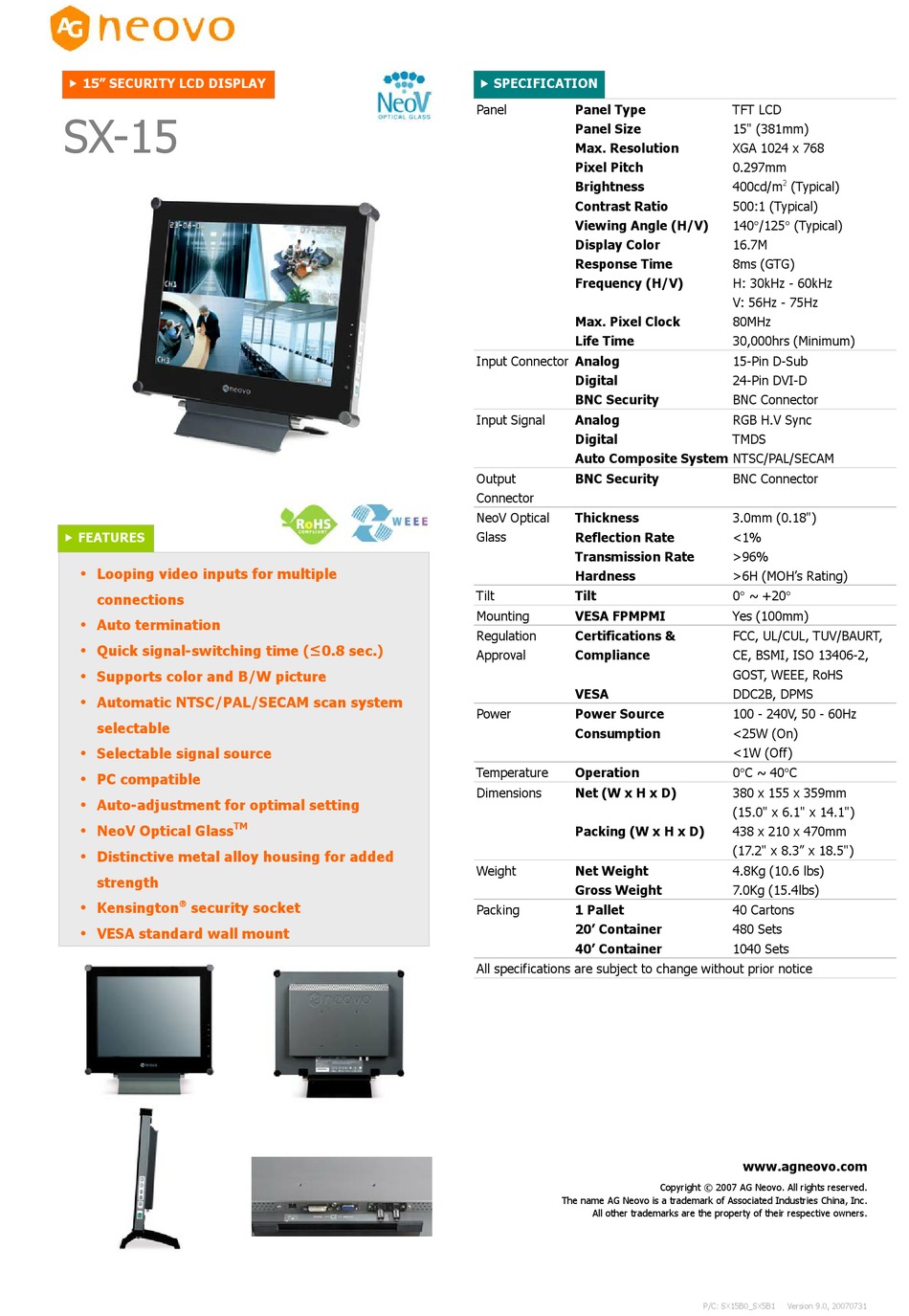

15" SECURITY LCD DISPLAY
SX-15
FEATURES
Looping video inputs for multiple
connections
Auto termination
Quick signal-switching time (≤0.8 sec.)
Supports color and B/W picture
Automatic NTSC/PAL/SECAM scan system
selectable
Selectable signal source
PC compatible
Auto-adjustment for optimal setting
TM
NeoV Optical Glass
Distinctive metal alloy housing for added
strength
Kensington
security socket
VESA standard wall mount
SPECIFICATION
Panel
Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Color
Response Time
Frequency (H/V)
Max. Pixel Clock
Life Time
Input Connector Analog
Digital
BNC Security
Input Signal
Analog
Digital
Auto Composite System NTSC/PAL/SECAM
Output
BNC Security
Connector
NeoV Optical
Thickness
Glass
Reflection Rate
Transmission Rate
Hardness
Tilt
Tilt
Mounting
VESA FPMPMI
Regulation
Certifications &
Approval
Compliance
VESA
Power
Power Source
Consumption
Temperature
Operation
Dimensions
Net (W x H x D)
Packing (W x H x D)
Weight
Net Weight
Gross Weight
Packing
1 Pallet
20' Container
40' Container
All specifications are subject to change without prior notice
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
TFT LCD
15" (381mm)
XGA 1024 x 768
0.297mm
400cd/m
2
(Typical)
500:1 (Typical)
140°/125° (Typical)
16.7M
8ms (GTG)
H: 30kHz - 60kHz
V: 56Hz - 75Hz
80MHz
30,000hrs (Minimum)
15-Pin D-Sub
24-Pin DVI-D
BNC Connector
RGB H.V Sync
TMDS
BNC Connector
3.0mm (0.18")
<1%
>96%
>6H (MOH's Rating)
0° ~ +20°
Yes (100mm)
FCC, UL/CUL, TUV/BAURT,
CE, BSMI, ISO 13406-2,
GOST, WEEE, RoHS
DDC2B, DPMS
100 - 240V, 50 - 60Hz
<25W (On)
<1W (Off)
0°C ~ 40°C
380 x 155 x 359mm
(15.0" x 6.1" x 14.1")
438 x 210 x 470mm
(17.2" x 8.3" x 18.5")
4.8Kg (10.6 lbs)
7.0Kg (15.4lbs)
40 Cartons
480 Sets
1040 Sets
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
P/C: SX15B0_SX5B1
Version 9.0, 20070731
