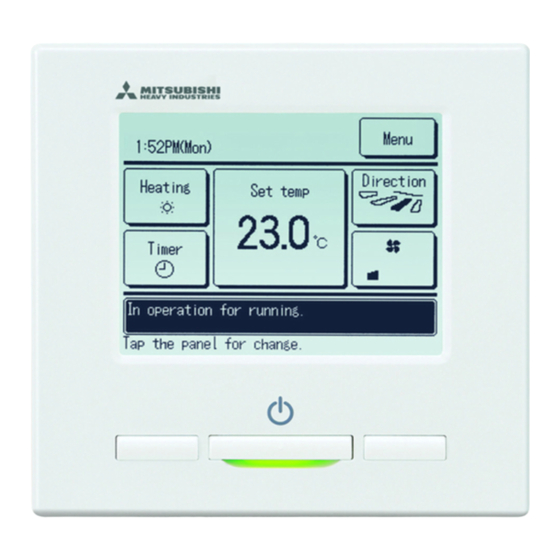

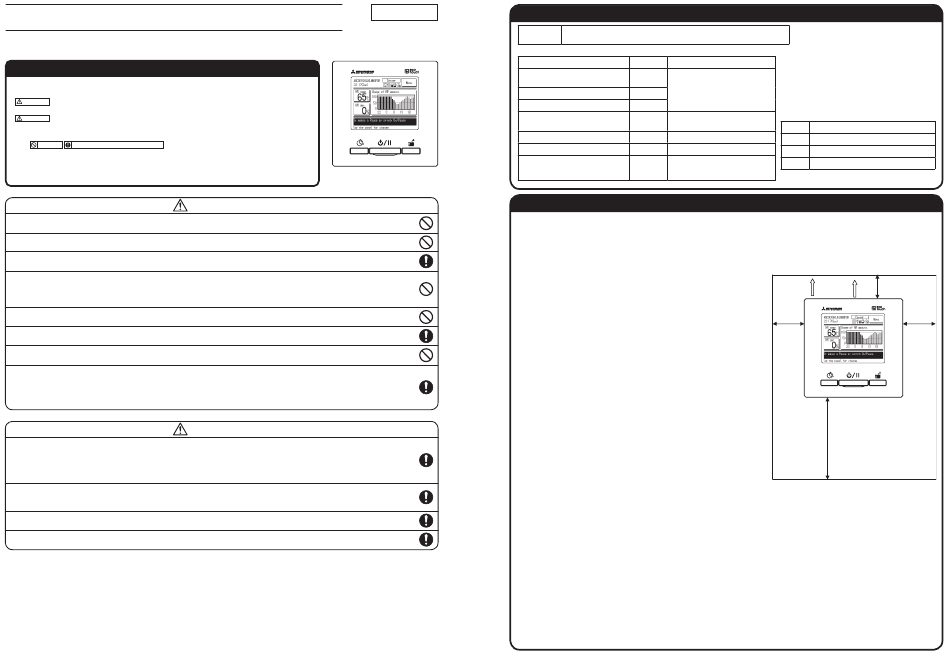

Installation manual of the remote control for heat pump water heater
Installation manual of the remote control for heat pump water heater
This installation manual describes the installation methods and precautions related to the remote control.
Use this manual together with the user's manuals for the heat pump unit and other optional equipment.
Please read this manual carefully before starting the installation work to install the unit properly.
1. Safety precautions
● l P a e e s read this manual carefully before the installation work to install the unit properly.
Every one of the following instructions is important to be observed strictly.
F i a u l e r to follow these instructions may result in serious consequences such as death,
WARNING
severe injury, etc.
a F u l i e r to follow these instructions may cause personal injury or property damage.
CAUTION
It could have serious consequences depending on the circumstances.
●The pictograms used in the text have following meanings.
Never do. Always follow the instructions given.
● K e p e this manual at a safe place where you can consult with whenever necessary.
Show this manual to a installer when moving or repairing the unit.
When the ownership of this unit is transferred, this "Installation Manual" should be given to a
new owner.
● T e h appliance shall be installed in accordance with national wiring regulations.
● A k s a professional contractor to carry out the installation work according to the installation manual.
Improper installation work may result in electric shocks, fire or break-down.
● S h t u off the main power before starting electrical work.
Otherwise, it could result in electric shocks, break-down or malfunction.
● D o not install the unit in inappropriate environment or where inflammable gas could generate, flow in, accumulate or leak
If the unit is used at places where air contains dense oil mist, steam, organic solvent vapor, corrosive gas
(ammonium, sulfuric compound, acid, etc) or where acidic or alkaline solution, special spray, etc are used,
It could cause electric shocks, break-down, smoke or fire as a result of significant deterioration of its performance or corrosion.
● D o not install the unit where water vapor is generated excessively or condensation occurs.
It could cause electric shocks, fire or break-down.
● U e s the specified cables for wiring, and connect them securely with care to protect electronic parts from external force
Improper connections or fixing could cause heat generation, fire, etc.
● e S l a the inlet hole for remote control cable with putty.
If moisture, water, insect, etc. enters through the hole, it could cause electric shocks, fire or break-down.
● W h n e installing the unit at a hospital, telecommunication facility, etc., take measures to suppress noises.
It could cause malfunction or break-down due to hazardous effects on the inverter, in-house power generator, high frequency
medical equipment, etc.
The influences transmitted from the remote control to medical or communication equipment could disrupt medical activities,
video broadcasting or cause noise interference.
● D o not install the remote control at following places
It could cause break-down or deformation of remote control.
(1) Where it is exposed to direct sunlight
(2) Near the equipment to generate heat
(3) Where the surface is not flat.
● D o not leave the remote control with its upper case removed.
When the upper case is removed, put it in a packing box or packing bag to protect PCBs or other parts inside of it from dust,
moisture, etc.
● T e h appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they have been given supervision or instruction.
● C l i h r d n e shall be supervised not to play with appliance.
WARNING
CAUTION
2. Accessories & parts prepared at site
PJZ012D103
Accessories Remote control main unit, wood screw (φ3.5 x 16) 2pcs, User's Manual,
Parts prepared on site
Switch box
For 1 piece or 2 pieces (JISC8340)
Thin steel conduit tube (JIS C8305) As required
Lock nut, bushing (JIS C8330)
Cable cover
Putty
Molly anchor
R/C cable (0.3mm
shielding wire (MVVS)
3. Installation place
Installing method [With using a switch box]
Wiring direction
Cautions for selecting installation place
(1) Installation surface must be flat and sufficiently strong.
R/C case must not be deformed.
Request
Do not install the R/C at a place where it is exposed to direct sunlight or surrounding air temp exceeds 40℃ or drop below 0℃.
It could cause discoloration, deformation, malfunction or break-down.
Installation Manual (in CD-R)
Item name Q'ty Remarks
1pc
There are not necessary when
installing R/C directly on a wall
As required
As required Necessary to run R/C cable on the
wall
Suitably For sealing gaps
As required
Be sure to ground both ends.
2
x 2-core)
As required See right table when longer than
100m
[Installed directly on a wall]
[Backward]
[Upper center] or [Upper left]
The max size for the wires used in the R/C case is
0.5mm 2 .
Therefore when the cable length is longer than
100m, connect the wires from R/C to larger size
ones near the outside of R/C.
When wires are connected, take measure to prevent
water, etc from entering inside of connected part.
＜200m 0.5mm 2 x 2-core shielding wire (MVVS)
＜300m 0.75mm 2 x 2-core shielding wire (MVVS)
＜400m 1.25mm 2 x 2-core shielding wire (MVVS)
＜600m 2.0mm 2 x 2-core shielding wire (MVVS)
30mm
Wiring
30mm 30mm
Secure minimum spaces for
disassembling the case.
120mm
Top face/R-L side face≧30mm
Bottom face≧120mm.
If using L-shaped screw-driver,
50mm or more is available.
