Technical Manual
PAR-21MAA
User Guide
18
19
3
2

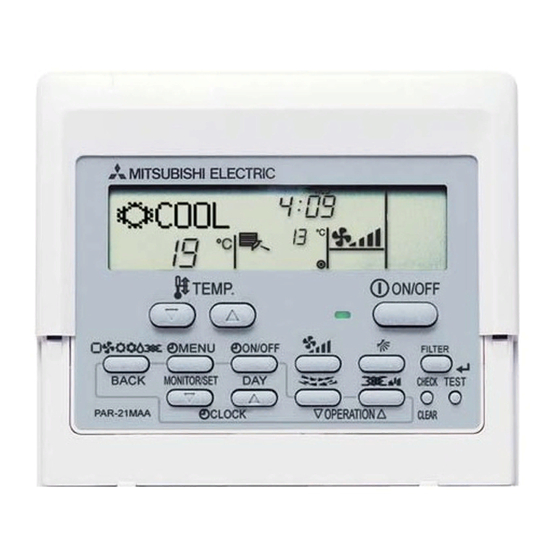

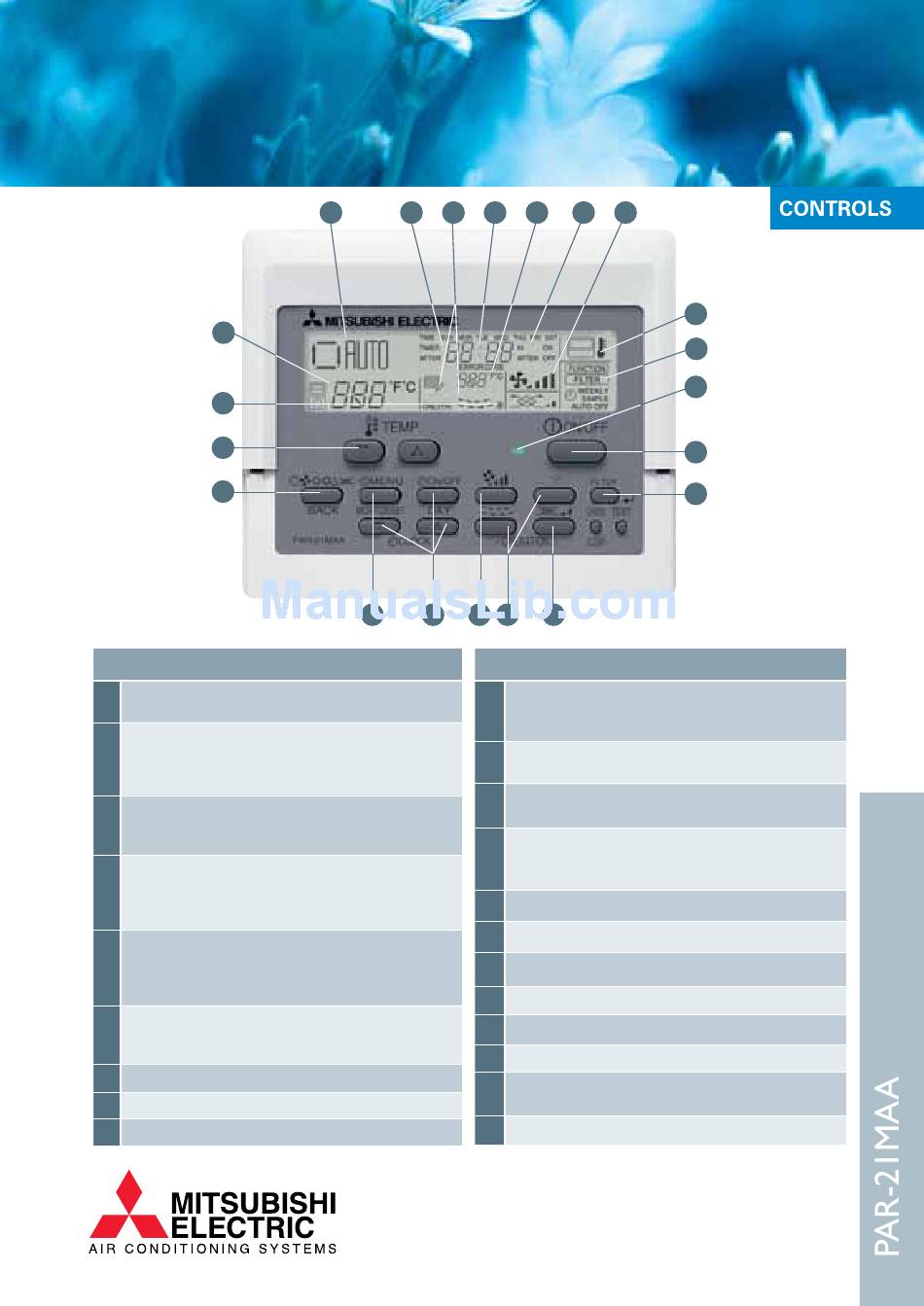

Operation Buttons
1
ON/OFF - Switches between run and stop.
The light flashes when a malfunction occurs.
OPERATION MODE SWITCHING -
2
Switches between Cool / Dry / Auto / Fan / Heat
Operation modes vary depending on the air conditioning system.
Auto mode is dependant on model.
TEMPERATURE SETTING -
3
Sets the room temperature: Range of temperature setting:
Cool / Dry: 19ºC-30ºC / Heat: 17ºC-28ºC / Auto: 19ºC-28ºC
4
FAN SPEED SETTING -
Models with 4 airflow speed settings: Hi / Mid-2 / Mid-1 / Low
Models with 3 airflow speed settings: Hi / Mid / Low
Models with 2 airflow speed settings: Hi / Low
5
AIR FLOW DIRECTION SETTING -
Air flow direction angles 100% - 80% - 60% - 40%, Swing,
Louver ON/OFF. Air flow direction setting buttons vary
depending on the model.
6
TIMER SELECTION BUTTON -
Switches between: Daily timer, weekly timer and auto off timer
(30 minutes to 4 hours).
This is the Lossnay interlock button.
7
This sets the current time, timer start and stop times.
8
This resets the Filter service indication display.
9
14
21
16
10
6
8
4
10
11
12
13
14
15
16
17
18
19
20
21
13
15
17
5
7
Display
ERROR - When an error is occurring on an air conditioner unit,
the affected unit and the error code are displayed. Phone number
may also be displayed for maintenance purposes.
This lamp lights during operation, goes off when the unit
stops and flashes when a malfunction occurs.
FILTER DISPLAY -
Indicates that it is time to clean the filter.
INDOOR UNIT INTAKE TEMPERATURE -
Measures the intake temperature of the indoor unit when
the indoor unit is operating.
OPERATION MODE - Displays the operation mode.
TIMERS - Displays the current time and timer set times.
This displays the air direction.
The selected fan speed is displayed.
This displays the selected temperature.
This lamp lights when electricity is supplied to the unit.
SENSOR DISPLAY -
Displayed when the remote controller sensor is used.
This displays the time and the day.
20
12
11
1
