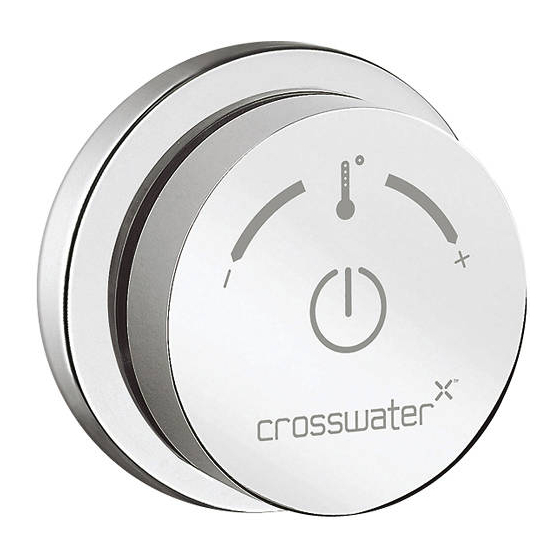

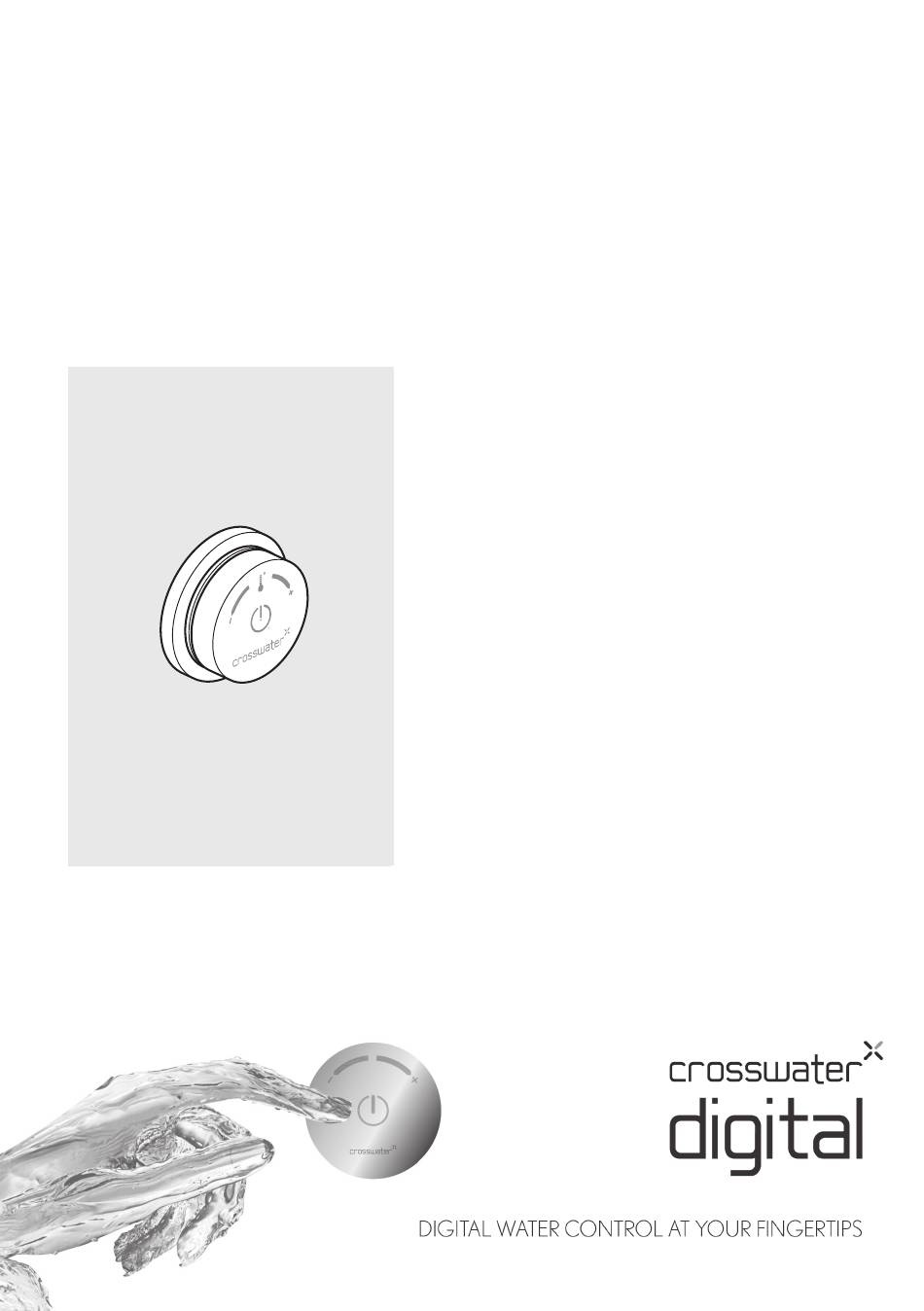

- Page 1 Solo water control system Installation and maintenance guide...
- Page 2 Flow performance is not installed according to these instructions. Important: The processor must be installed Crosswater accepts no liability for loss or in an accessible location for servicing damage resulting from installation or use of the Typical installation examples...
- Page 3 WHILST THE PRODUCT IS IN Please familiarise the end user with how the OPERATION. Crosswater Digital products work. Pipe sizing In the event of any warranty claims, all certificates of the registered electricians and plumbers must...
- Page 4 DIGITAL WATER CONTROL AT YOUR FINGERTIPS 40.0 35.0 Tools required Flow performance 30.0 25.0 Solo 20.0 35.0 Pencil Hacksaw 15.0 30.0 25.0 10.0 20.0 15.0 Suitable drill bit Crosshead screwdriver Adjustable spanner Drill 10.0 Dynamic pressure (bar) Dynamic pressure (bar) cold mixed cold...
- Page 5 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Typical mounted installation examples Important: The Processor must be accessible and should not be sealed in the wall. Solo Schematic loft mounted - Shower handset Solo Schematic wall mounted - Shower handset Processor (in loft) Control cable Pipework in Note: The processor...
- Page 6 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Installation instructions Step 1 - Cutting down the control fixing bracket Step 2 - Attaching the control fixing bracket Bracket attached from ‘behind’ To make the installation easier, we recommend that the control fixing bracket is cut down as shown using a hacksaw.
- Page 7 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Step 3 - Finish the wall Step 5 Conduit Back plate/ Adaptor ring - with foam gasket String or wire to fitted in the back help pull control cable through to the processor. 40mm Hole size in tile Finish the wall by tiling etc.
- Page 8 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Step 6 Step 8 - Connecting the processor Foam seal ‘Front’ control wheel Carefully pull the ‘front’ control wheel off the control. Feed the ‘foam seal’ onto the data cable and onto the control body. Remove the processor cover.
- Page 9 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Step 9 Step 10 Step 12 Inlet connector screw Cold Important: Flush through the pipework before connection. Inlets Fix the processor Attach the 15mm hot and cold water supply connections. Remove the inlet connector screw, insert in position using Note: Do not over-tighten the brass nuts to avoid cracks.
- Page 10 DIGITAL WATER CONTROL AT YOUR FINGERTIPS Step 14 Step 16 Connect the data cable from the ‘Transformer’ to the connector block in the processor. Ensure the cable locates as shown, see ‘Inside the Processor’ on page 14. Re-fit the processor cover. Plug the transformer into a power socket. Step 15 Step 17 - Control set-up Important: Once powered up, the control must be programmed within one hour following the...
- Page 11 Please do not open the processor unit as this will invalidate your warranty. Digital processor boxes must be fitted in accessible locations, and it is the responsibility of the installer to ensure that any processor is. Crosswater cannot accept liability if the processor has been fitted in an inaccessible location.
