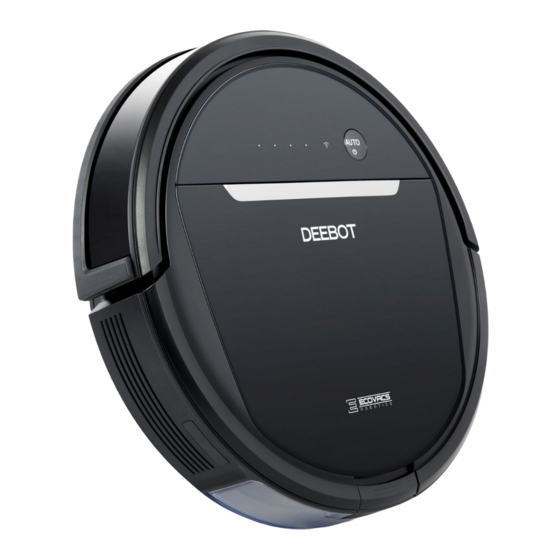

Page 1: Table Of Contents
Contents 1. Important Safety Instructions ..............2 2. Package Contents and Technical Specifications ........4 2.1 Package Contents ..................4 ................... 4 2.3 Product Diagram..................5 3. Operating and Programming ............... 7 3.1 Notes Before Cleaning ................7 3.2 Quick Start ....................8 3.3 Cleaning Mode Selection................ -
Page 2: Important Safety Instructions
1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 29. When not using the Charging Dock for a long period of time, please unplug it. 30. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
-
Page 4: Package Contents And Technical Specifications
(4) Side Brushes Main Brush Option Reservoir (2) Washable/ (Pre-installed) Cleaning Cloths Cleaning Cloth Plate Sponge Filter and 2.2 Specifications Model DD3G Working Voltage 12V DC Rated Power Charging Dock Model CH1465A Rated Input Voltage 100-240V AC Rated power Rated Output Current... -
Page 5: Product Diagram
2. Package Contents and Technical Specifications 2.3 Product Diagram Robot 1. Cover 7. Side Brushes 14. RESET Button 2. AUTO Mode Button 8. Main Brush Option 15. Power Switch 3. Bumper with Anti- 9. Driving Wheels 16. Dust Bin Collision Sensors 10. - Page 6 2. Package Contents and Technical Specifications Advanced Mopping System 1. Water Inlet 2. Reservoir 3. Cleaning Cloth Plate Cleaning Cloth 5. Magnet Charging Dock 1. Infrared Signal Generator 2. Charging Dock Pins Charging Dock 1. START/PAUSE Button 2. Direction Control Buttons 3.
-
Page 7: Operating And Programming
3. Operating and Programming 3.1 Notes Before Cleaning Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles. Please take care of DEEBOT and assist it at The product is not suitable for use on carpet. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves. -
Page 8: Quick Start
3. Operating and Programming Please be aware that the robot needs at Please do not stand in narrow spaces, such as least an 8 cm (3.1") clearance to clean under hallways, or DEEBOT may fail to identify the furniture without complications. area to be cleaned. - Page 9 3. Operating and Programming Charging Dock Placement Place the Charging Dock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 1.5m (5') in front of the charger and 0.5m (1.6') on both sides of the charger clear of objects and Plug the Charging Dock in.
- Page 10 3. Operating and Programming Charge DEEBOT Place DEEBOT on t he Charging Dock making sure the Charging Contacts on DEEBOT and the Charging Dock Pins make a connection. Charge DEEBOT for at least 4 hours before * Make sure to turn the robot’s Power Switch to the ON position before charging. * AUTO Mode Button blinks when DEEBOT is charging.
-
Page 11: Cleaning Mode Selection
3.3 Cleaning Mode Selection DEEBOT has several cleaning modes to choose from to effectively clean different floors. Cleaning modes are selected using the Remote Control or ECOVACS App. AUTO Cleaning Mode This is the most commonly used mode. In AUTO... -
Page 12: Programming The Robot
3. Operating and Programming Edge Cleaning Mode This mode is good for cleaning the edges and corners of a room. In Edge Cleaning Mode, DEEBOT cleans along a border (e.g. wall). 3.4 Programming the Robot DEEBOT has an Intelligent Scheduling and a Time Scheduling function to schedule cleaning times. -
Page 13: Optional Mopping System
3. Operating and Programming Cancel Intelligent Scheduling Double-Click the AUTO Mode Button on DEEBOT when DEEBOT is paused. Intelligent Scheduling is cancelled when the robot beeps. Intelligent Scheduling again at the desired time. * If DEEBOT is turned OFF, Intelligent Scheduling is cancelled. 3.5 Optional Mopping System DEEBOT has an optional Mopping System using a Washable/Reusable Microfiber Cleaning Cloth and Cleaning Cloth Plate attached to a proprietary Reservoir. - Page 14 3. Operating and Programming Attach Cleaning Cloth; Install the Cleaning Cloth Plate and the Reservoir. Start Select the desired Cleaning Mode. DEEBOT sweeps, lifts, vacuums and mops in the selected mode. FR-CA...
-
Page 15: Alarm Indicator Light And Sounds
3. Operating and Programming 3.6 Alarm Indicator and Sounds If DEEBOT detects a problem and needs your assistance, it emits alarm beeps or the Status Indicator Light illuminates. Alarm Sound Indicator Light Problems Solution Status Indicator Power ON the robot. Manually twice and DEEBOT has low place the robot on the Charging... -
Page 16: Maintenance
4. Maintenance Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Charging Dock. 4.1 Mopping System After DEEBOT finishes mopping, remove the Reservoir from DEEBOT, and maintain the Reservoir, the Cleaning Cloth and the Cleaning Cloth Plate immediately. Press the Release Button and pull to remove the Reservoir. -
Page 17: Dust Bin And Filters
4. Maintenance 4.2 Dust Bin and Filters Open the robot’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin. FR-CA... -
Page 18: Main Brush And Side Brushes
4. Maintenance Rinse the Sponge Filter, Dust Bin and Filter Net under running water. reinstalling. 4.3 Main Brush and Side Brushes * A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Main Brush Turn the robot over. -
Page 19: Other Components
4. Maintenance 4.4 Other Components Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Universal Wheel. Wipe the Anti-Drop Sensors with the brush of Wipe the Bumper with the brush of the Multi- the Multi-Function Cleaning Tool to maintain Function Cleaning Tool. -
Page 20: Regular Maintenance
Every 4-6 months week with pets in home) Universal Wheel Anti-Drop Sensors Bumper Once per week Charging Contacts Charging Dock Pins Note: ECOVACS manufactures various replacement parts and assemblies. Please contact Customer Service for more information on replacement parts. FR-CA... -
Page 21: Troubleshooting
5. Troubleshooting Please use this chart to troubleshoot common problems using DEEBOT. Malfunction Possible Causes Solutions DEEBOT is not powered Move the robot’s Power Switch to the ON position. Be sure that the robot’s Charging DEEBOT has not made a Contacts have made a connection connection with the Charging with the Charging Dock Pins. - Page 22 5. Troubleshooting Malfunction Possible Causes Solutions Intelligent Scheduling or Time Scheduling function is Please refer to section 3.4 for details. cancelled. DEEBOT is powered OFF. Power ON DEEBOT. DEEBOT will not clean automatically at Keep DEEBOT powered ON and on scheduled time.
