Blackbird™ 4K 4x2 HDMI® Matrix
P/N 39667
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird 39667 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice Blackbird 39667

Summary of Contents for Monoprice Blackbird 39667

  • Page 1 Blackbird™ 4K 4x2 HDMI® Matrix P/N 39667 User's Manual...

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •...
  • Page 3 Prior to operation, check the unit and power cord for • physical damage. Do not use if physical damage has occurred. Before plugging the unit into a power outlet, ensure that • the outlet provides the same type and level of power required by the device.

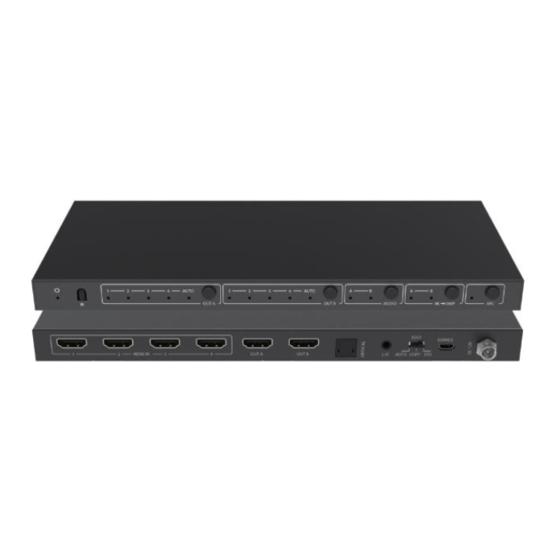

  • Page 4 INTRODUCTION This Blackbird™ 4K 4x2 HDMI® Matrix allows you to distribute any of four HDMI sources to either or both connected displays. It fully complies with the HDMI 2.0b and HDCP™ 2.2 and 1.4 specifications. It supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space.
  • Page 5 FEATURES Distribute any of four video inputs to either or both • connected displays Fully compliant with the HDMI® 2.0b and HDCP™ 2.2 and 1.4 • specifications Supports video resolutions up to 4K@60Hz with YCbCr • 4:4:4 color space Supports up to 18Gbps bandwidth •...

  • Page 6: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links.

  • Page 7: Product Overview

    PRODUCT OVERVIEW Front Panel POWER LED: The LED illuminates blue when power is applied. 2. IR: IR "eye" for receiving signals from the included IR remote control. OUT A: Momentarily press the button to cycle forward through the available inputs. One of the numbered LEDs illuminates to indicate which input is selected.
  • Page 8 5. AUDIO: When ARC is off, press the button to toggle between extracting the audio from the A or B outputs to both the digital optical S/PDIF and analog stereo audio outputs. When ARC is on, press the button to toggle between receiving ARC audio from the A or B outputs to the digital optical S/PDIF audio outputs only.
  • Page 9 2. OUT A and OUT B: Two HDMI outputs for connecting the video displays. OPTICAL and L/R: Digital optical S/PDIF and 3.5mm stereo analog audio outputs. 4. EDID: Three position slide switch to select which EDID® method to use. AUTO: When the switch is in the AUTO position, the •...
  • Page 10 Remote Control : Press the button to turn the unit on or put it into standby mode. 2. Output A: 1/2/3/4: Press one of the • numbered buttons to directly select the corresponding input for Output A. ◄ ►: Press the buttons to •...
  • Page 11 AUTO: Press the button to toggle automatic input • switching on or off. 4K/HD: Press the button to toggle output downscaling • on or off. 4. Audio: A: When ARC is off, press the A button to extract the • audio from OUT A to send to the digital optical S/PDIF and stereo analog audio outputs.

  • Page 12: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM...

  • Page 13: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 14 HDCP™ Version 2.2 and 1.4 RGB, YCbCr 4:4:4, YCbCr Supported Color Spaces 4:2:2, YCbCr 4:2:0 8-bit, 10-bit, and 12-bit (1080p, 4K@30Hz, 4K@60Hz Color Depth with YCbCr 4:2:0) 8-bit (4K@60Hz with YCbCr 4:4:4) PCM 2.0/5.1/7.1, Dolby Digital™, Dolby Digital Plus™, Dolby® Digital EX, Dolby Supported HDMI Audio TrueHD™, DTS®, DTS-ES®, DTS Formats...

  • Page 15: Regulatory Compliance

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC...
  • Page 16 requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 17 Consult the dealer or an experienced radio/TV technician • for help. Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
  • Page 18 Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDCP™ is a trademark of Digital Content Protection LLC.
