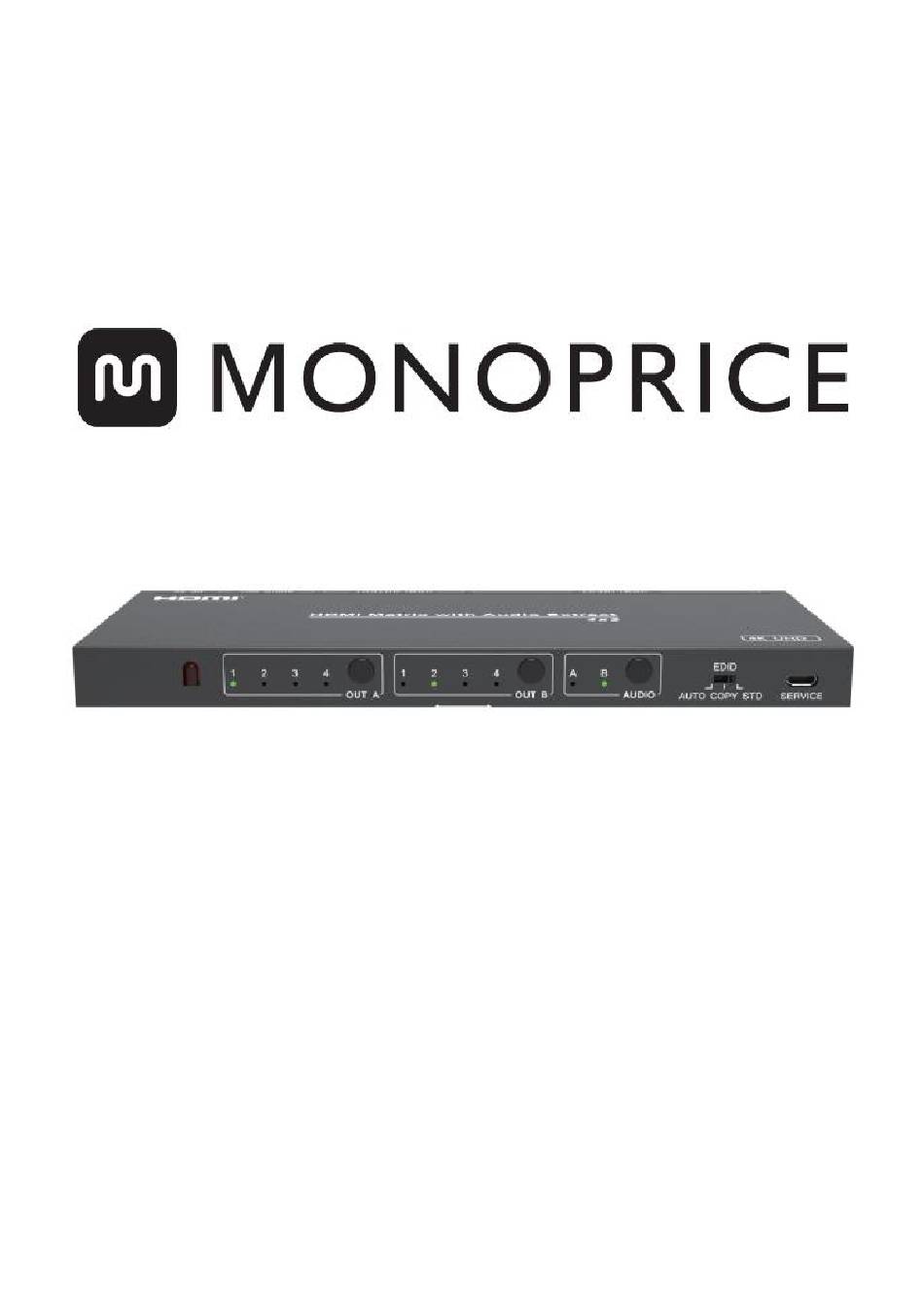

- Page 1 Blackbird™ 4K 4x2 HDMI® Matrix P/N 15376 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ..............3 INTRODUCTION ..........................5 FEATURES ............................5 CUSTOMER SERVICE ........................6 PACKAGE CONTENTS ....................... 6 PRODUCT OVERVIEW ........................ 7 Front Panel ..........................7 Rear Panel ..........................8 Remote Control ........................9 SAMPLE CONNECTION DIAGRAM ................10 TECHNICAL SUPPORT ...................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 4 Before plugging the unit into a power outlet, ensure that the outlet provides the same type and level of power required by the device. Unplug this device from the power source when not in use. Take care to prevent damage to the power cord. Do not ...
-
Page 5: Introduction
INTRODUCTION This Blackbird™ 4K 4x2 HDMI® Matrix allows you to select any of four HDMI video sources to either or both of two HDMI displays. It supports the HDMI 2.0a and HDCP™ 2.2 standards, as well as being DVI 1.0 compliant. It supports video resolutions up to 4K@60Hz 4:2:0, including 1080p@60Hz and 3D video. -
Page 6: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 7: Product Overview

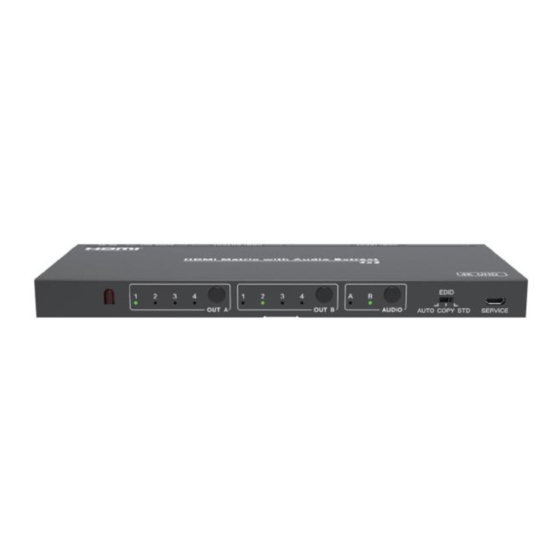

PRODUCT OVERVIEW Front Panel IR: Aim the remote control towards the IR receiver window. OUT A: Press the button to cycle forward through the available inputs for output A. The LEDs will indicate which of the four inputs is selected. OUT B: Press the button to cycle forward through the available inputs for output B. -
Page 8: Rear Panel
When set to AUTO, the matrix will poll both outputs and will transmit the lower of the two EDID® options to all four source devices. When set to COPY, the matrix will transmit the EDID information of the display connected to output A to all four source devices. -
Page 9: Remote Control
AUDIO OUT: S/PDIF digital optical and 3.5mm TRS analog audio outputs for connecting an external amplifier or powered speakers for playback of the extracted audio. DC 5V: DC barrel connector for connecting the included AC power adapter. Remote Control OUTPUT A: Press one of the IN# buttons to directly select the numbered input for OUT A. -
Page 10: Sample Connection Diagram
AUDIO: Press the A or B button to extract the audio from OUT A or OUT B. The corresponding LED in the AUDIO section on the front panel will illuminate to indicate the selected output. SAMPLE CONNECTION DIAGRAM... -
Page 11: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 12 297Mbps/channel Video Bandwidth 891Mbps total Maximum Video Resolution 4K@60Hz 4:2:0 RGB/YCbCr 4:2:0, YCbCr Supported Color Spaces 4:4:4, YCbCr 4:2:2 Supported Color Depths 8-bit, 10-bit, 12-bit Input Power 5 VDC, 1A AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz Maximum Power 2 watts Consumption...
-
Page 13: Regulatory Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right... -
Page 14: Notice For Industry Canada
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
