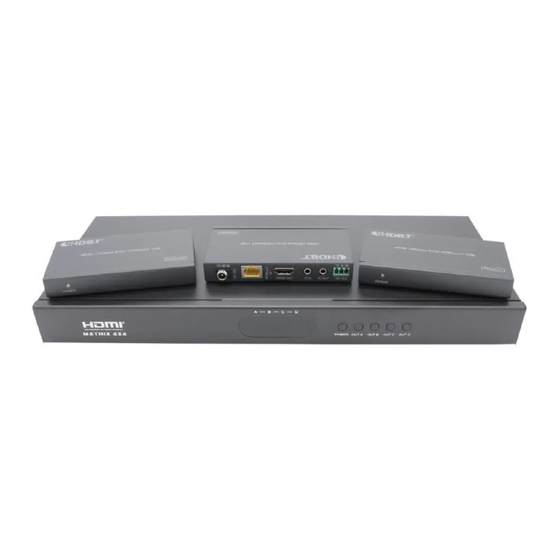

Monoprice Blackbird 39668 Manual

4k 4x4 hdmi matrix with hdbaset out rs-232
Hide thumbs Also See for Blackbird 39668:

Advertisement

Quick Links

Download this manual
®
4K 4x4 HDMI
Matrix with HDBaseT™ Out
RS-232 GUIDE
39668
PN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Blackbird 39668 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice Blackbird 39668

Summary of Contents for Monoprice Blackbird 39668

  • Page 1 ® 4K 4x4 HDMI Matrix with HDBaseT™ Out RS-232 GUIDE 39668...
  • Page 2 INTRODUCTION This Blackbird™ device can be controlled by a computer using an RS-232 serial connection and by issuing commands using RS-232 control software. CONNECTION This device includes four 3-pin Euroblock Terminal. Use one of these terminals to construct an RS-232 cable, which can be used to connect your PC to the matrix or HDBaseT™ receivers to allow for RS-232 control.
  • Page 3 SOFTWARE This device does not include either a built-in control system or custom RS-232 control software. If you wish to control this device from your PC using an RS-232 connection, you will need to use a third party RS-232 control software package, such as CommWatch.exe, whose interface is depicted below.
  • Page 4 RS-232 COMMANDS The following guidelines apply to the RS-232 control commands. 1. The brackets [ and ] in the commands are for clarity purposes to make the variable more obvious. Do not type these symbols when typing the commands. 2. Other than the brackets, type in all commands exactly as they appear, including any spaces.
  • Page 5 Command Function Feedback Example Restores all settings to their factory Restore factory s factory reset! default values. settings r version! Displays the software version. V1.33 power on V1.33 AV 1 -> 1 AV 2 -> 2 AV 3 -> 3 AV 4 ->...

  • Page 6: Edid Setting

    Command Function Feedback Example Displays the input connection for output r out [y]! AV 1 -> 2 [y]. (y=1~4) Displays which output audio is sent to r a out [y]! Audio Select 1 the S/PDIF output. (y=1) AV x -> 1 Displays the input connections for all AV x ->...
  • Page 7 Command Function Feedback Example Copy the EDID® of output [y] to all inputs. copy edid from output1 s edid all c [y]! (y=1~4) to all inputs Sets the EDID for all inputs to the internal ALL IN: 4K2K60,HD EDID SETTING s edid all d [y]! EDID [y].
  • Page 8 Command Function Feedback Example Enables HDCP™ for all outputs. s all hdcp on! all out hdcp on s all hdcp off! Disables HDCP for all outputs. all out hdcp off Sets the HDCP status for all outputs to s all hdcp auto! all out hdcp auto match the HDCP status of the input.

  • Page 9: Edid Settings

    Command Function Feedback Example s subnet Sets the subnet mask to 255.255.255.0 XXX.XXX.XXX.XXX! XXX.XXX.XXX.XXX. r subnet! Displays the subnet mask. 255.255.255.0 s gateway Sets the gateway address to 192.168.1.1 XXX.XXX.XXX.XXX! XXX.XXX.XXX.XXX. r gateway! Displays the gateway address. 192.168.1.1 s port x! Sets the network port number.
  • Page 10 Dolby/DTS 5.1 4K@60Hz YCbCr 4:4:4 HD 7.1 Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. EDID® is a registered trademark of the Video Electronics Standards Association.
  • Page 11 Product pictures are for reference only. Specifications described herein are subject to change without prior notification. All trademarks are the sole property of their respective companies. Blackbird™ is a Sub-brand of Monoprice Inc. Copyright © 2021 Monoprice, Inc. All rights reserved. www.monoprice.com...
