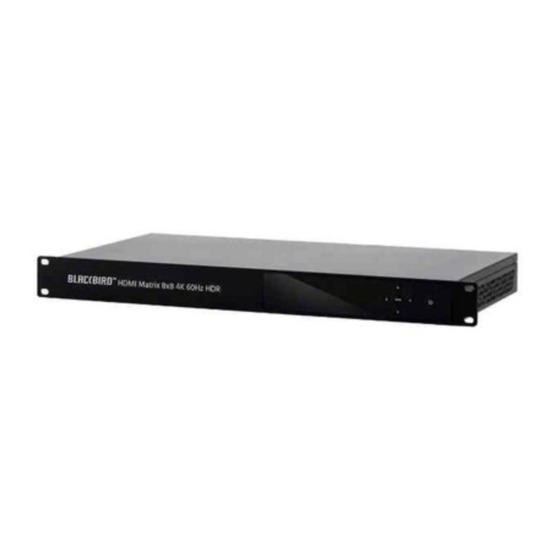

Monoprice BLACKBIRD 39665 Manual

4k 8x8 hdmi matrix rs-232
Hide thumbs Also See for BLACKBIRD 39665:

Advertisement

Quick Links

Download this manual
4K 8x8 HDMI
Matrix
®
RS-232 GUIDE
39665
PN

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLACKBIRD 39665 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice BLACKBIRD 39665

Summary of Contents for Monoprice BLACKBIRD 39665

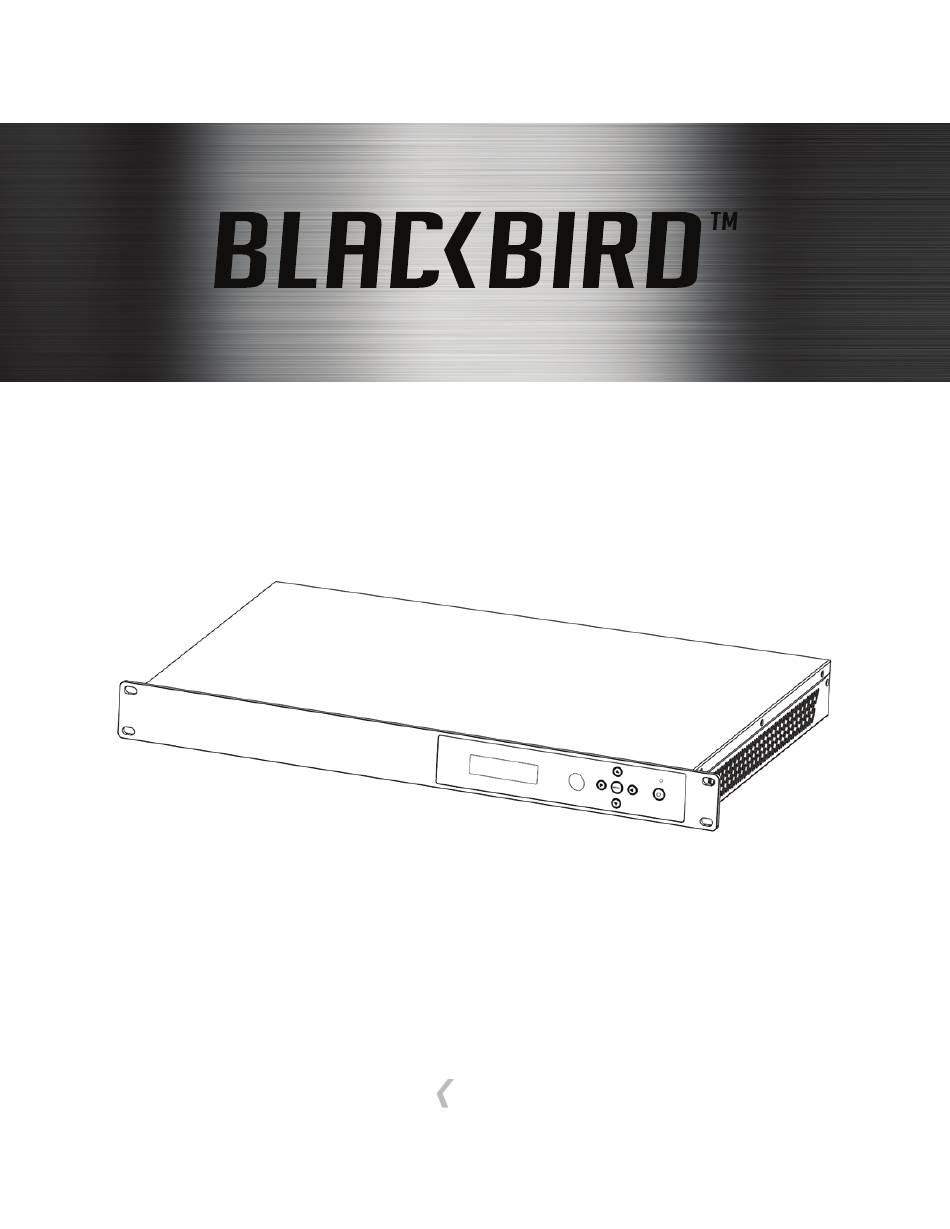

  • Page 1 4K 8x8 HDMI Matrix ® RS-232 GUIDE 39665...
  • Page 2 INTRODUCTION This Blackbird™ device can be controlled by a computer using an RS-232 serial connection and by issuing commands using RS-232 control software. CONNECTION This device includes a DB-9 male to female RS-232 serial cable, which is used to connect your PC to the matrix.
  • Page 3 Baud Rate: 19200 Data Bits: Stop Bits: Parity Bits: None TCP/IP Port: 8000 Telnet Port: 23 RS-232 COMMANDS The following guidelines apply to the RS-232 control commands. 1. The brackets [ and ] in the commands are for clarity purposes to make the variable more obvious.
  • Page 4 Command Function Feedback Example Displays the connection status of output r out [y]! AV 6 -> 1 [y]. (y=1~8) Connects each output to its s ptp! corresponding input. Displays the connection status of input r link in [x]! HDMI IN5: connect [x].
  • Page 5 Command Function Feedback Example Copies the EDID from output [y] to all copy edid from output s edid all c [y]! inputs. (y=1~8) 2 to all inputs Sets all inputs to use the internal EDID [y]. use default edid y to all EDID SETTINGS s edid all d [y]! Refer to the...
  • Page 6 Command Function Feedback Example Displays the HDCP™ status of output [y]. r hdcp out [y]! a hdcp out (y=1~8) r hdcp all in! Displays the HDCP status of all inputs. a hdcp in all r hdcp all out! Displays the HDCP status of all outputs. a hdcp out all Enables the beep that sounds each time a s beep on!
  • Page 7 Command Function Feedback Example Sets the network module to use a static s dhcp off! ip mode static IP address. Sets the network module to use DHCP to s dhcp on! ip mode DHCP assign an IP address. Displays the DHCP status of the network r dhcp! a ip mode DHCP module.

  • Page 8: Edid Settings

    EDID SETTINGS The following table lists the 27 different EDID® settings. Video Audio 720p 2.0 CH 1080p 2.0 CH 1080p 5.1 CH 1080p 7.1 CH 1080i 2.0 CH 1080i 5.1 CH 1080i 7.1 CH 2.0 CH 5.1 CH 7.1 CH 4K@30Hz 2.0 CH 4K@30Hz...
  • Page 9 Copy Output Copy HDMI Out A Copy HDMI Out B Copy HDMI Out C Copy HDMI Out D Copy HDMI Out E Copy HDMI Out F Copy HDMI Out G Copy HDMI Out H IR CODES The following codes conform to NEC® System Code 0x00FF. Function IR Code Power ON/OFF...
  • Page 10 0x48 KEY_INPUT_PRE 0x55 Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 11 Product pictures are for reference only. Specifications described herein are subject to change without prior notification. All trademarks are the sole property of their respective companies. Blackbird™ is a Sub-brand of Monoprice Inc. Copyright © 2021 Monoprice, Inc. All rights reserved. www.monoprice.com...
