Summary of Contents for Monoprice BLACKBIRD 15750

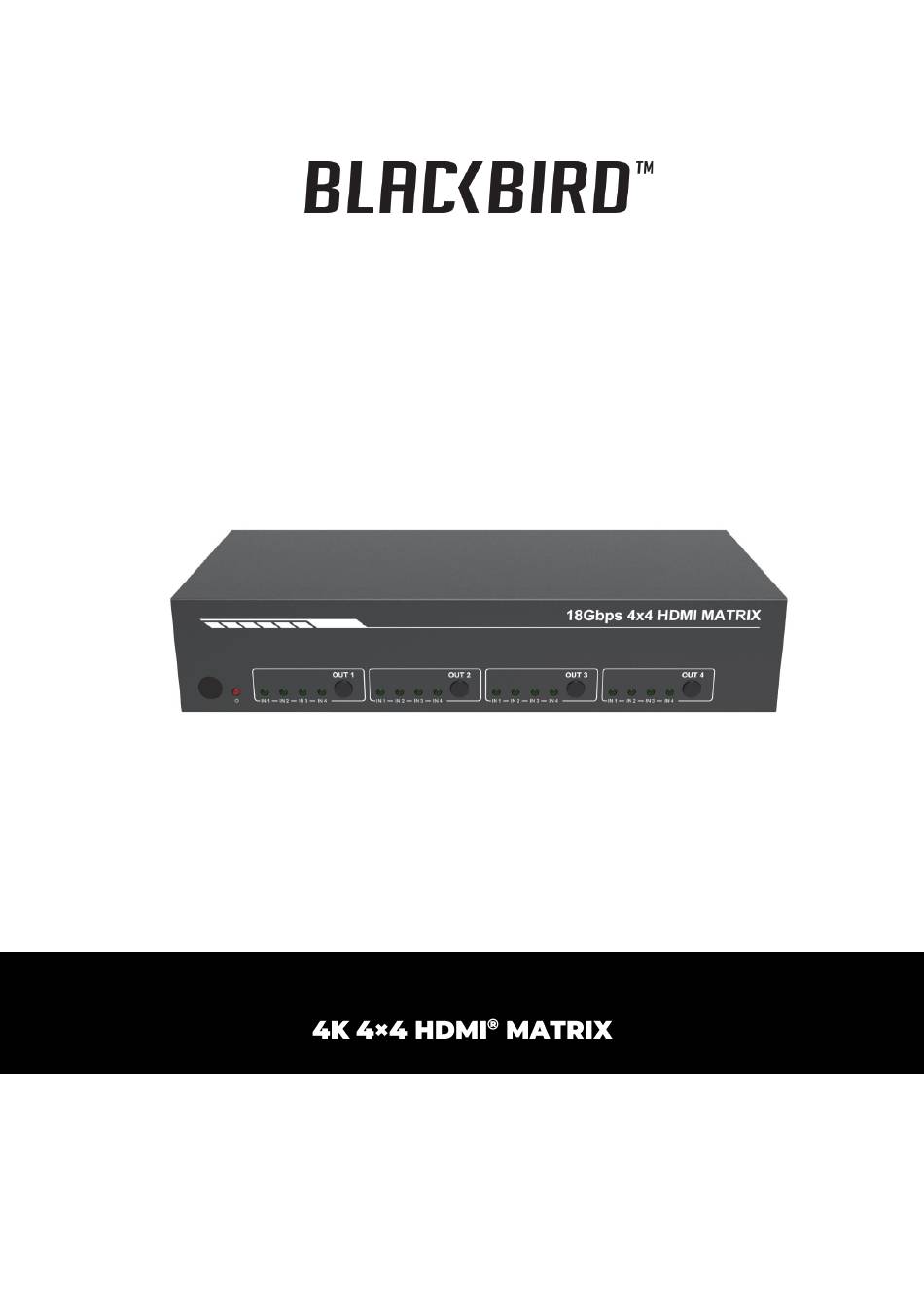

- Page 1 ™ ™ Blackbird by Monoprice 15750 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird 4K 4×4 HDMI® Matrix, paying extra attention to ™ these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Remote Control (Model): YKQ-111 Remove and immediately recycle or dispose of used batteries according to local regulations and keep • them away from children. Do NOT dispose of batteries in household trash or incinerate them. Even used batteries may cause severe injury or death. •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS AND GUIDELINES ......................................2 INTRODUCTION .................................................. 4 FEATURES ....................................................4 PACKAGE CONTENTS ..............................................5 PRODUCT OVERVIEW ..............................................5 CONNECTION DIAGRAM ............................................7 WEB GUI ....................................................7 RS-232 CONTROL ................................................13 CUSTOMER SERVICE ..............................................18 TECHNICAL SUPPORT ..............................................18 REGULATORY COMPLIANCE .......................................... -
Page 5: Package Contents
• PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x 4K 4x4 HDMI® Matrix •... - Page 6 B. REAR PANEL TCP/IP RJ45 jack for connecting a computer for web control using the built-in Web GUI. RS-232 3-pin Euroblock connector for connecting a computer for RS-232 command control. IR EXT 3.5mm jack for connecting the included IR receiver. Digital coaxial output for connecting an external amplifier to play audio de- COAX embedded from the HDMI®...
-
Page 7: Connection Diagram
CONNECTION DIAGRAM WEB GUI This matrix features a built-in Web GUI, which allows it to be controlled by a computer using a network connection. You can connect it directly to your existing Ethernet network or directly to your computer, which requires reconfiguring your network settings. - Page 8 Login Refer to the section below for login information. NOTE: If the IP address has been changed and you do not know what it is, r ip addr! use the RS-232 command to display the current IP address. B. DIRECT CONNECTION Perform the following steps to connect the matrix directly to your computer.
- Page 9 After typing in the User Name and Password, click the LOGIN button to continue. D. STATUS PAGE The Status Page shows basic information about the model name, firmware version, and network settings. This screen can be seen by both the Admin and User accounts. The two buttons in the upper right corner of the screen are available on all pages and perform the following functions.
- Page 10 • Delete a preset – click the Clear button in the Presets Clear column for the desired preset in the Presets section. F. INPUT PAGE The Input Page displays information about which inputs are connected and have an active signal. It also allows you to give more meaningful names to the inputs, as well as manage the EDID®...
- Page 11 4K2K60Hz_444 HD Audio 7.1 HDR USER_1 USER_2 COPY_FROM_TX_1 COPY_FROM_TX_2 COPY_FROM_TX_3 COPY_FROM_TX_4 Perform the following steps to load a binary file with EDID® settings to the User 1 or User 2 memories. 1. Click Browse in the Load EDID to User Memory section, then locate and select your EDID file. 2.
- Page 12 H. NETWORK PAGE The Network Page allows you to configure the network settings for the matrix. Note that the IP address fields are only available when the Mode is set to Static. You can also change the passwords for the User and Admin accounts, as well as the Product Model name. I.
-
Page 13: Rs-232 Control
RS-232 CONTROL The matrix can also be controlled by a computer using RS-232 commands input into an RS-232 command application. To connect your computer to the matrix, use the included 3-pin Euroblock connector to build a USB to RS-232 cable, as shown in the following diagram. The following are the default communications parameters: Baud Rate: 115200... - Page 14 System Commands help! Lists all commands. r type! Display the model name. HDP-MXB44P Get the unit all status: power, beep, lock, in/out r status! Displays the current matrix status. connection, video/audio crosspoint, edid, scaler, hdcp, network status r fw version! Displays the firmware version.
- Page 15 Enables or disables the stream for Enable out 1 stream s out y stream z! output y. y=0~4, (0=all), z=0~1, Disable out 1 stream (0=disabled, 1=enabled). Displays the stream status for r out y stream! Enable out 1 stream output y. y=0~4, (0=all). Sets the HDMI®...
- Page 16 12. 4K2K30_444,HD Audio 7.1 13. 4K2K60_420,Stereo Audio 2.0 14. 4K2K60_420,Dolby/ DTS 5.1 15. 4K2K60_420,HD Audio 7.1 16. 4K2K60_444,Stereo Audio 2.0 17. 4K2K60_444,Dolby/ DTS 5.1 18. 4K2K60_444,HD Audio 7.1 19. 4K2K60_444,Stereo Audio 2.0 20. 4K2K60_444,Dolby/ DTS 5.1 HDR 21. 4K2K60_444,HD Audio 7.1 HDR 22.
- Page 17 Displays the current network Subnet Mask: r subnet! subnet mask. 255.255.255.0 Set gateway: 192.168.1.1 Please use "s net reboot!" command or s gateway xxx.xxx.xxx. repower device to apply new config! Sets the network gateway. xxx! DHCP on, Device can't config gateway, set DHCP off first.
-
Page 18: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 19: Notice For Ised Canada
, Blackbird ™ , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 20 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
